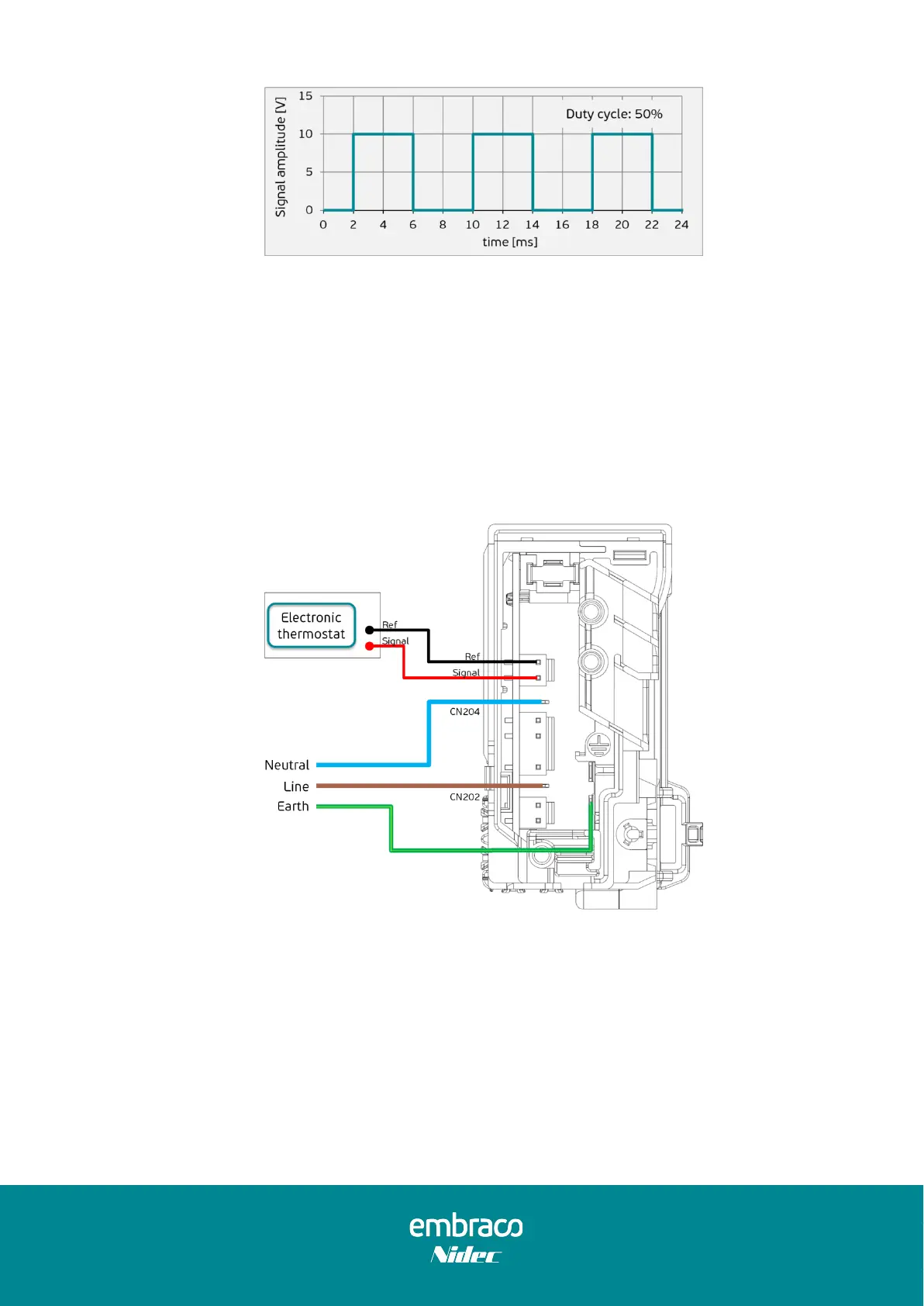

Figure 18 – Frequency signal example
4.1.2. Frequency control connection and electrical schematic
The thermostat is connected to the Inverter through the CN209 connection, using a
communication cable (Figure 19).
Figure 19 – Frequency control connection
28
