Nidec Unidrive M702 Control Getting Started Guide

16 Unidrive M702 / HS72 Control Getting Started Guide
Issue Number: 4
4.2 Keypad / display
4.2.1 Understanding the display
The keypad can only be mounted on the drive.
4.2.2 KI-Keypad
The KI-Keypad display consists of two rows of text. The upper row shows the drive status or the
menu and parameter number currently being viewed. The lower row of the display line shows the
parameter value or the specific trip type. The last two characters on the first row may display special
indications. If more than one of these indications is active then the indications are prioritized as
shown in Table 4-1.
When the drive is powered up the lower row will show the power up parameter defined by Parameter
Displayed At Power-up (11.022).
Table 4-1 Active action icon

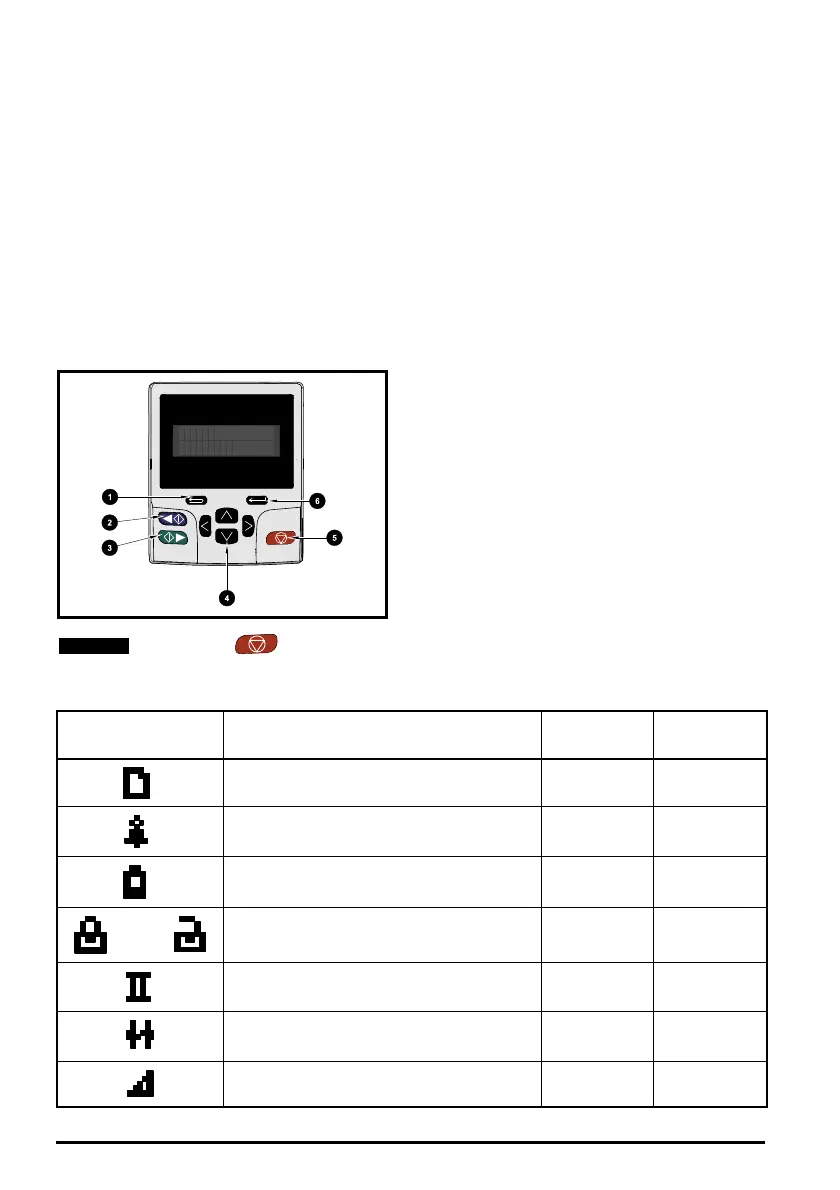

Figure 4-1 KI-Keypad
1. Escape button
2. Start reverse (Auxiliary button)
3. Start forward
4. Navigation keys (x4)
5. Stop / Reset (red) button
6. Enter button
The red stop button is also used to reset the drive.
Active action icon Description
Row
(1=top)
Priority
in row
Accessing non-volatile media card 1 1
Alarm active 1 2
Keypad real-time clock battery low 1 3
or
Drive security active and locked or
unlocked
14
Motor map 2 active 2 1
User program running 3 1
Keypad reference active 4 1
NOTE
