3.2 Installation and Removal of Blade

Thoroughly read “1.2 General Precautions” before installing and removing the blade.

3.2.1 Installation of Blade

Put on gloves.

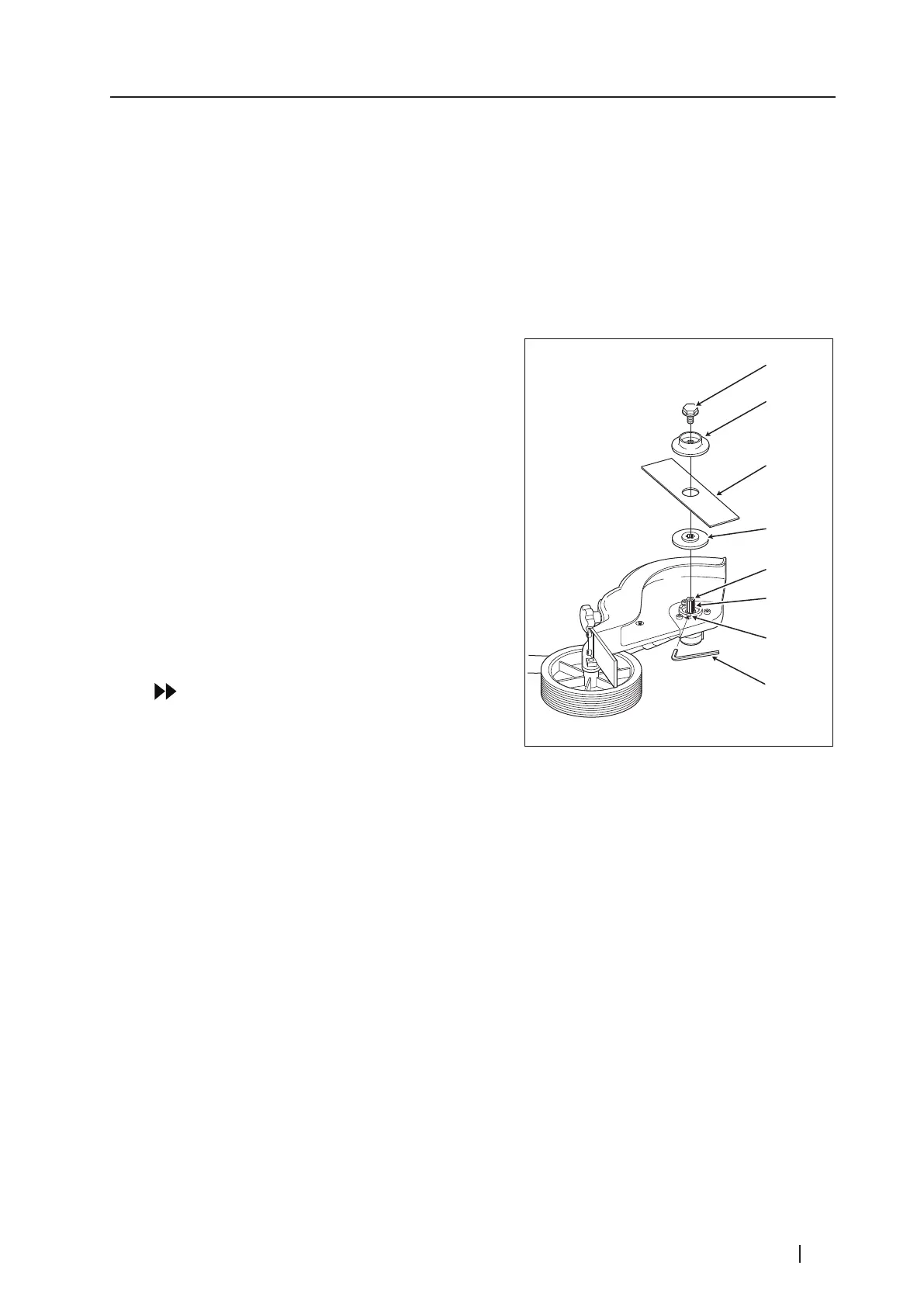

Put the blade guard [1], the blade [2]

and the blade cap [3] on the output

shaft [4].

Insert the L type wrench [5] into the

groove [6] for xing gear case and

rotate the blade mounting bolt [7]

counterclockwise to tighten.

Blade mounting bolt tightening torque:

16.7 to 19.6 Nm

Note

● The directions for loosening/tightening the

blade mounting bolt [7] are opposite to the

ones of general nuts.

3.2.2 Removal of Blade

Wear gloves, and remove the blade in the opposite way of the installation of the blade.

[3]

[2]

[1]

[4]

[6]

[5]

[7]
