JAA79471-R.3678.A
- D10 AF-S VRDX18-200/3.5-5.6G -

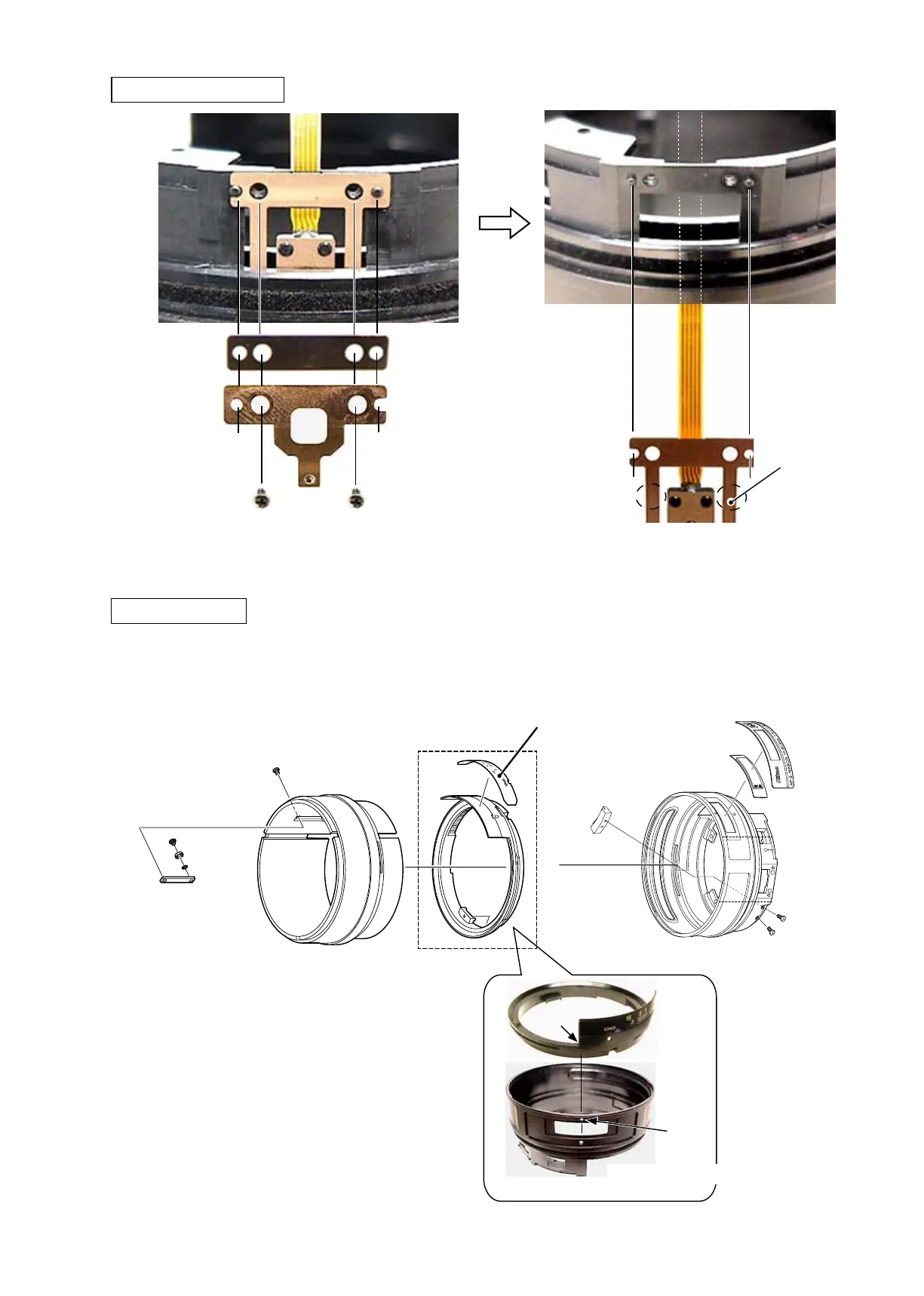

GMR sensor FPC unit
Zoom index ring
Take out the screw (#144) and remove the lens zoom control key.
Rotate the zoom ring by slightly exceeding its index "18-200", and remove the zoom ring from the zoom
index ring.
GMR sensor
FPC unit
Rotate so that the edge of "∞" side of the distance
scale sticker is aligned with the index of the
zoom index ring, and remove the gear unit.
Take out two screws (#112), and remove the block
(#155).
Caution:
When the GMR sensor FPC unit is removed, do
NOT bend the area of doted lines.
Distance scale sticker
Gear unit
Gear unit
Zoom index ring
Zoom ring
Zoom control key
#144
Index
Edge
Zoom index ring
#76
Name plate
#112×2
#155
#122×2
#130
#97
INC
