Nikon AF-S VR DX Zoom Nikkor 18-200/3.5-5.6G ED User Manual

JAA79471-R.3678.A
- A31 ･ AF-S VRDX18-200/3.5-5.6G -
E terminal
H terminal
E terminal
H terminal
Servo driving time
オシロスコープのプローブをＡＦ－Ｉ通信ボックス（J15306-1）のＥ , Ｈ端子に接続する。
各サーボ駆動量を選択し、それぞれのサーボ駆動時間が規格内であること。
注 意：点検中にＭＦ環を回転させると波形が異常値になるので、点検中はＭＦ環に触れないこと。
(4)

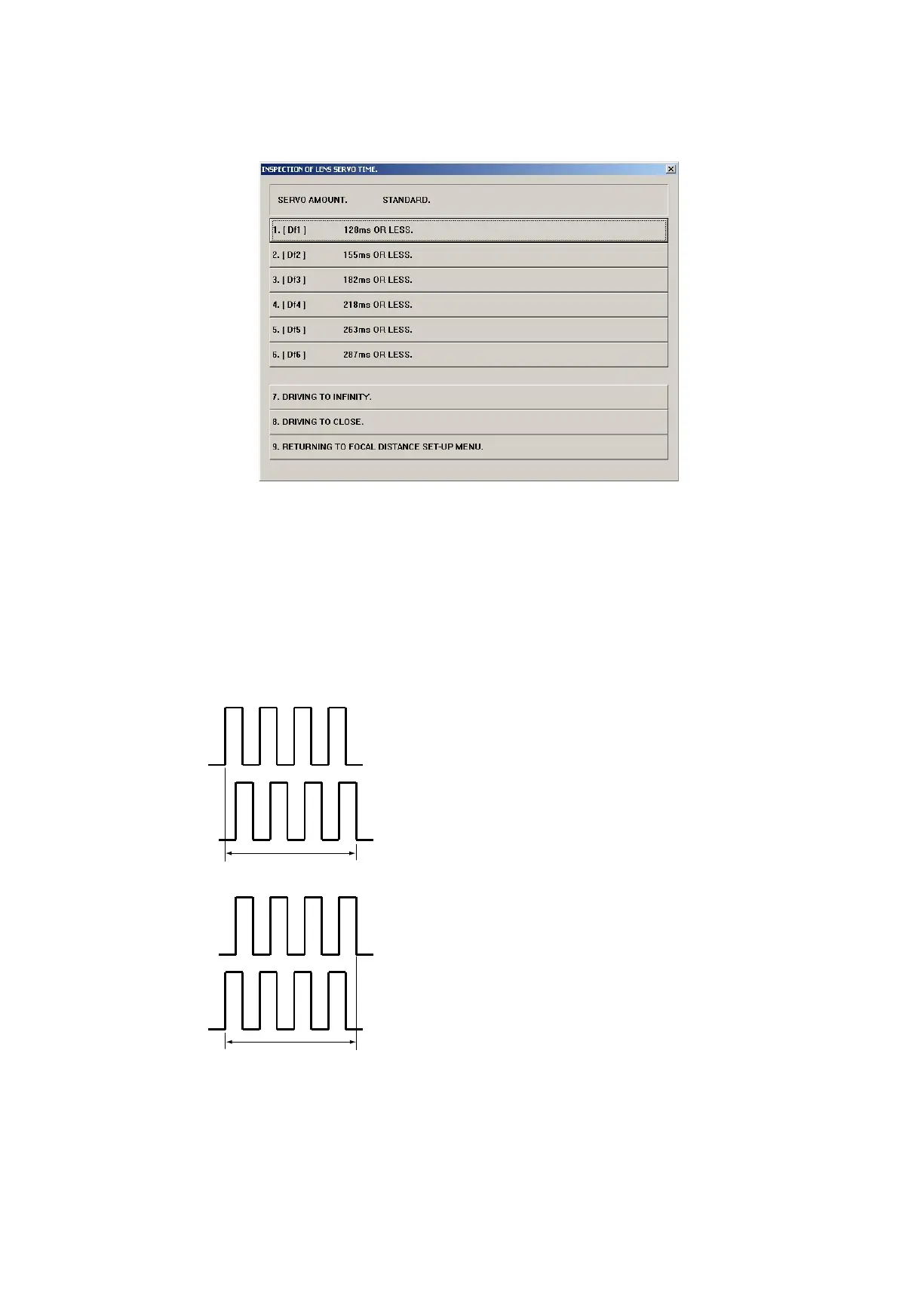

Inspection of lens-servo time
Make this inspection on both focal length 18mm (W) and 200mm (T).
Select the servo driving amount respectively. Each lens-servo drive time must be within the standard.
Caution
：
If the MF ring is rotated during inspections, the waveform shows an abnormal value. Do NOT touch
the MF ring during inspections.
●Oscilloscope setting
V/Div
：
5V
Coupling
：
DC
Time/Div
：
20 m Sec
Trigger Mode
：
SGL (S)
Trigger Coupling
：
DC
Trigger Source
：
CH1
※ The waveforms of E and H terminals have the
forms for going up for start and going down for
start.
Servo driving time
INC
