Nikon AF-S VR DX Zoom Nikkor 18-200/3.5-5.6G ED User Manual

JAA79471-R.3678.A
- A1 ･ AF-S VRDX18-200/3.5-5.6G -

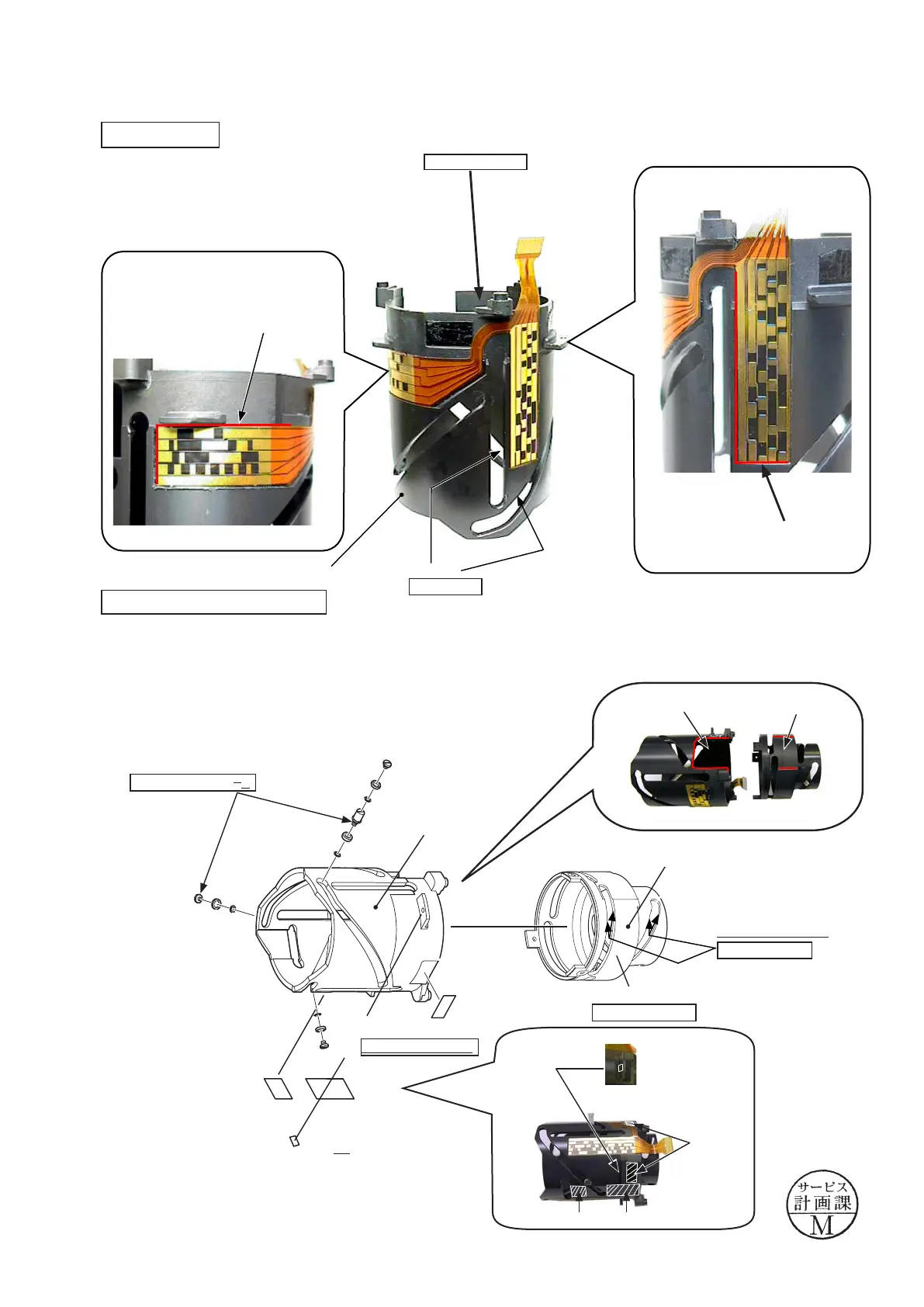

2. Assembly / Adjustment
①
Align the concave portion of the 3rd-4th lens-group cam ring with the cutout of the xed tube, and assemble
them.
②
Attach each roller that ts the grooves.
③
Attach each tape.
Reference position for attachment
Zoom encoder
Grease: MZ-800S
Apply to the overall surface of the inside.
Distance encoder
Fixed tube
To cam groove
Encoder FPC
#149
#150
#146×3
#83
#111
#102
#103
#82
Adhesive: Lockend BR
#82
#84 A-D
A-F
#102
#103 A-H
#82
#99
#94 A-D
#82
Fixed tube
Grease: MZ-800S
Apply to the sliding surface with Fixed tube
3rd-4th lens-G cam ring
#111
#150
#149
#146×3
Cutout
Concave portion
Grease: I-40
3rd-4th lens group cam ring
Reference position for attachment
△（
Revision
）
Adhesive: Lockend R
△（
Addition
）
△（
Addition
）
Changed page
△×
5 October.20.2006
Cam groove× 6 places
△（
Addition
）
△（
Addition
）
Grease: GP-1RS
INC
