(CCD-face position)
(3) Writing aberration compensation data
① Prepare a camera (D100). Set the "Exposure mode" to "A" for full aperture and "Focus mode" to "S".
On the shooting menu, set the "Image quality mode" to "FINE", "Image size" to"L", "WB" to "Preset",
and "ISO" to "200".

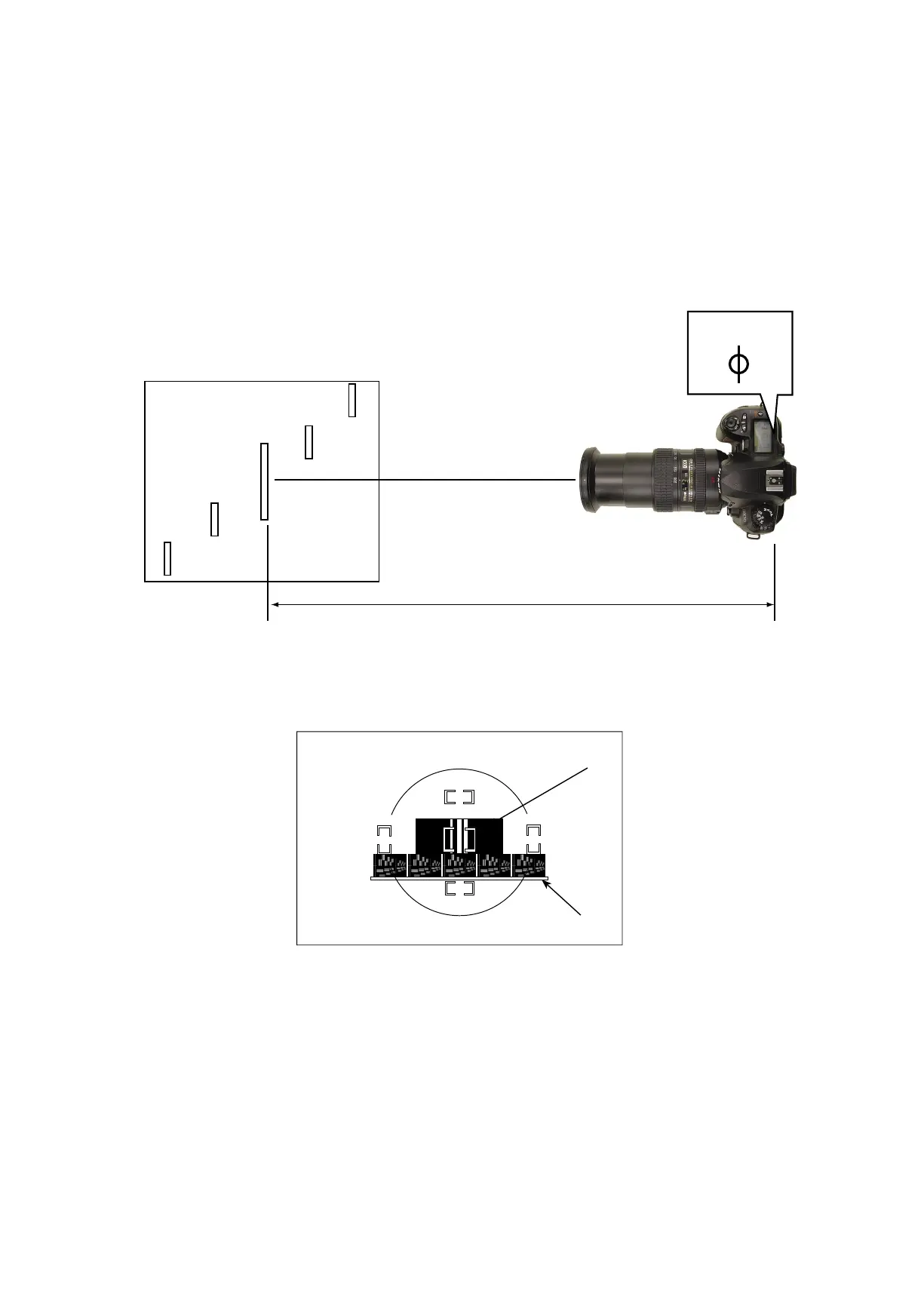

② Set up the camera (D100), in which the lens to be inspected is t, on the tripod
. Set the focal length to
200 mm, and the distance between the test chart and camera (CCD face) to 8 m ±2 cm.
8 m
±
2 cm
（
Test chart
）
③
As shown below, set the center of the focus area on the chart within viewnder.
Target chart
(Within viewnder)
Resolution chart
④ Connect the PC and camera via USB cable.
(Camera setting: Mass storage)
⑤ Start the adjustment software (LWM.exe).
