Nikon AF-S VR DX Zoom Nikkor 18-200/3.5-5.6G ED User Manual

JAA79471-R.3678.A
- A2･ AF-S VRDX18-200/3.5-5.6G -
・

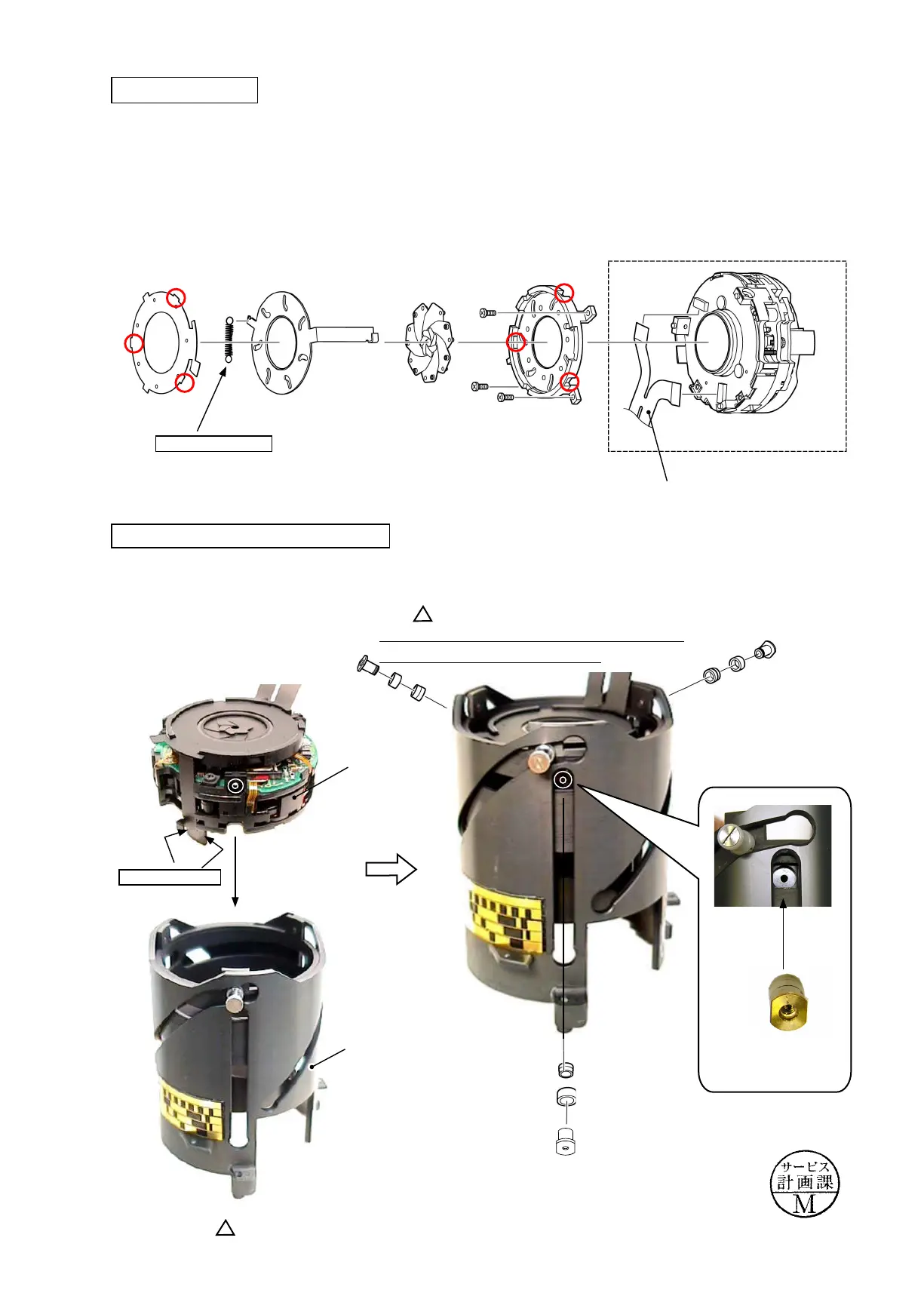

Fit the three convex portions of the retaining plate into the three holes of the blade mounting plate in the order
of
①
and
②
.
Adhesive: Screwlock
①
①
②
VR unit
#148×3
#147×3
#68×3
①
Assemble the VR unit into the xed tube.
Fig.1
Grease: MZ-800S
Installation of VR unit into Fixed tube
②
Insert the three nuts (#68) at the position
shown in Fig.1.
Aperture blade unit
Retaining plate
Blade mounting plate
Blade×7
Blade actuating plate
VR FPC unit
VR unit
Fixed tube
Changed page
（Addition）
× 1
March.17.2006
Caution) The smaller diameter side of the stepped
rollers (#148 X 3) comes to VR unit.
