Nikon coolpix7900 - Page 19

VAA46003-R.3659.A
- D13 ･ E7900 -
CCD
FINDER UNIT
・ Remove the Light-shiled sponge (741).
・ Remove the two screws (813).
・ Remove the CCD PCB.
・ The CCD rubber (609) can be removed.
・ The LPF (8) can be removed.
・ The LPF mask (624) can be removed.
・ Remove the three screws (815).
・ The finder unit (B501) can be removed.

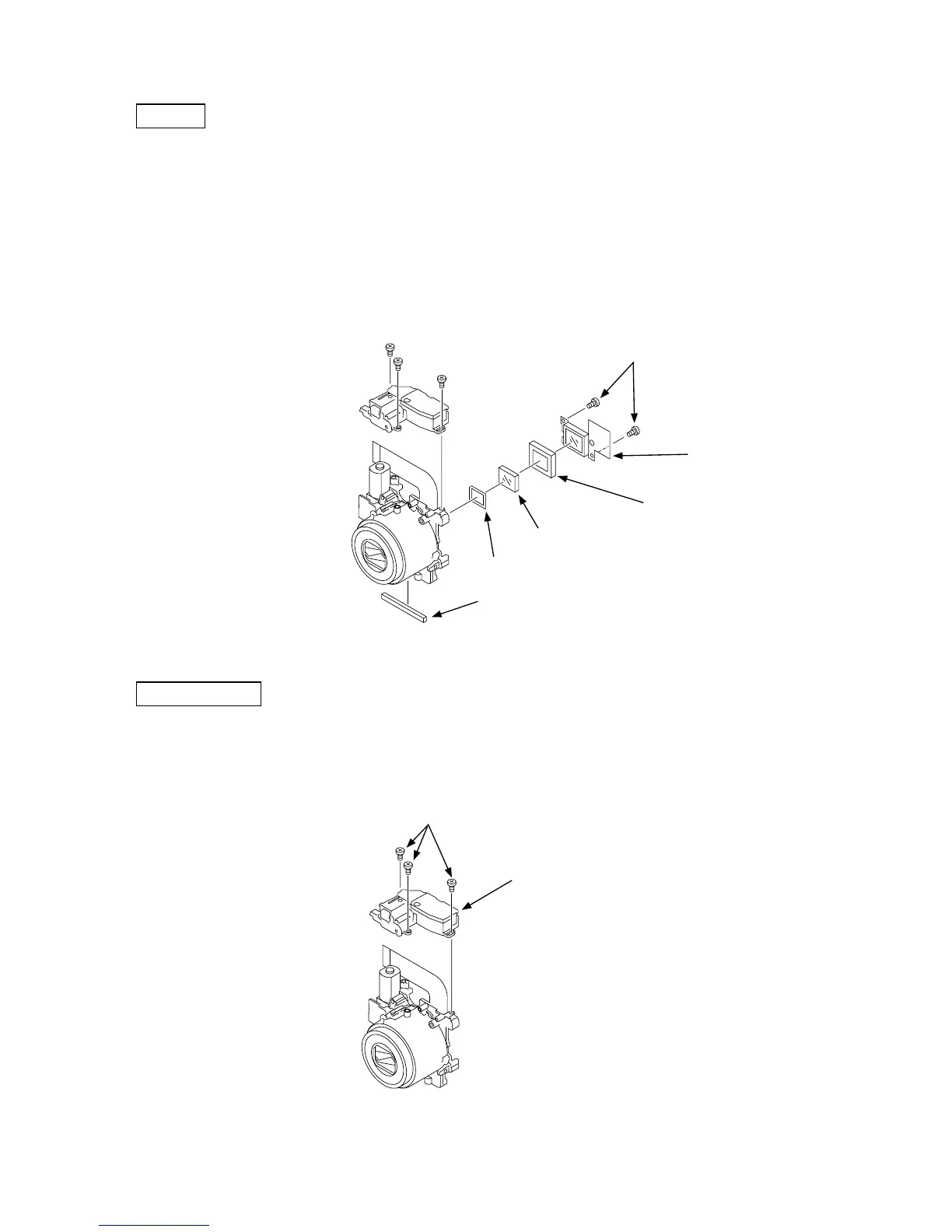

Light-shiled sponge (741)
Screws (813)
CCD rubber (609)
LPF (8)
LPF mask (624)
CCD PCB
Screws (815)
Finder unit (B501)
