VAA46003-R.3659.A
- D16 ･ E7900 -

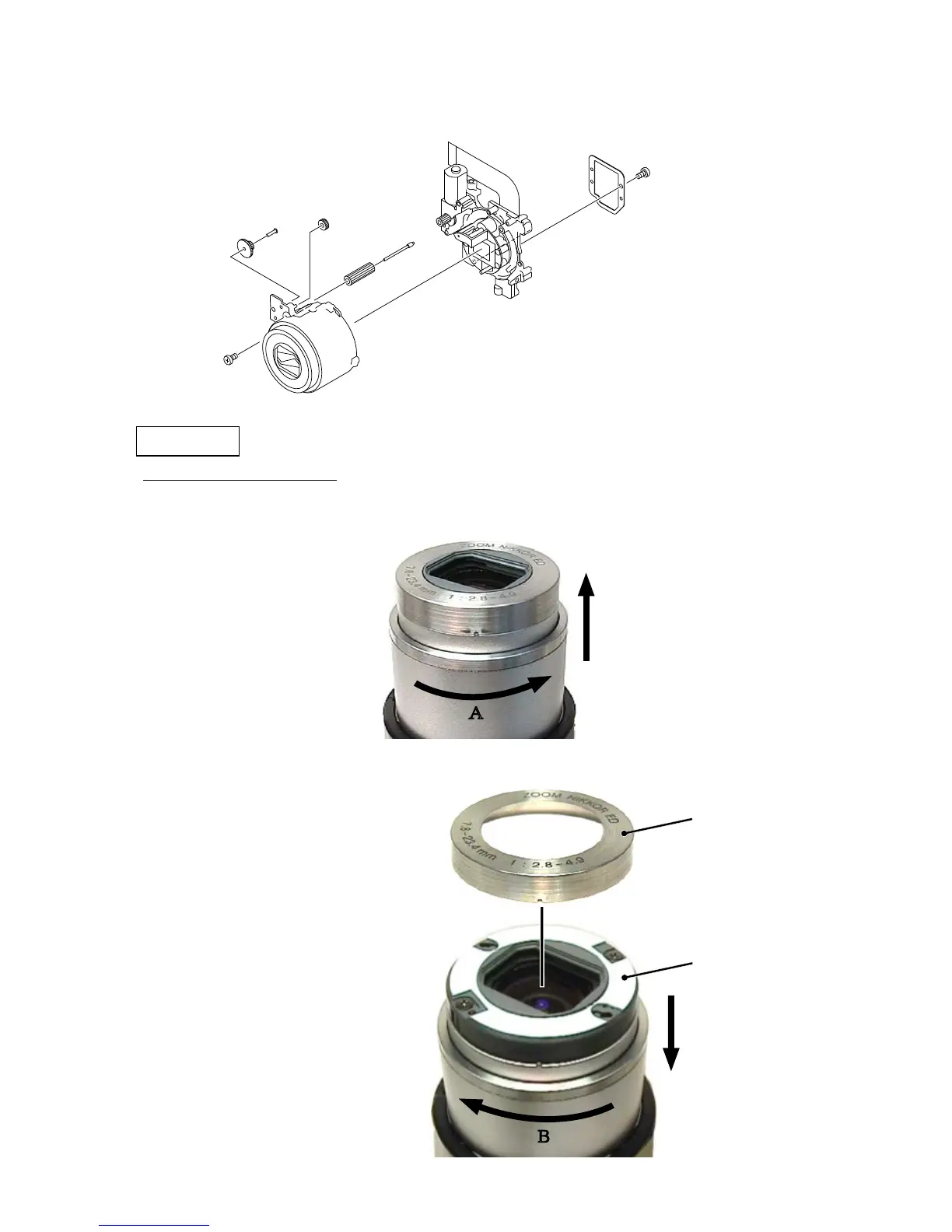

・ Disassembly of zoom gear
Barrier unit
・ Turn the cam barrel in the arrow "A" direction and extend the lens barrel.
・ Take off the barrier cover ring #666 from the double adhesive tape #697.
#681
#644
#646
#648
#645
#649
① Remove the screw #681 from the CCD mount unit. Then, remove the FFD
adjusting washer #608.
② Remove the gears #644, #645 and #646 and the shafts #648 and #649.
#608
#681
1. Disassembly of barrier cover ring
・ Turn the cam barrel in the arrow "B"
direction and retract the lens barrel.
#666
#697
To Next Page
