VAA46003-R.3659.A
- D18 ･ E7900 -

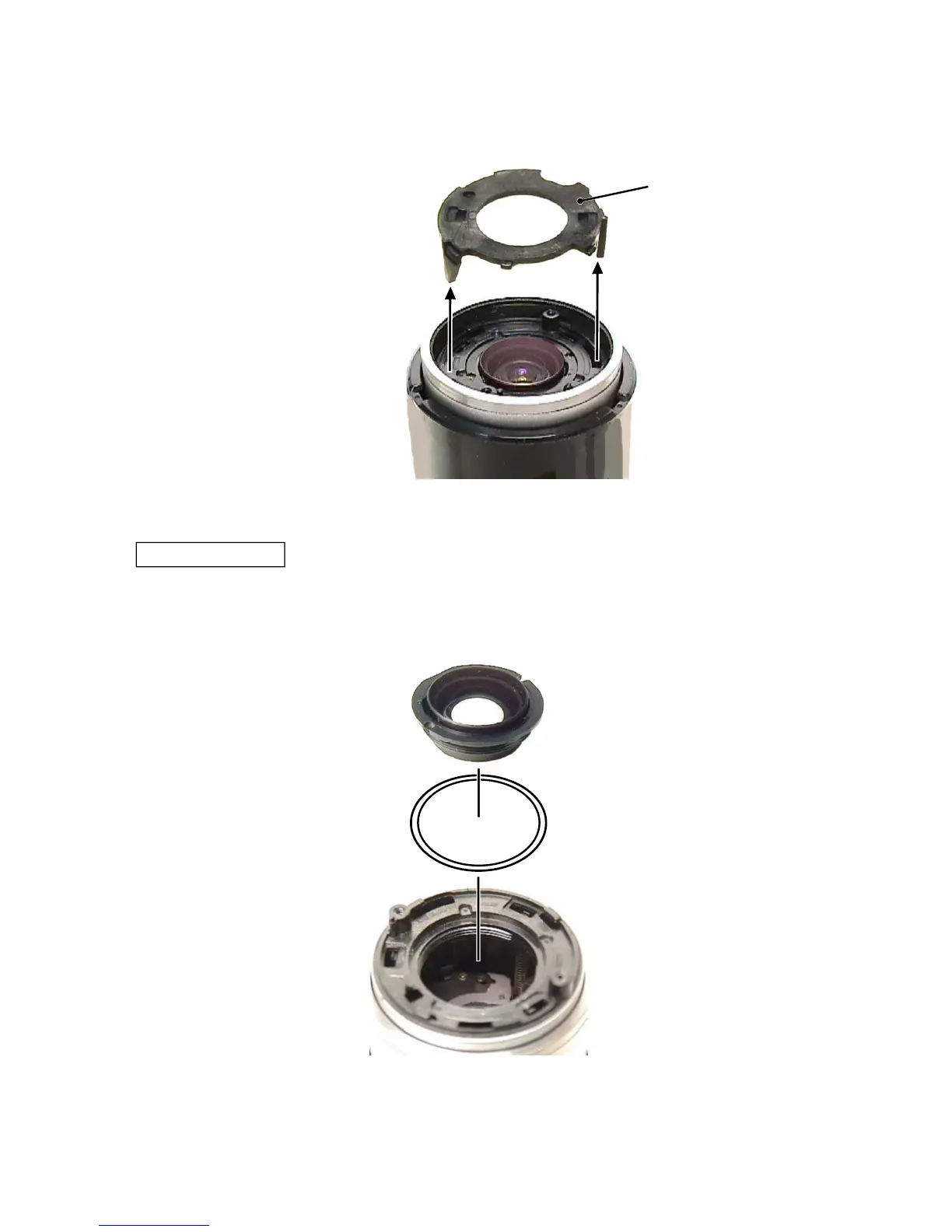

・ Remove the barrier turn plate #663.
#663
・ Remove the 1st lens group B601 and the partition washer #627 from the 1st lens group barrel #615.
B601
#627
#615
1st lens group unit
