VAA46003-R.3659.A
- A14 ･ E7900 -

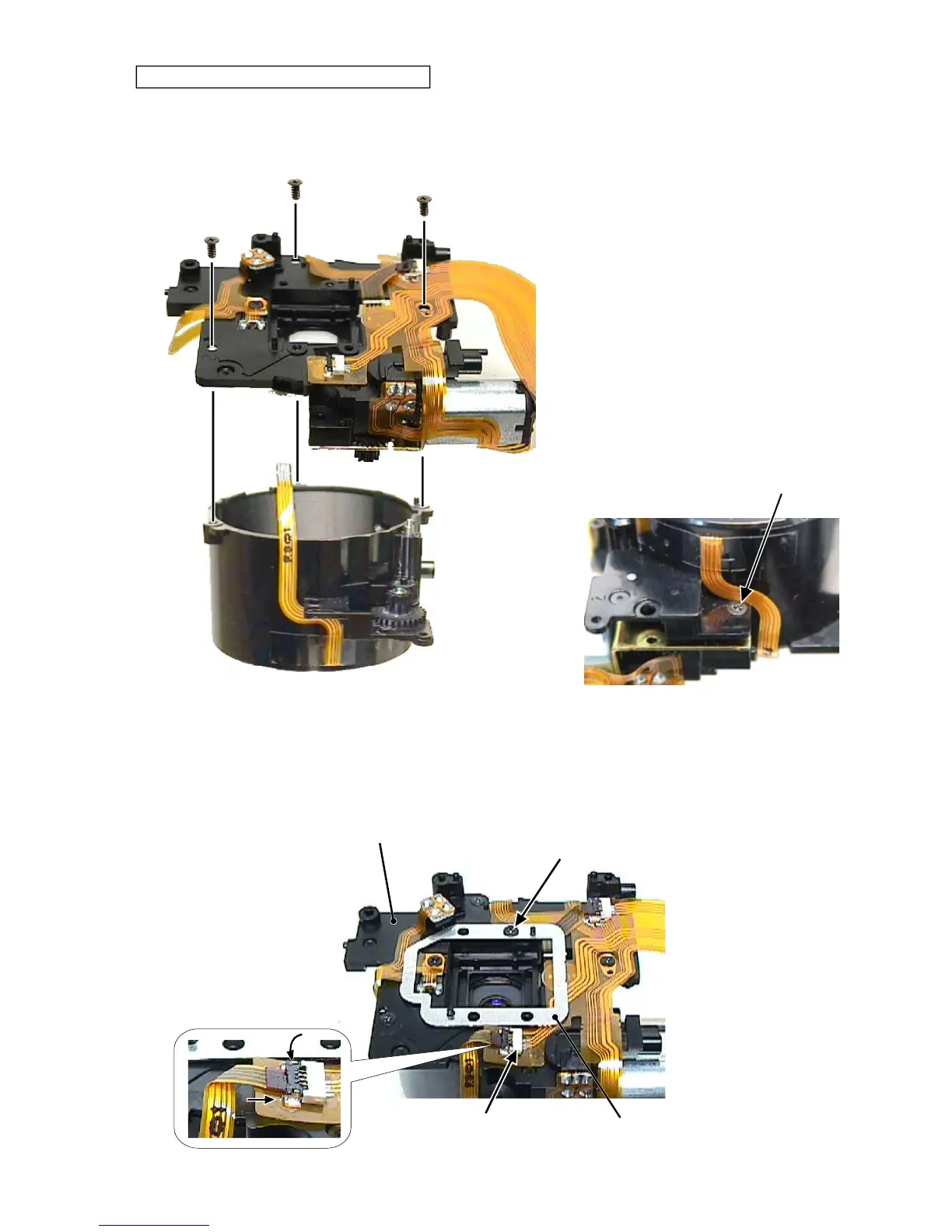

① Set the FFD adjusting washer #608 onto the CCD mount unit with the screw #681.
② Insert the shutter FPC into the connector and perform connection.
Note：When setting, be careful not to catch the FPC.
・ Set the CCD mount unit onto the front lens group barrel unit and fix it with the three screws #681 and another screw
#681, which is inserted from the cover ring side.
#681
#681 × 3
Front lens group barrel
unit
CCD mount unit
Cover ring side of lens barrel
Note：Don't catch the FPC with the tips of tweezers.
Front lens group barrel unit/CCD mount unit
Connector
#608
CCD mount unit
#681
②
To Next Page
