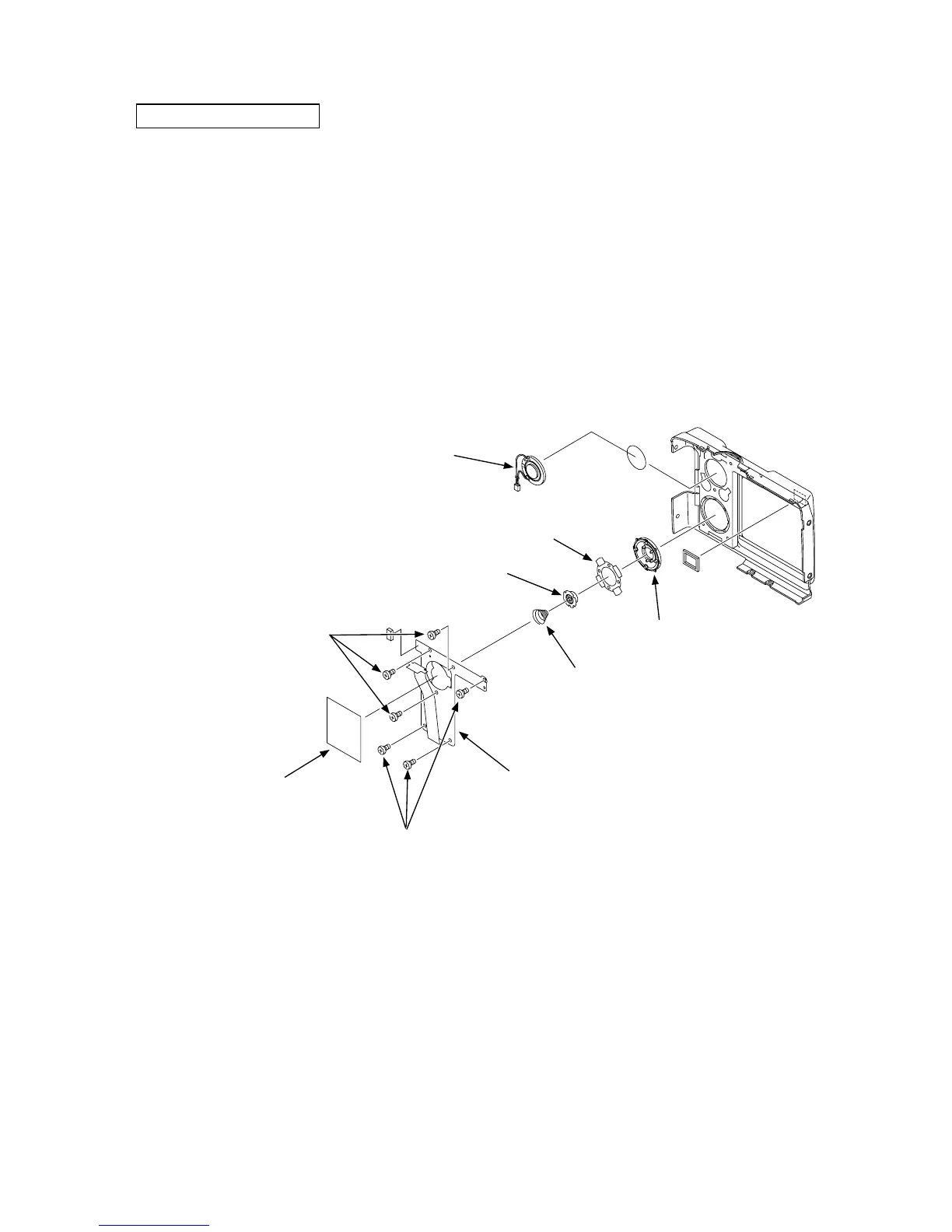

Assembly of rear cover
・ Set the multi-selector (242).
・ Fit the switch rubber (244) to the convex section and set it.
・ Set the determining button (241).
・ Set the speaker (1025) with the cord facing downward.
・ Set the determining button spring (245).
・ Set the rear SW unit (1018).
・ Fit the rear SW unit (1018) to the two convex sections.
・ Tighten the six screws (819).
・ Adhere the rear FPC insulating seal (719).
Multi-selector (242)
Switch rubber (244)
Determining button (241)
Speaker (1025)
Determining button spring (245)
Rear SW unit (1018)
Screw (819)
Rear FPC insulating seal (719)
Screw (819)
