Nikon D5100 Repair Manual

󲩎󲨺󲨹󲨫󲨩󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨪󲨭󲨦󲨹
󲨥󲨘󲨹󲨫󲨯 󳉗 󲨼󲨭󲨩󲨨󲨨󲨘󲨥
#13B
#281
#285×2
#3
#297A or #297B
#284
#280

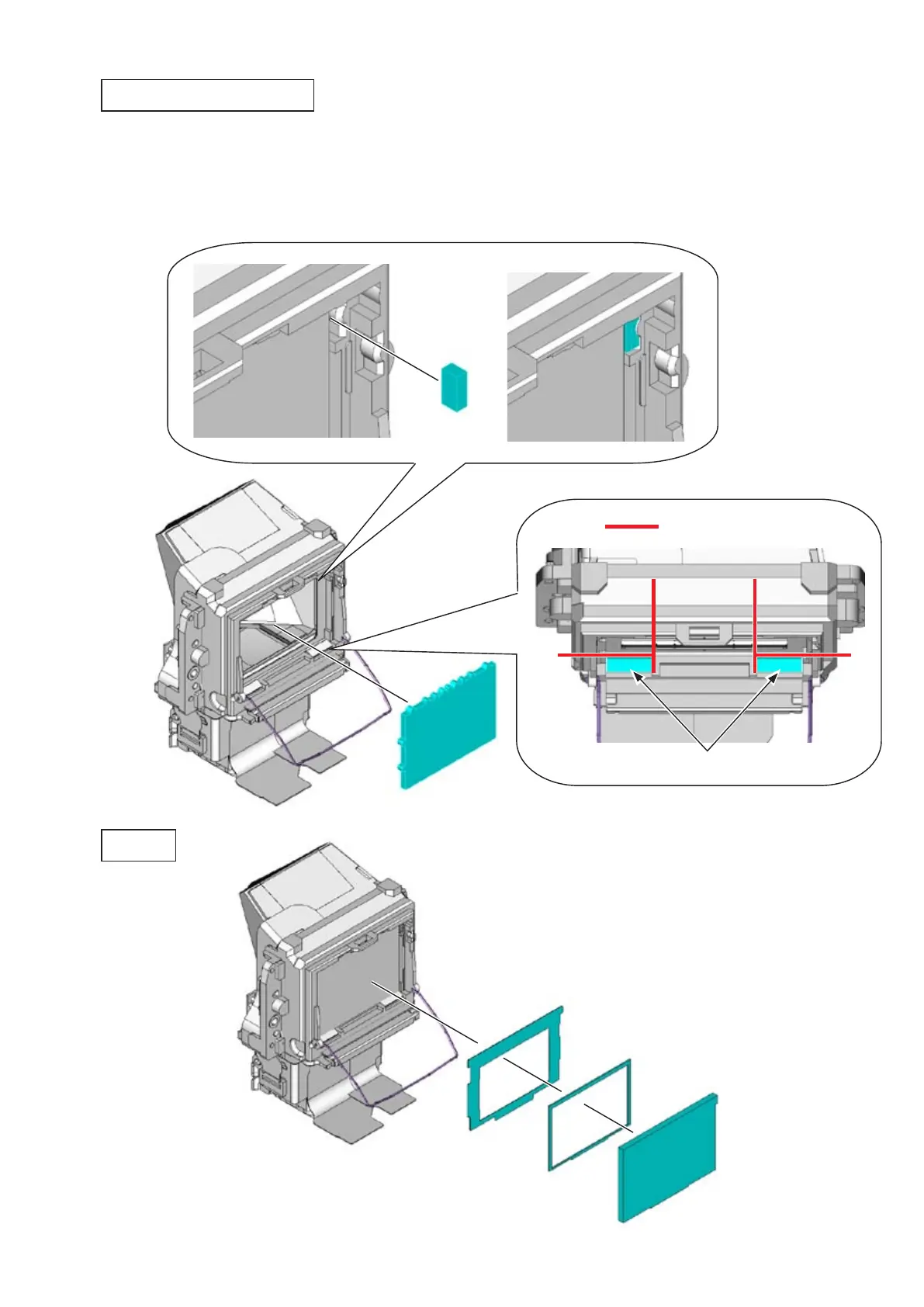

Super impose display plate
Mount the super impose display plate (#13B).
Attach the two rubbers (#285), and the other rubber (#281).
Caution: The super impose display plate (#13B) tends to be scratched easily, so do NOT wipe it out
with alcohol. If dusts are attached, blow them with a blower.
•
•
Attaching position
Screen
Surface WITH irregularities must
face the prism side, while surface
WITHOUT irregularities must face
front body.
