Nikon D5100 Repair Manual

󲩎󲨺󲨹󲨫󲨩󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨪󲨭󲨦󲨹
󲨥󲨘󲨹󲨬󲨩 󳉗 󲨼󲨭󲨩󲨨󲨨󲨘󲨥
TA-0015 (13x28)
[Orange]
[Blue]
#631×3
#24
#6004

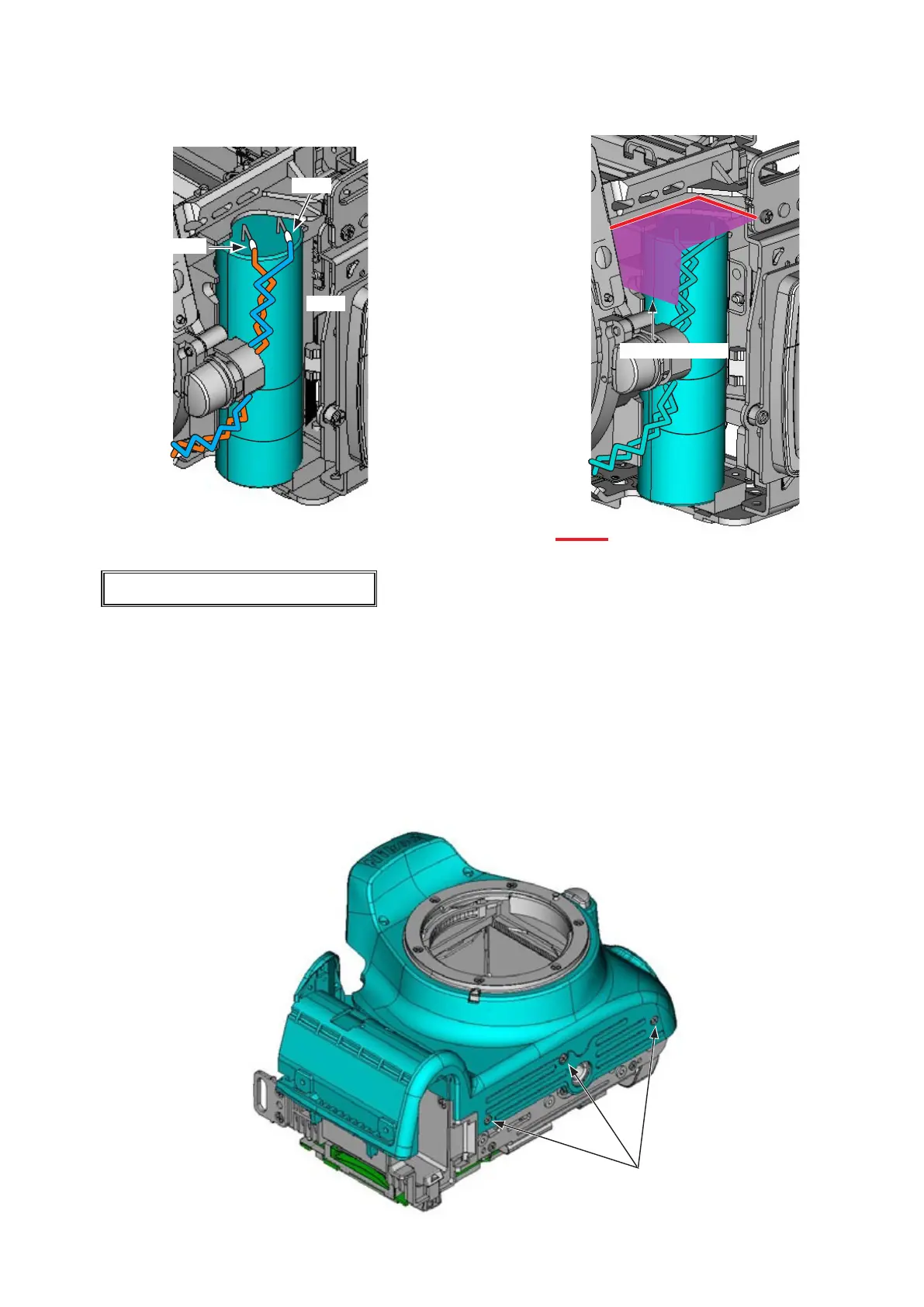

Solder the two wires on the main condenser (#6004).
Attach the tape [TA-0015 (13×28)].
•
•
Attaching position
Note: As for this product, make only the inspection for the AE-CCD positioning.
Caution: If the secondary rechargeable battery of the TOGO PCB has no capacity left, it may be
impossible to communicate with the PC. In this case, mount the top cover and rear cover,
and then set "time zone" and "date and time" on the menu.
Mount the front cover (#24), and tighten the three screws (#631) (for temporary assembly).
Refer to "Inspection and adjustment for AE-CCD positioning" of ADJUSTMENT Separate Volume
②
for details.
•
•
Inspection for AE-CCD positioning
