Nikon eclipse Ci-L User Manual

Chapter 3 Assembly
59
Chapter 3
Assembly
3

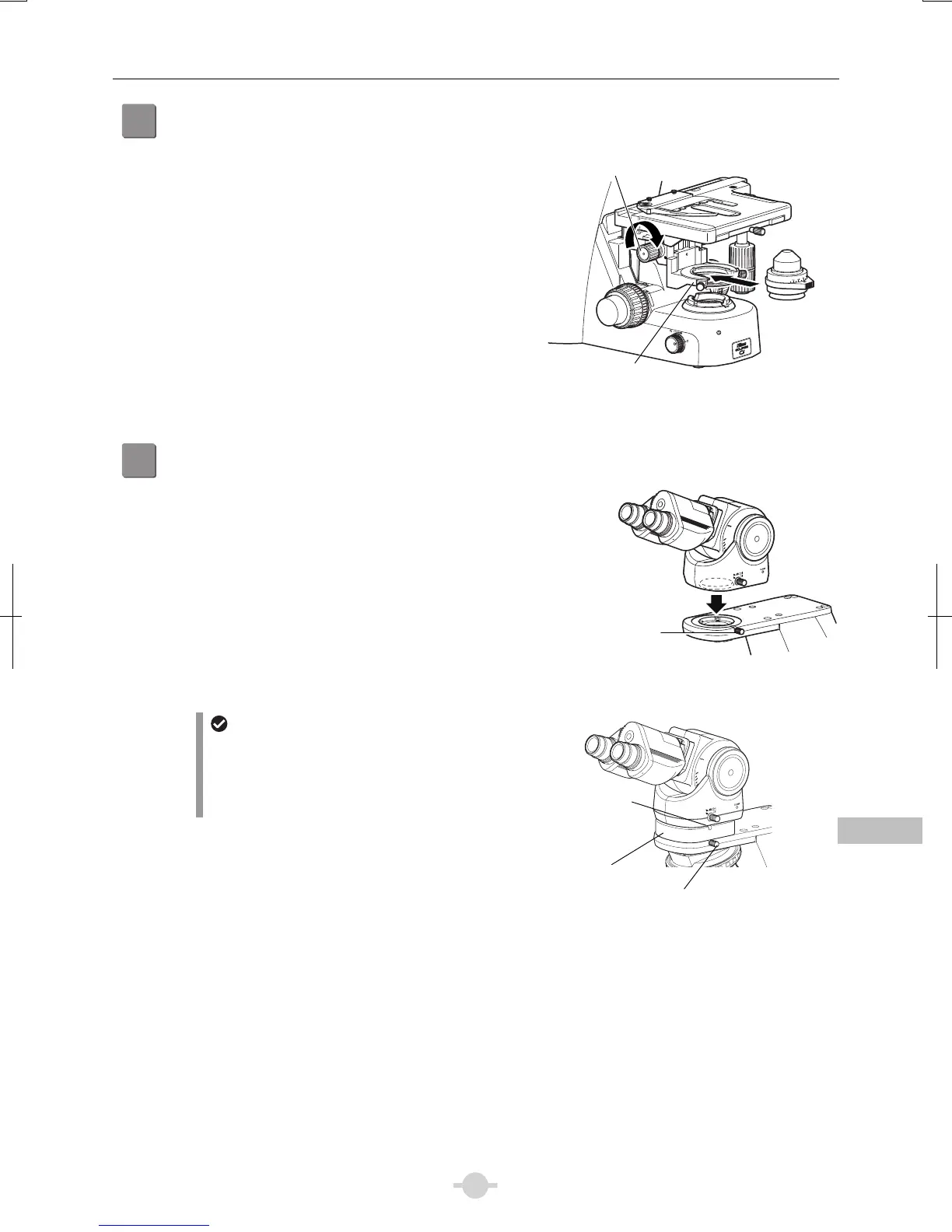

Attaching the condenser
(1) Turn the coarse focus knob until the elevating
section is brought to the upper limit.
(2) Turn the condenser focus knob until the condense
r
holder reaches the bottom.
(3) Insert the condenser, adjust it to face the front, then
secure it in place with the tool.
(4) Turn the condenser focus knob until the condense
r
holder reaches the top.
P
O
WER
TORQUE
CLAMP
0
90
80
70
60
50
40
30
20
10
Attaching the condenser
4
Attaching the tube
Place the tube on the microscope arm and secure it by
tightening the clamp screw on the arm.
Attaching the tube
Using the eyelevel riser
Place the eyelevel riser on the microscope arm and
secure it by tightening the clamp screw on the arm.
Attach the tube on the eyelevel riser and secure it
by tightening the clamp screw on the eyelevel rise
r
using a tool.
Attaching the eyelevel riser
Condenser focus knob
Condenser clamp screw
(use a tool)
Tube clamp
scre
w
Eyelevel rise
r
Tube clamp screw
(use a tool)
Eyelevel riser
clamp screw
