Chapter 4 Microscopy (Detailed Procedure)
61
4
Using the Working Distance for Focusing
Each objective has its working distance indicated on its side. The working distance is the distance
between the front of the objective and the specimen when the specimen image is in focus. If you
have difficulties in focusing with the standard procedure described on p. 56, try one of the
following methods using the working distance for focusing.
Method 1:
While looking at the microscope from the side, rotate the coarse focus knob to bring the specimen
close to the objective. When the distance between the specimen and the front of the objective
becomes slightly smaller than the working distance, take your hands off the coarse focus knob.
The specimen is now almost in focus. Look into the eyepieces and rotate the fine focus knob in
the direction that lowers the stage.
Method 2:
Swing the 40x objective into the optical path. While looking at the microscope from the side,
rotate the coarse focus knob until the specimen almost touches the objective (about 0.5 mm
apart from the front of the objective). The specimen is now almost in focus. Switch to the 10x
objective, look into the eyepieces, and rotate the fine focus knob slightly to find the focal point.
Be careful not to hit the objective with the specimen.
11
Turning Off the Lamp
Turning off the power switch (turn to “
{
”) switches off the lamp.
When storing the microscope:
• Unplug the power cord.
• Wait until the field lens unit is cool enough to touch.
• Return the binocular part to its lowest position.
• Cover the microscope with the vinyl dust cover. (Before covering the microscope, make sure
that the field lens unit is cool enough to touch.)
• When carrying the microscope, hold it at its upper rear and lower front ends.

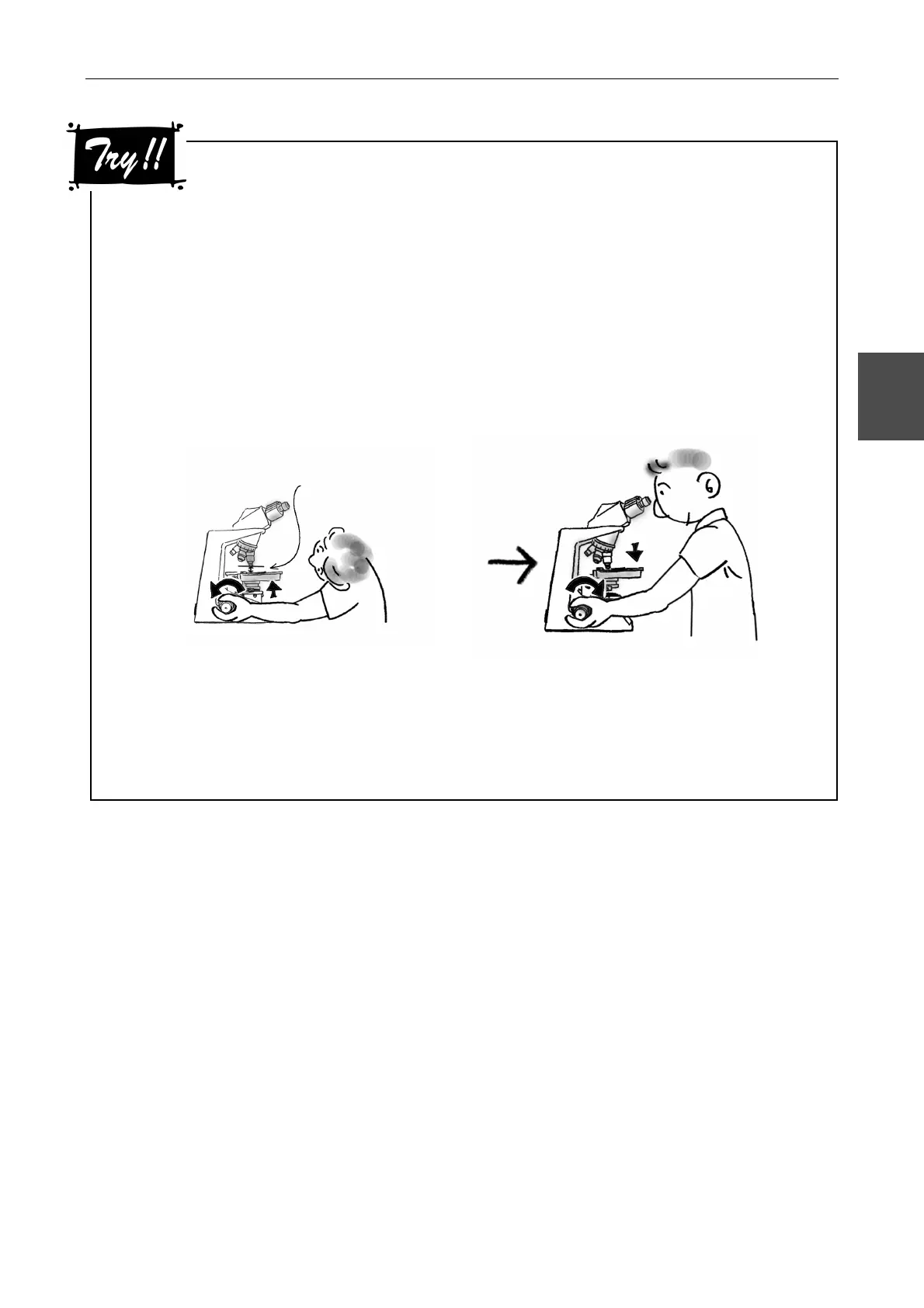

Lower the stage
with the fine
focus knob to
find the focal
point.
Raise the stage until
this distance is
slightly smaller than
the working distance.
To Next Page
