Nikon eclipse E200 User Manual

Chapter 6 Assembly
2 Assembly of Additional Components
71
6

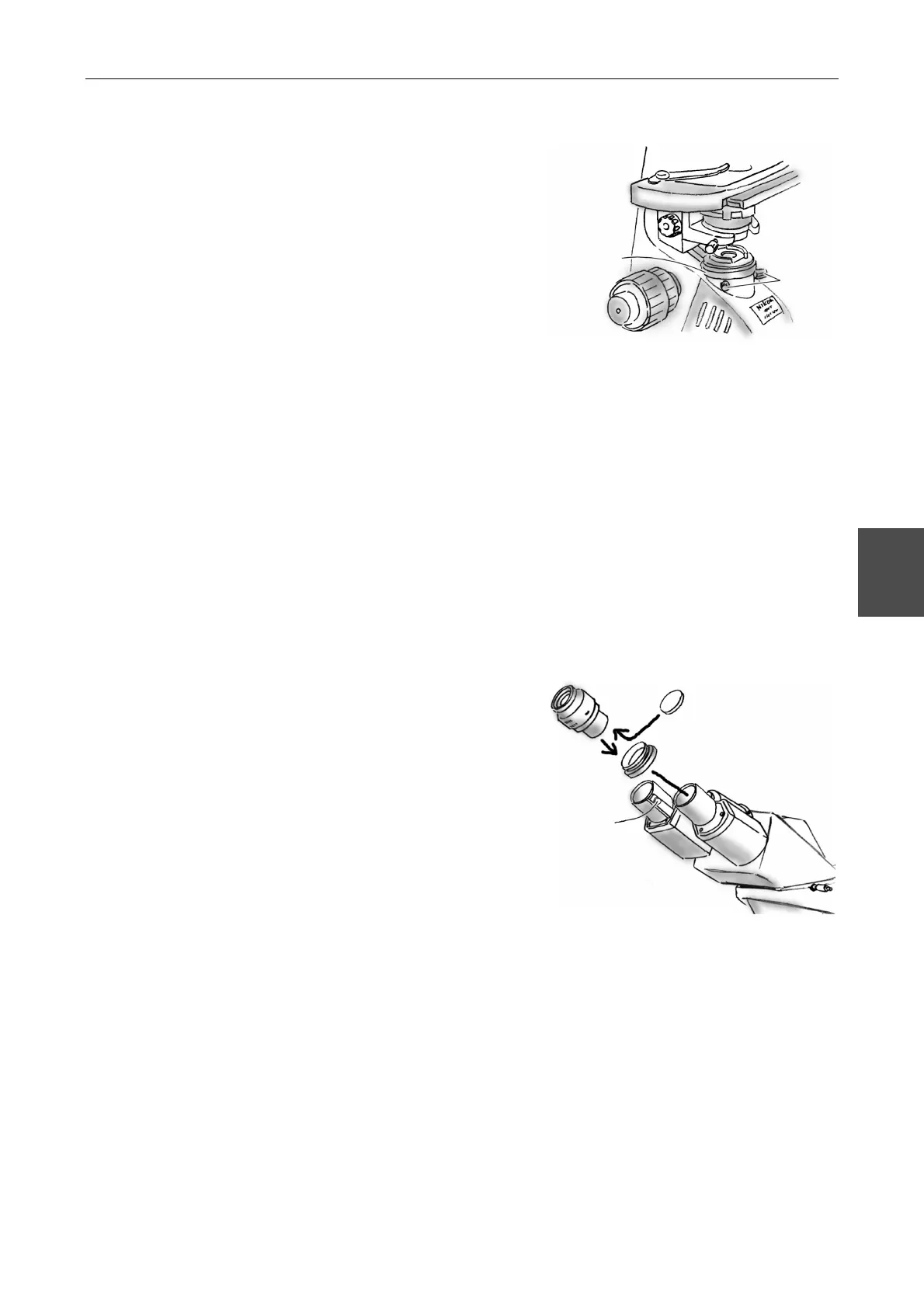

(7-7) Center the field diaphragm image in
the viewfield of the eyepiece by
manipulating the centering screws.
Centering is easier to perform if the
size of the field diaphragm image is
adjusted so that it is slightly smaller
than the viewfield.
2
Objectives
Objectives are attached to the microscope before shipment.
When replacing an objective, remove the specimen from the stage and lower the stage. Remove
the objective holding it with both hands. Be careful not to drop the objective.
Screw a new objective into the revolving nosepiece. Set the objectives in such an order that the
objective magnification increases as the revolving nosepiece is turned clockwise (as viewed from
the top of the microscope).
3
Specimen Holder
The specimen holder is attached to the stage before shipment.
When removing the holder, loosen the two hexagonal socket head bolts furthermost from the
specimen using the hexagonal wrench provided.
4
Eyepiece and Eyepiece Pointer
The 10x eyepieces are attached to the eyepiece
tube before shipment. When removing an
eyepiece, loosen the eyepiece set screws using the
hexagonal wrench provided and then remove the
eyepiece. When attaching an eyepiece, push the
eyepiece down to its full limit and tighten up the
set screw. Be careful not to tighten too hard.
When changing to a 15x eyepiece (optional), be
sure to change both the right and left eyepieces
together. The right and left eyepieces should be of
the same magnification.
The eyepiece pointer (optional) serves as a
reference for pointing out the specimen. Attach the
pointer to one of the eyepieces. Rotate and remove
the viewfield ring from the eyepiece end. Attach
the eyepiece pointer to the eyepiece and then put
back the viewfield ring.
5
Other Accessories
For installation of other accessories such as the photomicrographic equipment, see the manual
provided for each product.
Eyepiece
set screw
Eyepiece
E
y
e
p
iece
p
ointer
Viewfield rin
g
Field
diaphragm
ring
Field
diaphragm
centering
screws

Nikon eclipse E200 Specifications

General

Type	Biological Microscope
Optical System	CFI60 Infinity Optical System
Objectives	4x, 10x, 40x, 100x (Oil)
Observation Method	Brightfield
Magnification	40x to 1000x
Focus	Coaxial coarse/fine focus knobs
Eyepieces	10x
Condenser	Abbe condenser
Power Supply	AC 100-240V
Eyepiece Tube	Binocular Tube, Inclination 30°
