Nikon eclipse E200 User Manual

Chapter 6 Assembly
3 Replacement of Consumable Materials
74
2

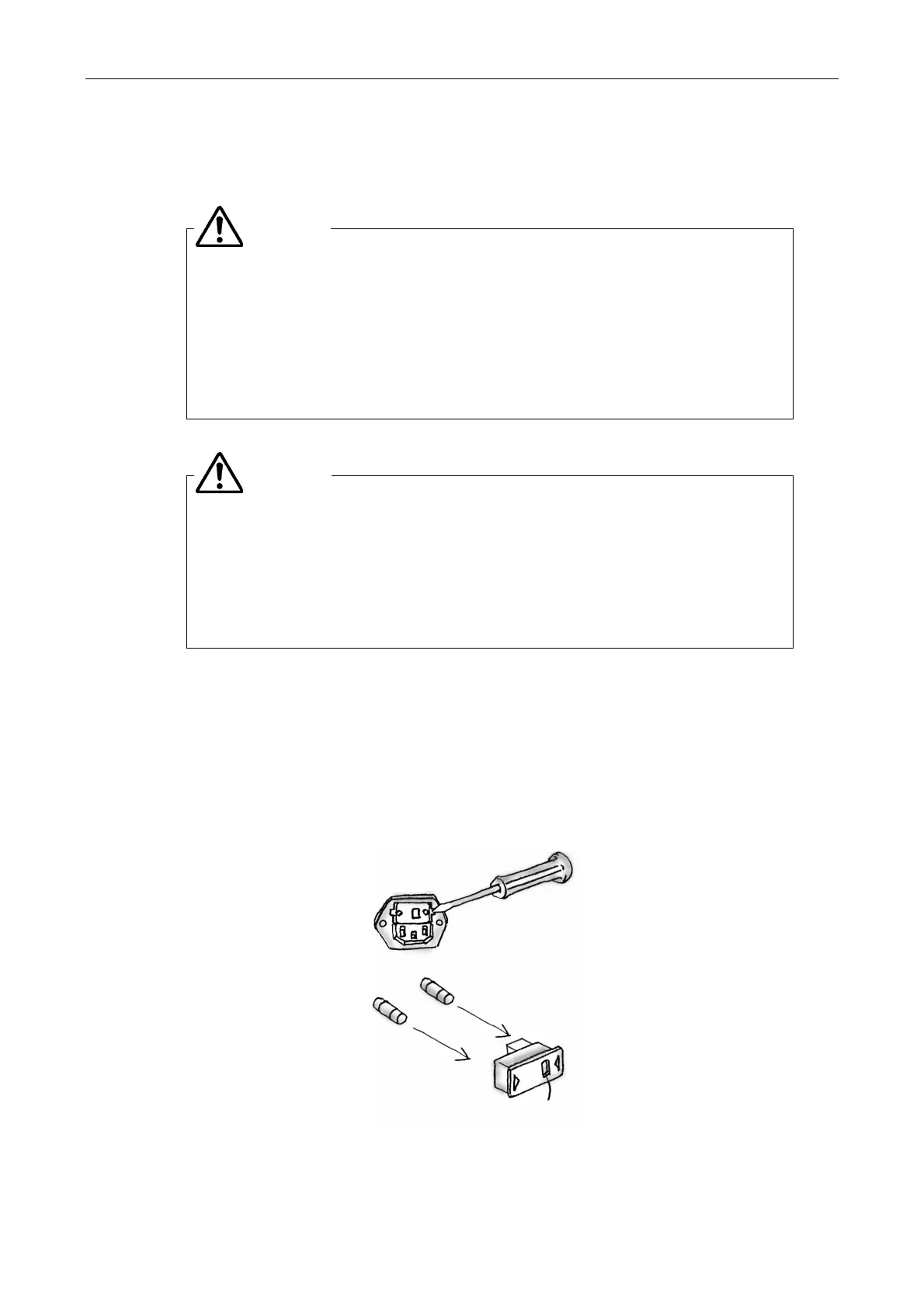

Replacing the Fuse
• To avoid electrical shock or damage to the instrument, turn off the
power switch (turn to “{”) and unplug the power cord before replacing
the fuse.
• Use the specified fuse. Using a different fuse may damage the
instrument or cause a fire hazard.
Specified Fuse: 250V 1A, time-lag, low-breaking type, 5x20 miniature
fuse x2
• Make sure that the contact of the fuse is not damaged before installing
a new fuse. If the contact is damaged, a malfunction or overheating
may result.
• Attach the fuse to the fuse holder securely. If not, the fuse may come
loose or a contact failure may occur, resulting in overheating or smoke.
• Put back the fuse holder securely to its original position.
(
1
)
Turn off the power switch (turn to “{”) and unplug the power cord.
(
2
)
Remove the fuse holder using a flatblade screwdriver.
(
3
)
Remove the fuses and attach new fuses.
(
4
)
Make sure that the volta
g
e indication shown in the window of the fuse holder corres
p
onds
to the voltage provided in your region. If not, change the voltage setting by relocating
the voltage selector. For details, see P.68.
(
5
)
Put the fuse holder back in place.
WARNING
CAUTION
Fuses
Fuse Holder
Volta
g
e Indication

Nikon eclipse E200 Specifications

General

Type	Biological Microscope
Optical System	CFI60 Infinity Optical System
Objectives	4x, 10x, 40x, 100x (Oil)
Observation Method	Brightfield
Magnification	40x to 1000x
Focus	Coaxial coarse/fine focus knobs
Eyepieces	10x
Condenser	Abbe condenser
Power Supply	AC 100-240V
Eyepiece Tube	Binocular Tube, Inclination 30°
