Nikon eclipse E200 User Manual

Chapter 6 Assembly
3 Replacement of Consumable Materials
73
6
(1) Turn off the power switch (turn to “{”) and unplug the power cord.
(2) Wait about 30 minutes until the lamp and its surroundings are cool enough to touch.
(3) Hold the field lens unit at the vertical grooves on both sides and pull it toward you to
remove it.
(4) Remove the old lamp.
(5) Hold a new lamp wearing gloves or using a cloth. Insert the lamp’s contact pins fully
into the socket holes straight and securely.
(6) Put the field lens unit back in place.
(7) Plug the power cord.

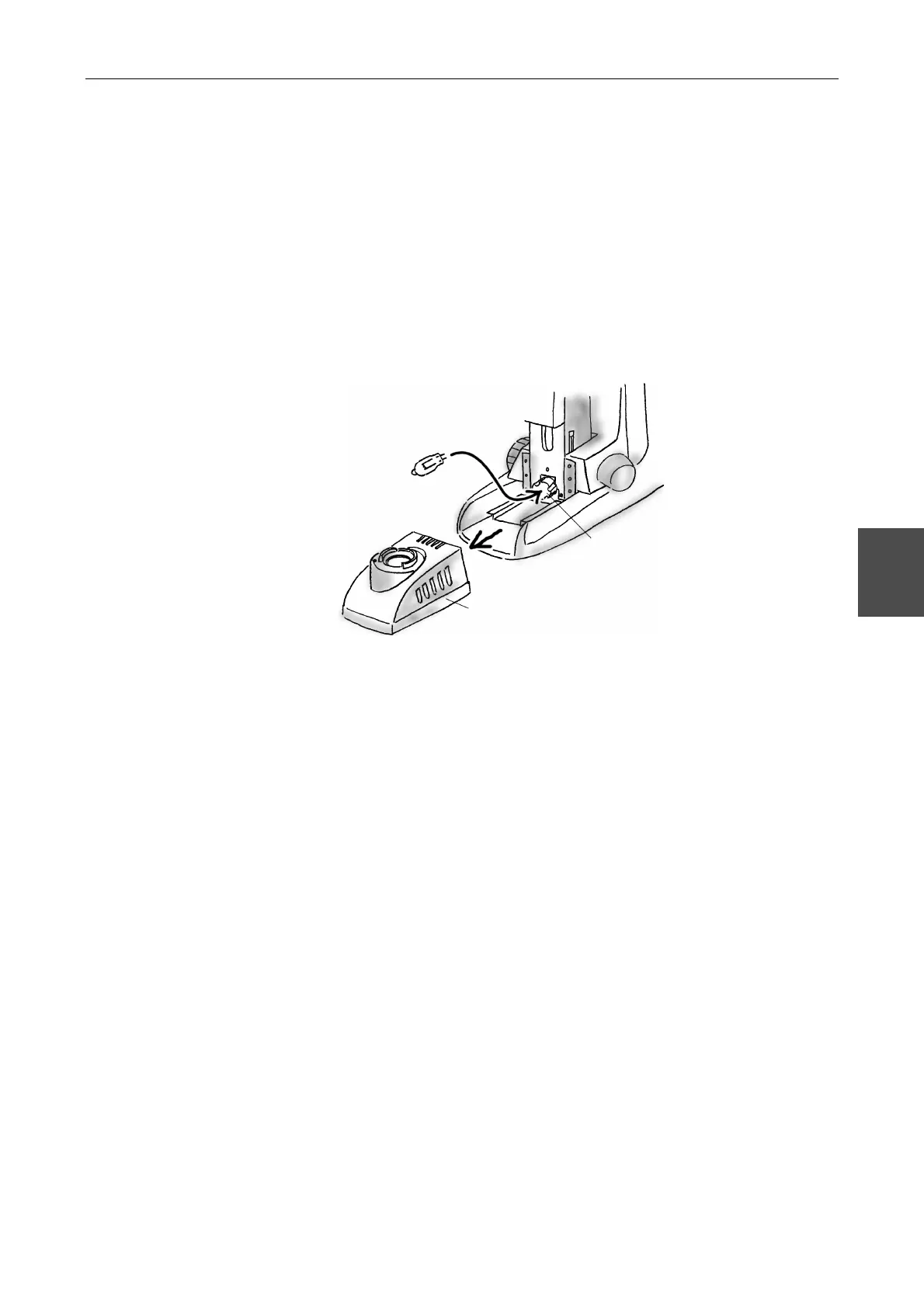

Field lens unit
Socket
Lam
p

Nikon eclipse E200 Specifications

General

Type	Biological Microscope
Optical System	CFI60 Infinity Optical System
Objectives	4x, 10x, 40x, 100x (Oil)
Observation Method	Brightfield
Magnification	40x to 1000x
Focus	Coaxial coarse/fine focus knobs
Eyepieces	10x
Condenser	Abbe condenser
Power Supply	AC 100-240V
Eyepiece Tube	Binocular Tube, Inclination 30°
