Nikon Eclipse E400 POL User Manual

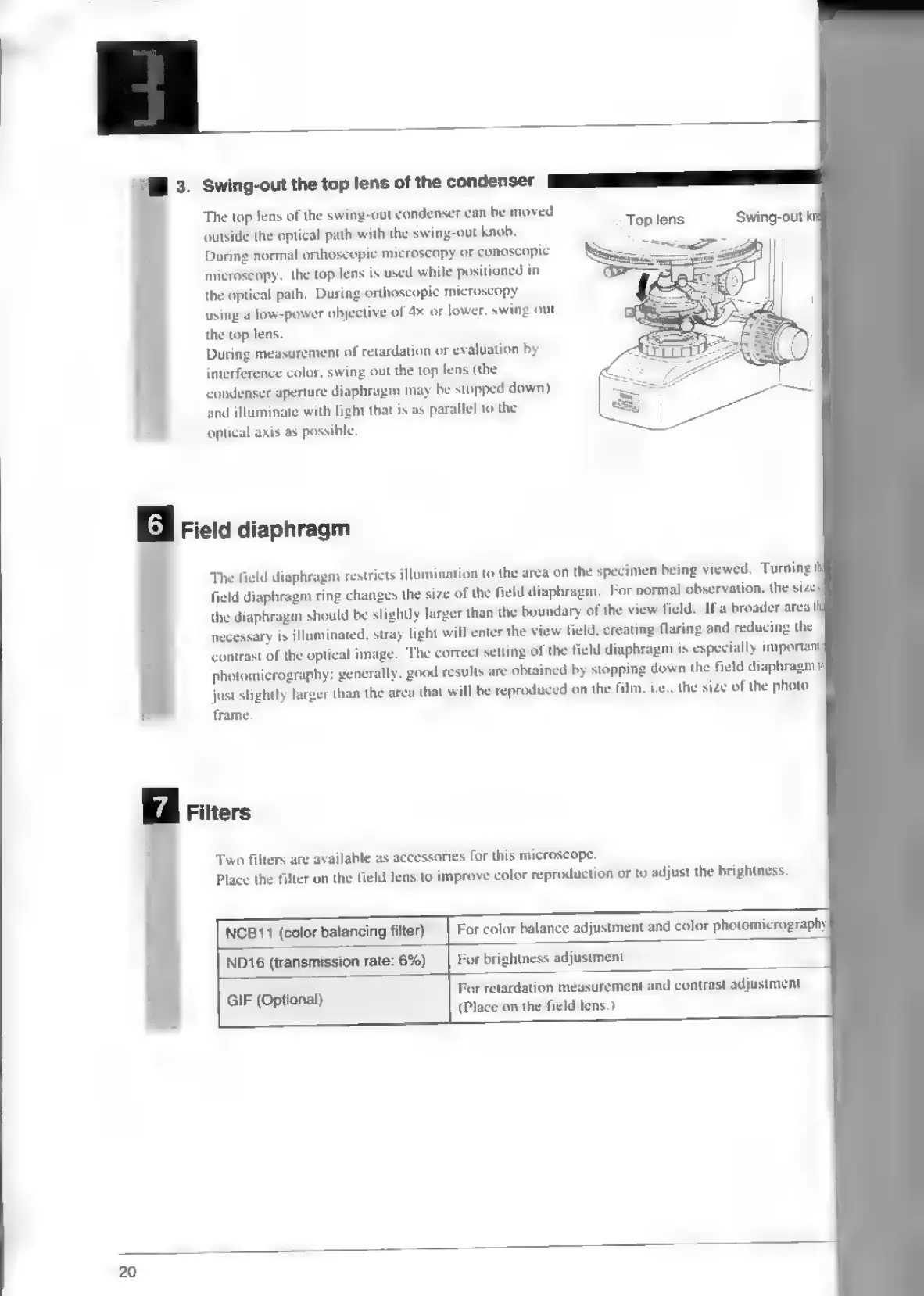

Swing-out
the
top
lens
of
the
condenser
The
top
lens
of
the
swing-out
condenser
can
be
moved
outside
the
optical
path
with
the
swing-out
knob.
During
normal
orthoscopic
microscopy
or
conoscopic
microscopy,
the
top
lens
is
used
while
positioned
in
the
optical
path.
During
orthoscopic
microscopy
using
a
low-power
objective
of
4x
or
lower,
swing
out
the
top
lens.
During
measurement
of
retardation
or
evaluation
by
interference
color,
swing
out
the
top
lens
(the
condenser
aperture
diaphragm
may
be
stopped
down)
and
illuminate
with
light
that
is
as
parallel
to
the
optical
axis
as
possible.
The
field
diaphragm
restricts
illumination
to
the
area
on
the
specimen
being
viewed.
Turning
field
diaphragm
ring
changes
the
size
of
the
field
diaphragm.
For
normal
observation,
the
size
the
diaphragm
should
be
slightly
larger
than
the
boundary
of
the
vi
necessary
is
illuminated,
stray
light
will
enter
the
view
field,
creating
flaring
and
reducing
the
contrast
of
the
optical
image.
The
correct
setting
of
the
field
diaphragm
is
especially
important
photomicrography;
generally,
good
results
are
obtained
by
stopping
down
the
field
diaphragm
just
slightly
larger
than
the
area
that
will
be
reproduced
on
the
film.
the
size
of
the
frame.
Two
filters
are
available
as
accessories
for
this
microscope.
Place
the
filter
on
the
field
lens
to
improve
color
reproduction
or
to
adjust
the
brightness.
NCB11
(color
balancing
filter)
|
For
color
balance
adjustment
and
color
photomicrography
ND16 (transmission rate: 6%)
For brightness adjustment
For
retardation
measurement
and
contrast
adjustment
(Place
on
the
field
lens.)
GIF (Optional)
