INSTRUCTIONS FOR USE
16 9096910000(1)2006-09

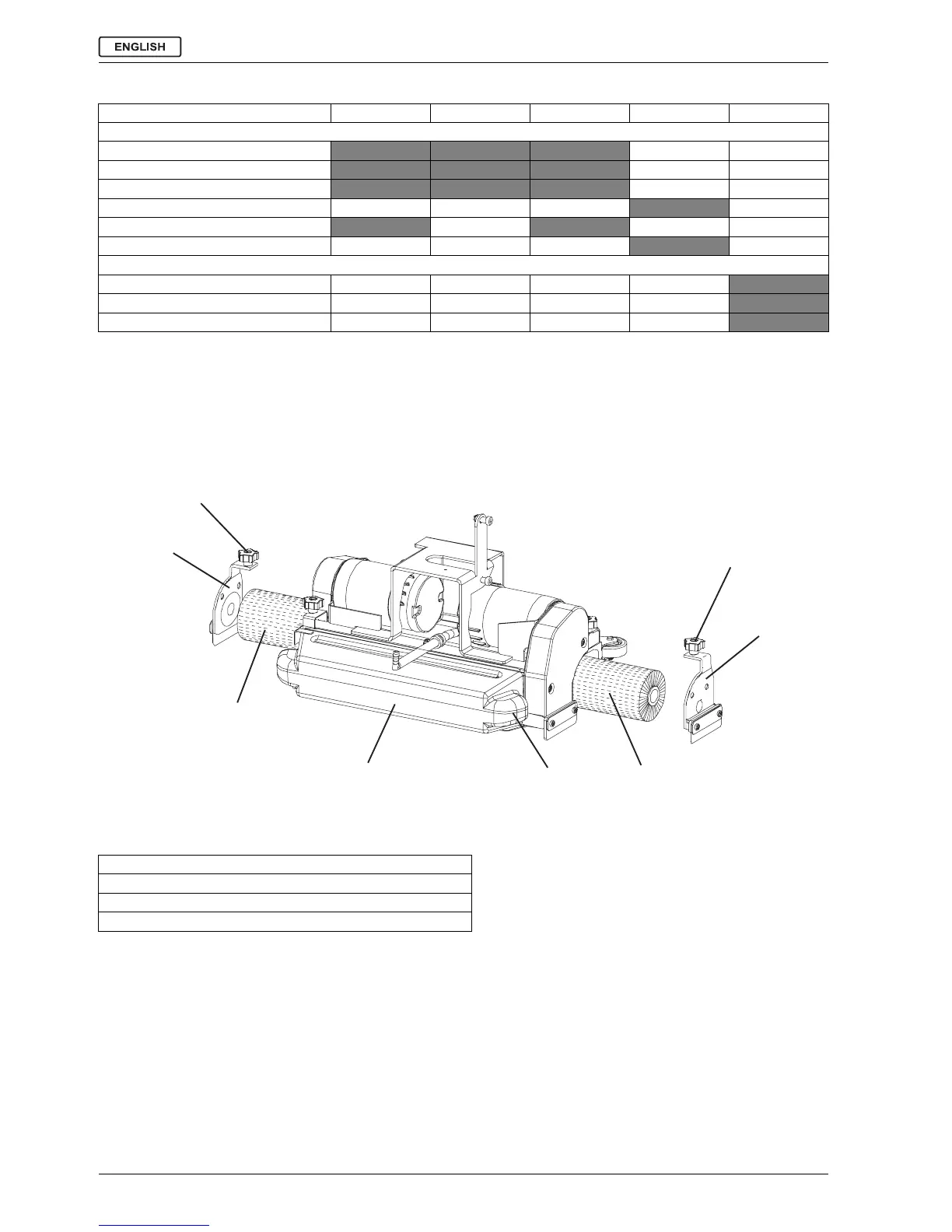

Brush/pad application guide (suggestions only)
Cylindrical brush installation/removal
1. Turn the ignition key (80) to “0” position.
2. Lift the cylindrical brush deck by pressing the pedal (11).
3. Remove the handwheels (A, Fig. 3) and the lids (B) by pushing them downwards and pressing on the handwheels.
4. Install the cylindrical brushes (C).
The cylindrical brushes can be installed on either sides.
5. Install the lids (B) and fasten them with the handwheels (A).
6. To remove the cylindrical brushes, carry out steps 1 to 5 in the reverse order.
S311318
Figure 3
Types of cylindrical brushes available
Models Midlite Grit 180 Midgrit 240 Prolene Prolite Union Mix
General cleaning:
Concrete
Terrazzo floor
Ceramic tiles/quarrystones
Marble
Vinyl tiles
Rubber tiles
Polishing:
Rubber tiles
Marble
Vinyl tiles
19.1 in (485 mm) models
909 5823 000 - Polypropylene 0.40
909 5825 000 - Hard nylon 0.60
909 5824 000 - Soft nylon 0.45
A
B
C
D
E
A
C
B
