INSTRUCTIONS FOR USE
9096910000(1)2006-09 7

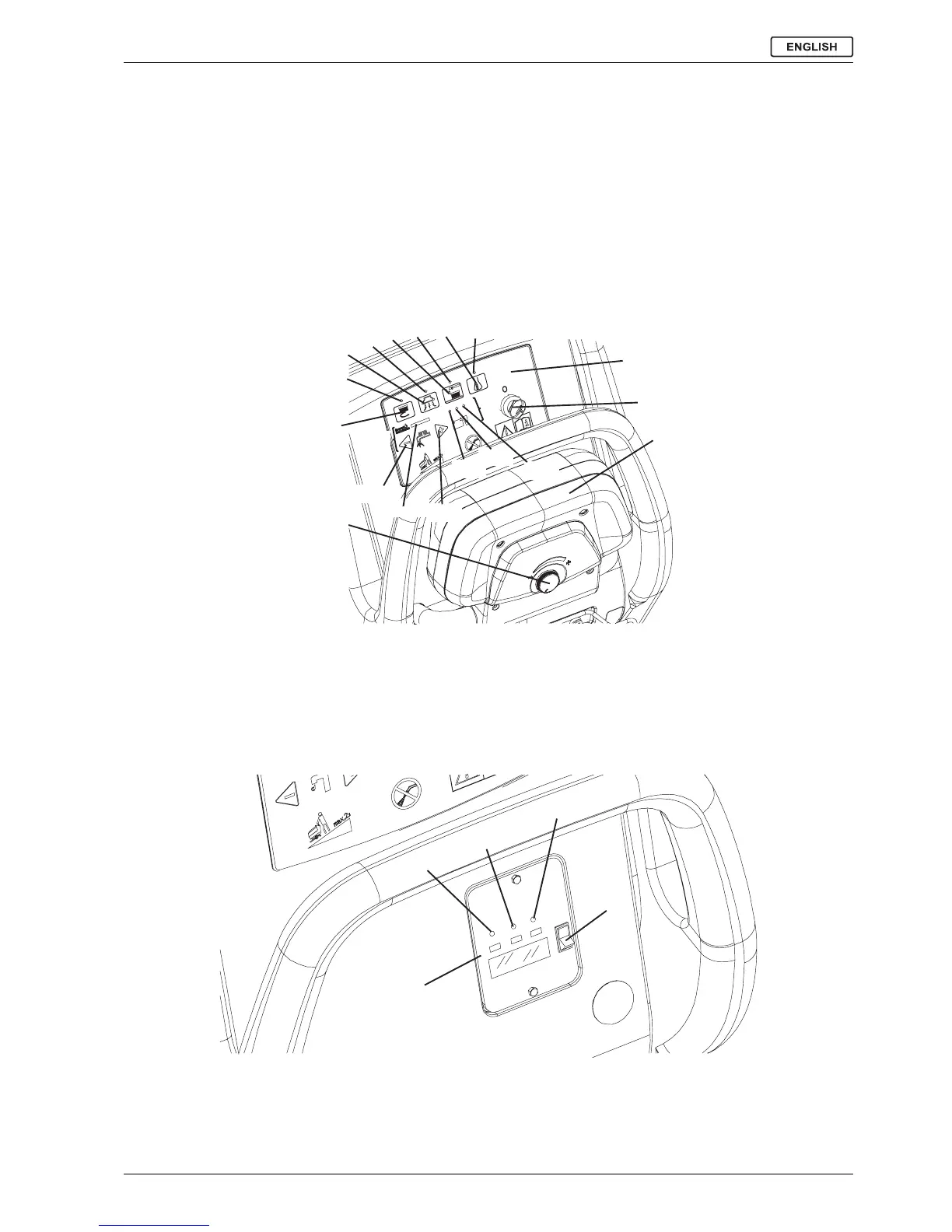

CONTROL PANEL
71. Brush/pad-holder and vacuum system switch
72. Brush/pad-holder and vacuum system switch warning
light
73. Vacuum system switch
74. Vacuum system switch warning light
75. Brush/pad-holder release switch
76. Brush/pad-holder release switch warning light
77. Detergent flow control switch (*)
78. Detergent flow control switch warning light (*)
79. Hour counter (optional)
80. Ignition key (0 - I)
81. Battery charge indicator
81a. Charged battery warning light (green)
81b. Semi-discharged battery warning light (yellow)
81c. Discharged battery warning light (red)
82. Washing water flow control switches
82a. Flow increase switch
82b. Flow decrease switch
82c. Washing water flow indicator
83. Forward/reverse gear drive paddle
84. Forward/reverse speed adjuster
(*) Only for machines with AXP
S311312
BATTERY CHARGER DATA INSPECTION WINDOW
90. Electronic battery charger
91. Lead (WET) or gel (GEL) battery selector
92. Green warning light (the battery charger is on and
batteries are charged)
93. Yellow warning light (the battery charger is on and
batteries are semi-discharged)
94. Red warning light (the battery charger is on and it is
charging the batteries)
S311313
79
80
83
72
73
74
75
76 77
78
84
82a
81c
81a
81b
82c
82b
71
82
81
94
93
92
91
90
