General Information
10
Service Manual – SC400

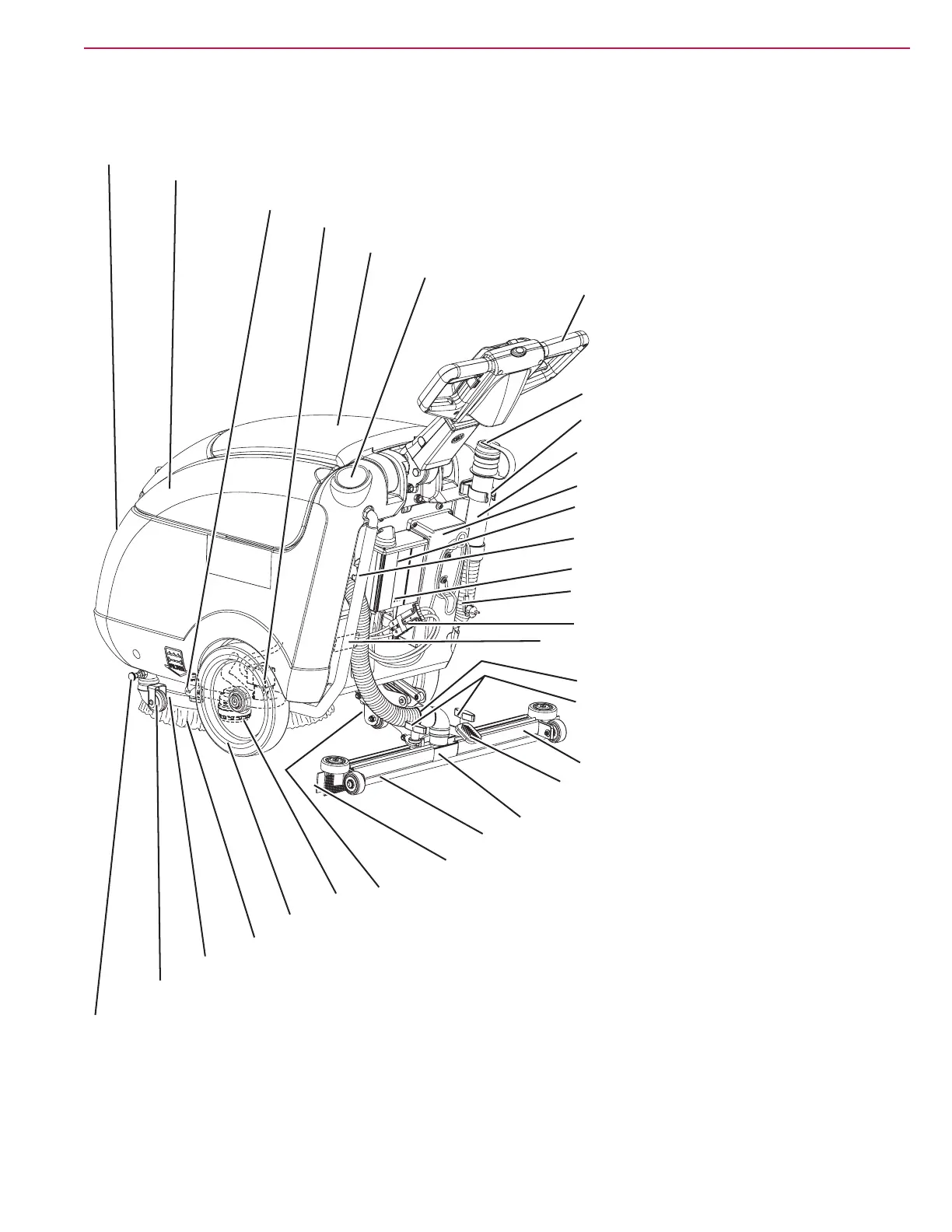

Machine Nomenclature (know your machine)
Serial number plate/technical data/conformity
certification
Recovery water drain hose
Handlebar with control panel
Can holder
Solution flow opening/closing valve
Solution solenoid valve
Squeegee mounting handwheels
Squeegee
Brush deck
Brush
Central wheels on fixed axle
Recovery tank cover
Rear support wheel, when the squeegee is lifted
Front squeegee blade
Squeegee blade mounting springs
Rear squeegee blade
Recovery tank
Battery connector (red)
Recovery water drain plug
Battery charger warning lights
Battery charger
Electrical component box
Parking wheel positioning pin
Parking wheel
Squeegee vacuum hose
Battery charger cable
Solution filter
Squeegee lifting/lowering pedal
Solution drain hose with level check marks
Recovery water drain hose bracket
P200042
