18 - FORM NO. 56043088 / Advenger
™
/ BR 600S, 650S, 700S, 800S
WHEEL DRIVE SYSTEM
FIGURE 4
R1 Voltage Values
0 – 2.5V Reverse
2.5 – 5V Forward
FIGURE 3

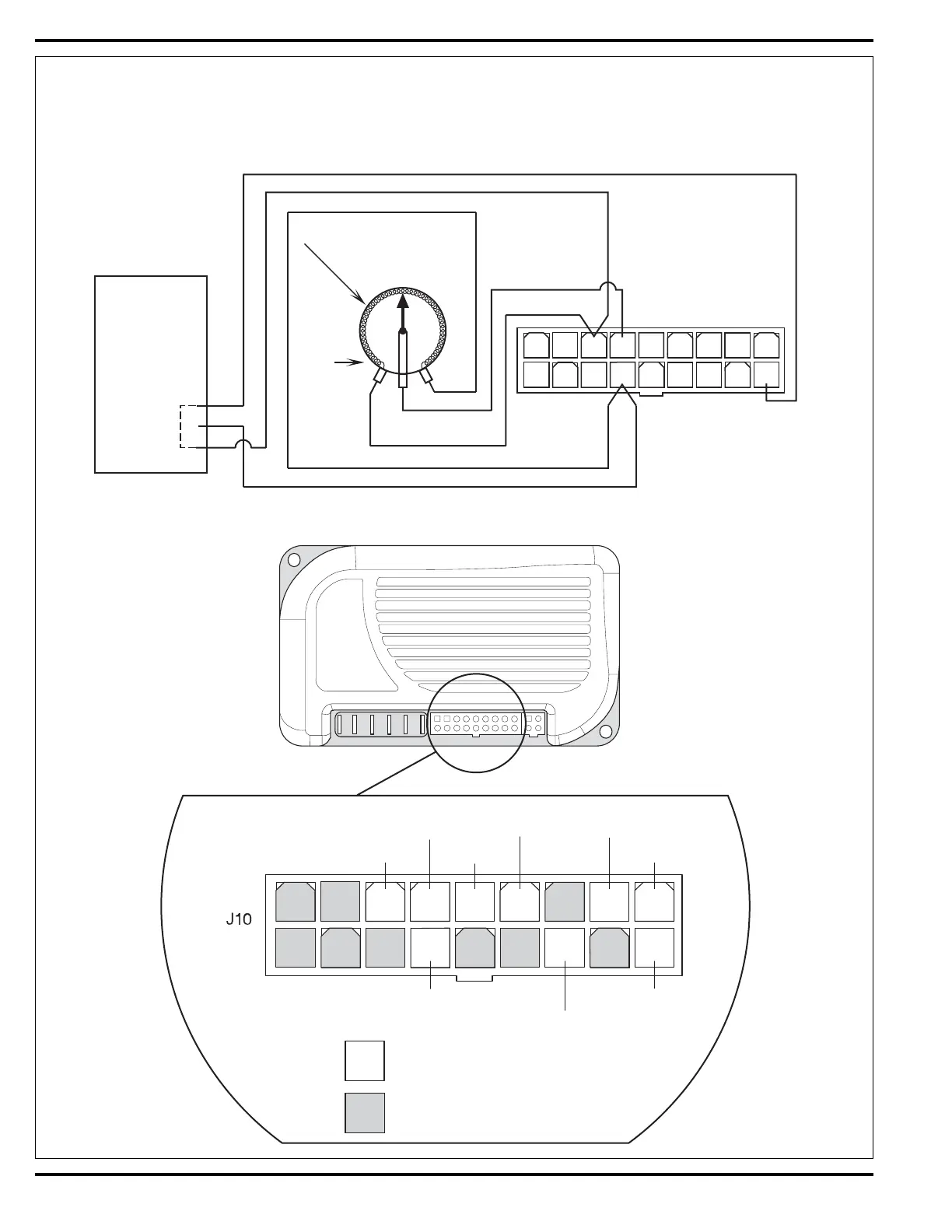

This drawing shows additional controller input circuit detail. The R1 pot is shown in the neutral position. Resistance is measured between pot low
and pot wiper.
R1
5K Ohms
E1
Main Control
Board (Partial)
BLK
YEL
BLK
VIO
2
View: Non-stem end
Speed Limit
Pot. LO
Pot. HI
J2-9
J4-9
J4-3
VIO
YEL
GRA
YEL
YEL
GRA
BLK
HI
LO
WIPER
A1 Speed Control
Pin Connection
FRON T
VIO
VIO
13 49
1 0 1 3 18
B+ B- M2 M1 LOGIC PROG
12 3 45 6 789
1 01 1 12 13 1 4 1 5 16 17 1 8
Used (9 pins)
Not Used (9 pins)
POT HIGH
POT WIPER
KSI
AUXILIARY DRIVER
(scrub)
MODE (M1, M2)
STATUS
POT LOW SPEED LIMIT
POT
A1
AUXILIARY DRIVER
(rev / alarm)
