28 - FORM NO. 56043094 / Captor
™
4300, 4800, 5400 / CR 1100, 1200, 1400
SWEEPING SYSTEM
R
S
FRONT
FIGURE 3
SIDE BROOM MAINTENANCE

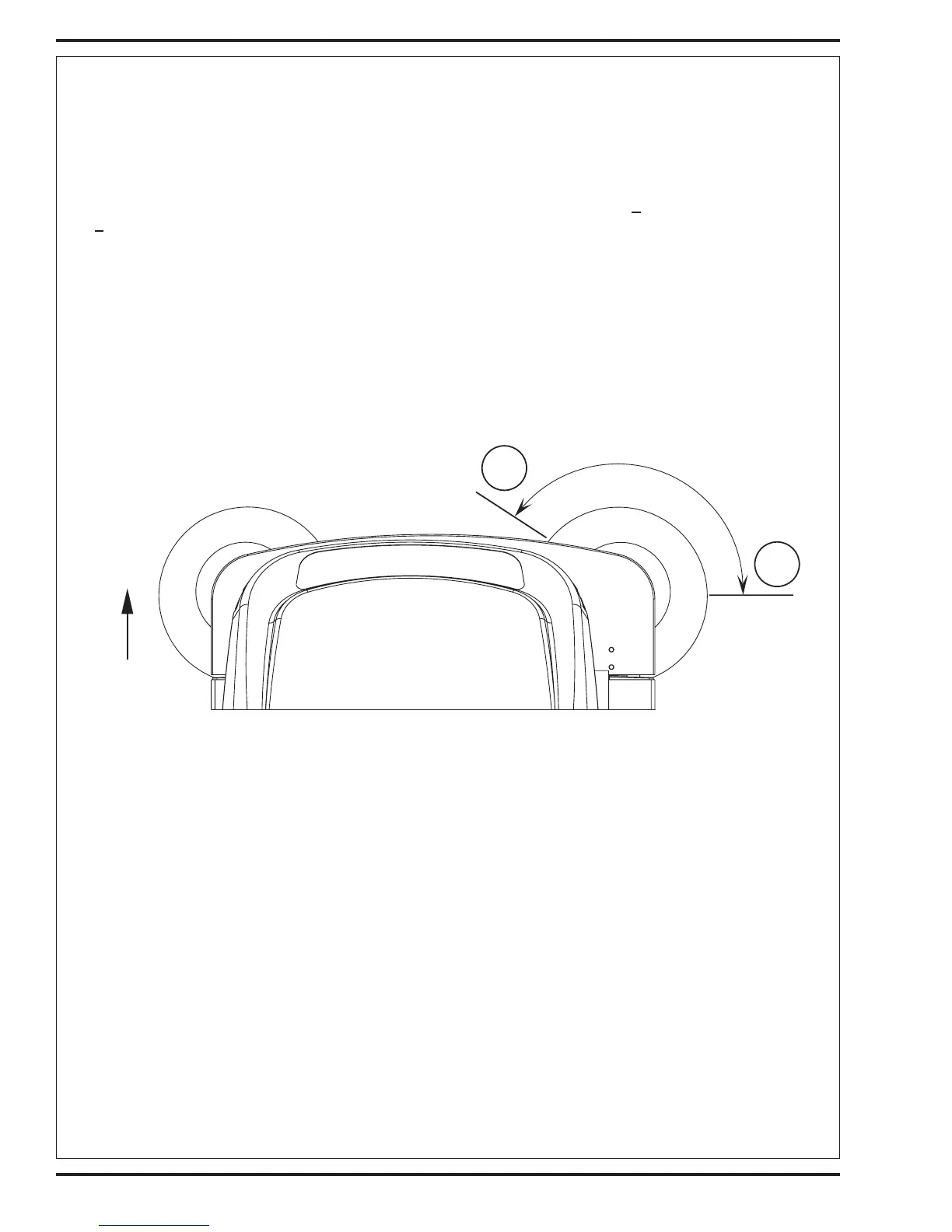

The side broom(s) move dirt and debris away from walls or curbs and into the path of the main broom. Adjust the side broom so that the bristles
are contacting the floor from the 10 O’clock (R) to the 3 O’clock (S) area shown in Figure 3 when the broom is down and running.
To adjust the Side Broom...
1 The side broom(s) are adjusted simply by pressing and holding the Side Broom DOWN/ON Switch (
N) or the Side Broom UP/OFF Switch
(Y) until the desired amount of bristles are contacting the floor.
NOTE: The machine should be stored with the Side Broom(s) in the raised position. The Side Broom(s) should be replaced when the bristles are
worn to a length of 3 inches (7.62 cm) or they become ineffective.
To replace the Side Broom...
1 Raise the Side Broom(s).
2 See Figure 4. Reach under the Side Broom and remove the large Thumb-Nut (T) holding the side broom on and remove the broom and
plastic disc. Note: The right side broom thumb nut is a right hand thread and the left side thumb nut is a left hand thread.
3 Install the new broom and plastic disc by aligning the three alignment pins and pushing on. Re-install the Thumb-Nut and tighten.
To Next Page
