Nilfisk-Advance Captor 4300 Mechanical Repair Service Manual

32 - FORM NO. 56043094 / Captor
™
4300, 4800, 5400 / CR 1100, 1200, 1400
SWEEPING SYSTEM
AG
AH
AI
AJ
AH
FRONT

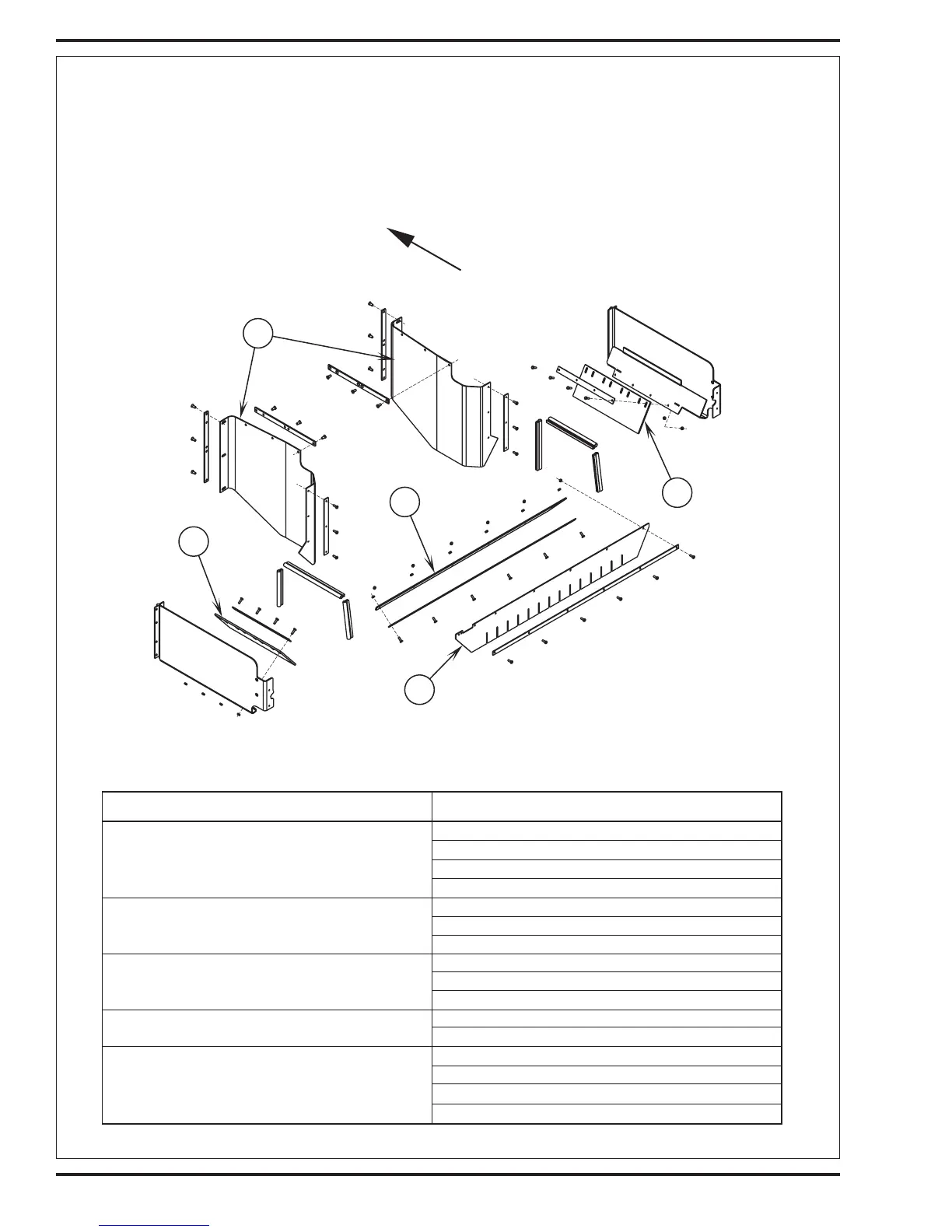

SKIRT IDENTIFICATION AND REPLACEMENT
Qty Description
AG 2 Broom Housing Skirt
AH 2 Broom Door Skirt
AI 1 Rear Skirt
AJ 1 Rear Skirt
SWEEPING PERFORMANCE CHECK LIST
Complaint Possible Cause
Leaving debris behind Rear skirt damaged
Main broom worn
Main broom out of adjustment
Hopper full
Debris coming out sides Worn side skirts
Main broom not level
Hopper full
Not sweeping evenly Rear skirt worn
Main broom not level
Main broom worn
Side broom kicking out debris Side broom out of adjustment
Side broom angle not correct
Poor sweeping performance Main broom worn
Main broom out of adjustment
Worn skirts
Wrong type of broom or broom material
FIGURE 7
