FORM NO. 56043094 / Captor
™
4300, 4800, 5400 / CR 1100, 1200, 1400 - 3
TOWING OR PUSHING A DISABLED MACHINE
The machine’s drive propelling pump is manufactured with a tow valve. This valve prevents damage to the hydraulic system when the machine
is being towed/pushed short distances without use of the engine.
To access the valve, open the Engine Compartment Door (
22) and lift off the Right Engine Compartment Access Panel (37). Locate the valve
as shown on the underside of the hydrostatic pump by reaching under the radiator. Turn the valve 90 degrees, this disengages the hydrostatic
lock between the motor and pump.
CAUTION!
The hydraulic propelling pump can be damaged if the machine is towed with the valve in the normal working position (A).

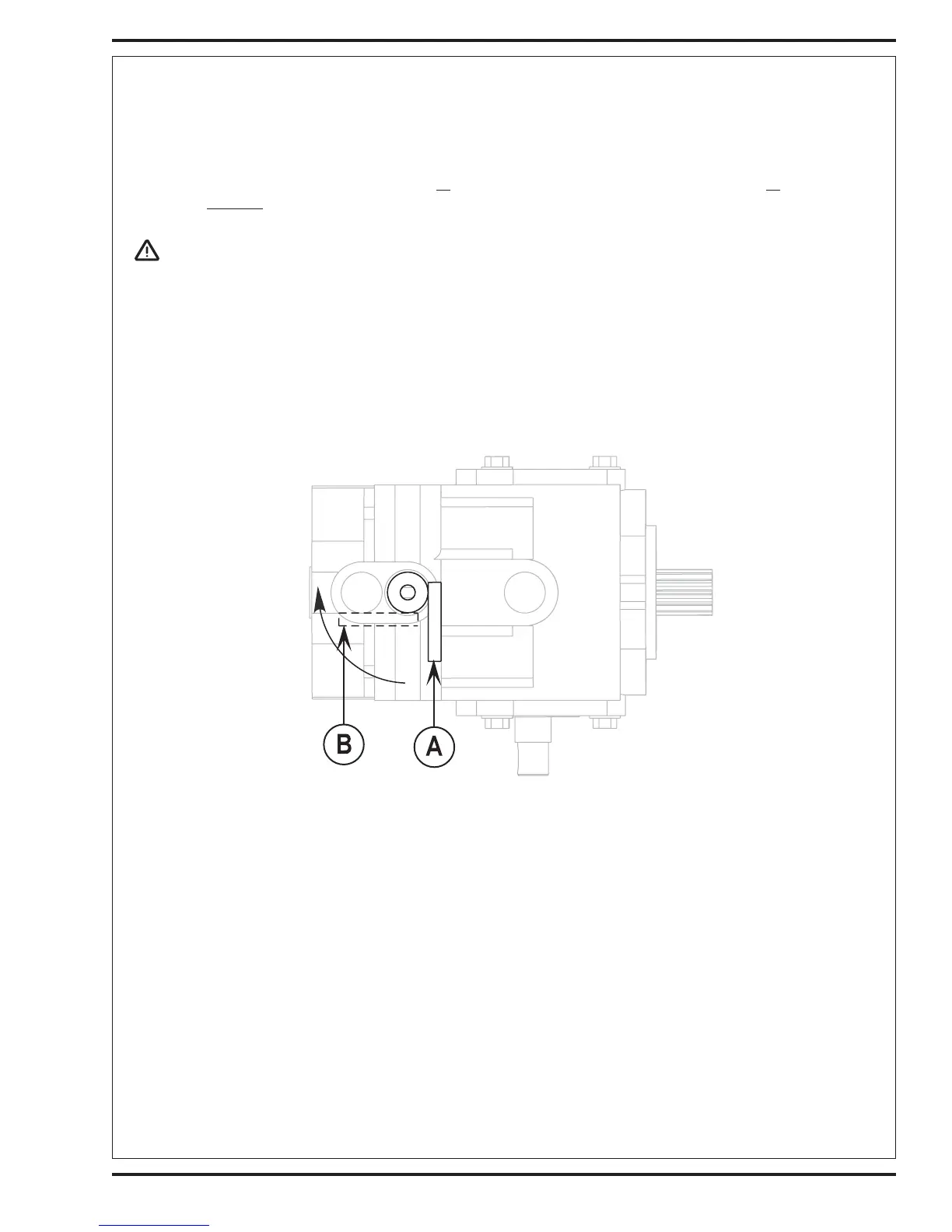

Reference the illustrations below for the normal working setting (A) (vertical) and the free wheeling towing setting (B) (horizontal). Note: If the tow
valve is left in free wheeling (B) (horizontal) position the propelling pump can’t drive the machine FWD or REV. No damage will result, just re-set
valve to the normal working setting (A) (vertical). NOTE: Tow or push machine no faster than a normal walking pace (2-3 mph - 3-5 km/h) and
for short distances only. If the machine is to be moved long distances the drive wheel needs to be raised off the floor and placed on a suitable transport
dolly.
OTHER MANUALS AVAILABLE
The following manuals are available from the Nilfisk-Advance Literature Service Department, for your Rider Scrubber/Sweeper:
• Parts List - Form Numbers 56042440 (all systems except hydraulic)
56042445 (hydraulic system)
• Operation Manual - Form Numbers 56041546 (Danish, Norwegian, Swedish, Finnish)
56041547 (German, French, Dutch, Russian)
56041548 (Spanish, Portuguese, Italian, Greek)
56041578 (Estonian, Latvian, Lithuanian, Slovenian)
56041579 (Slovakian, Czech, Polish, Hungarian)
56041580 (English)
• Quick Start Service Manual 56043093
• Engine Manuals
1.6L Industrial Engine Operator Manual (excerpt from 16LECSS) 56041564
1.6L Industrial Engine Service Manual 36100009*
1.6L Emission Certified Industrial Engine Emission Control System Service Manual 16LECSS*
*Available in electronic format only
BOTTOM VIEW OF HYDROSTATIC PUMP
GENERAL INFORMATION
