SM_MC_6P Ver.2.0_2021
Service / Repair
39
F

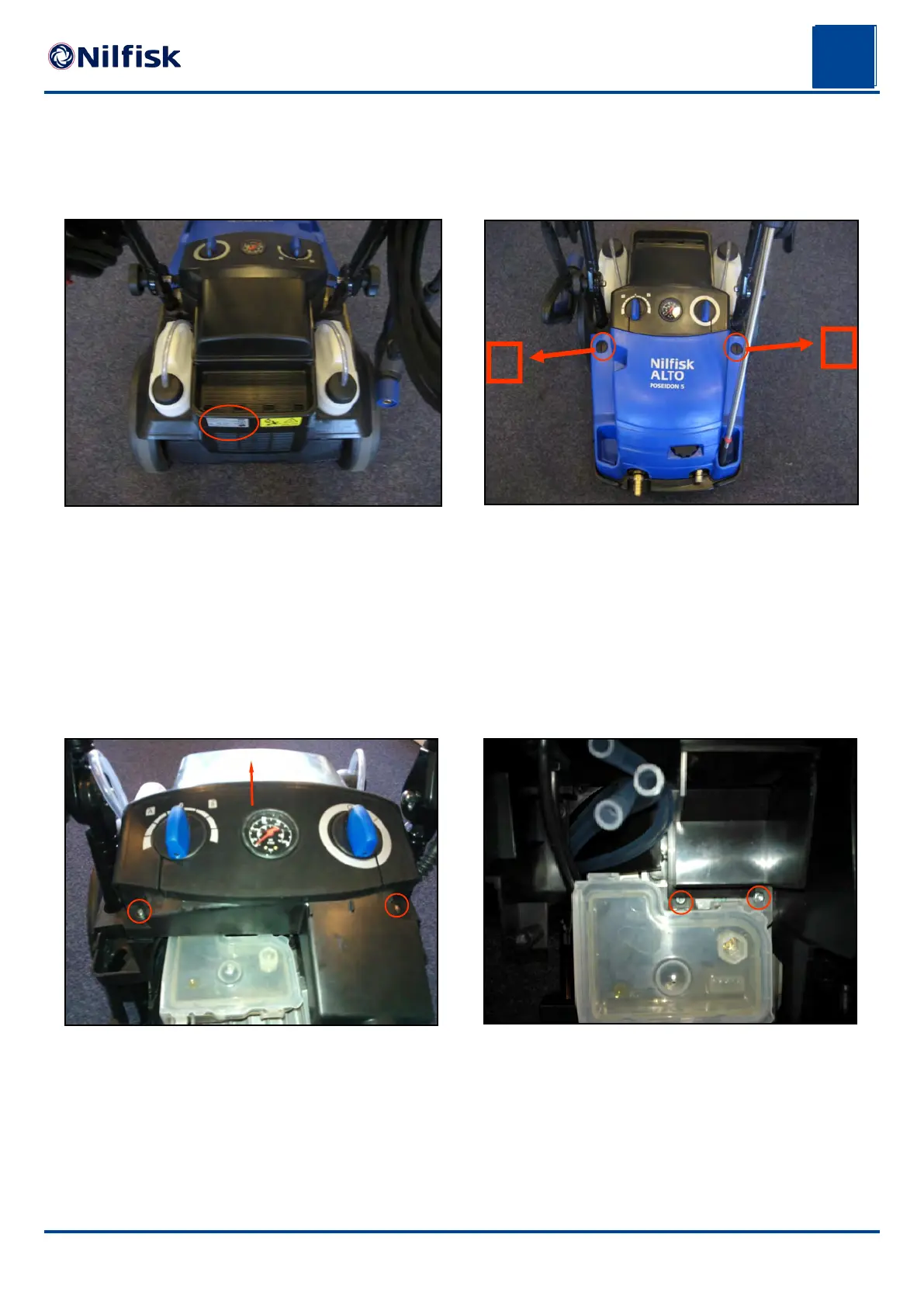

Pic. F4: Oil container
• Identify the machine version at the
dataplate.
• Find the techincal data for the machine
version in this manual chapter ”A”.
Pic. F1: Machine ID Plate Pic. F2: Cabinet
Pic. F3: E– box
1
1
The lid for the electrical box is assembled
with
2 x torx T20 screws.
Remove the screws and push the lid back-
wards to open the E-box.
The oil container is assembled to the pump by
the 2x Torx 20 screws.
The cabinet is disassembled by turning the two
lock screws (1) on top of the cabinet.
Open the cabinet and pull forward.
Cabinet and oil container
