SM_MC_6P Ver.2.0_2021
Service / Repair
40
F
• Disassemble the valve housing from the
cylinder block by the 8 bolts.
• Be aware of the o-rings and valve parts.
• Be carefull not to damage the surface
inside when disassembling the thrust
collar.
• Inspect the thrust collar for damages
before assembling.

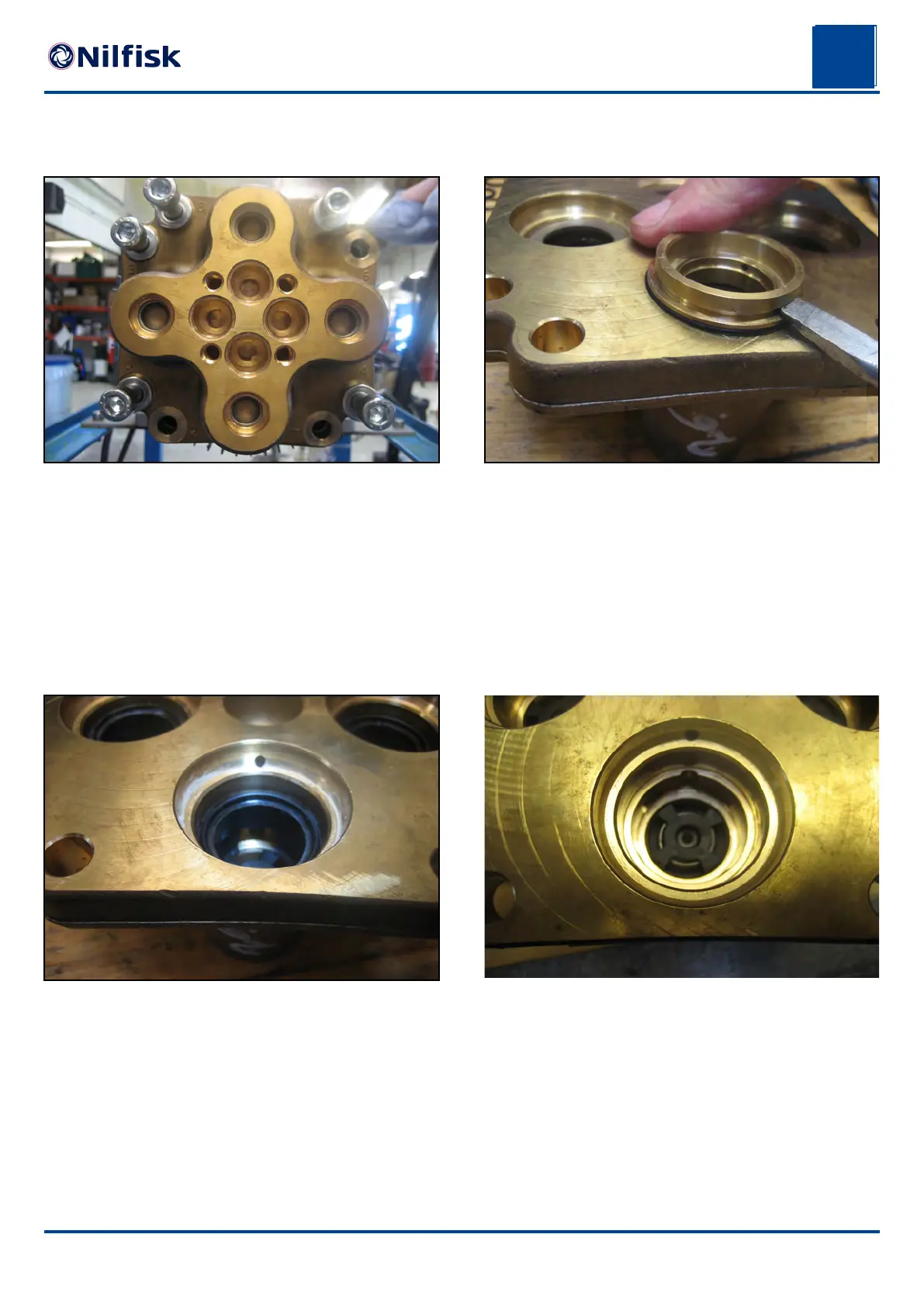

Pic. F8: Thrust collar Pic. F7: Valve housing
Pic. F9: Cylinder head Pic. F10: Cylinder head
• Carefully tip out the sleeves with an
adequate puller or screwdriver and
replace them. Be careful not to scratch
the surface.
Suction valves
Pump valves
