INSTRUCTION FOR USE ENGLISH
9099867000 - SC351 9

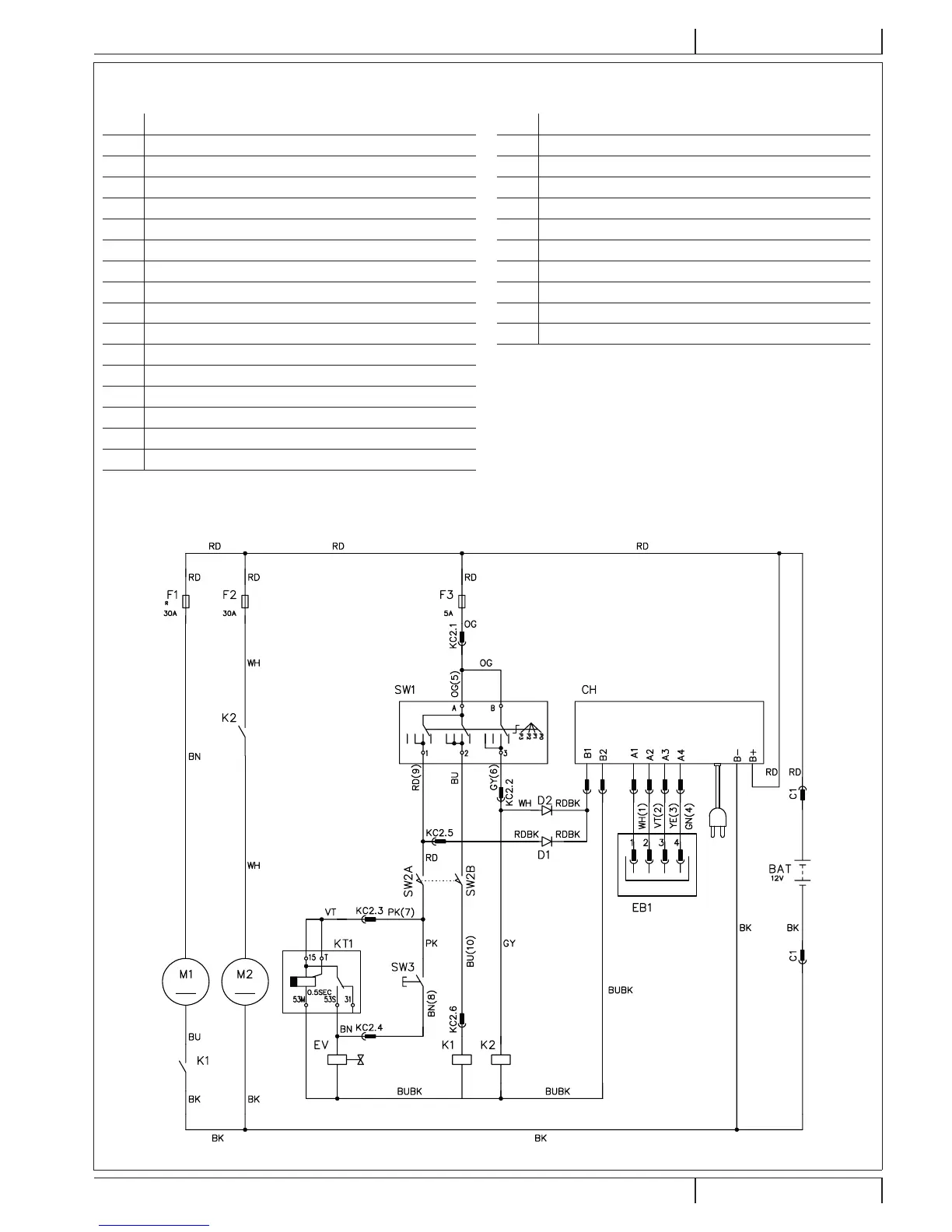

WIRING DIAGRAM
Key
BAT 12 V battery
CH Battery charger
D1 Diode
D2 Diode
EB1 LED electronic board
EV Detergent solenoid valve
F1 Brush motor circuit breaker (35 A)
F2 Vacuum system motor fuse (30 A)
F3 Function selector fuse (5 A)
K1 Brush motor relay
K2 Vacuum system motor relay
KT1 Solenoid valve timer
M1 Brush motor
M2 Vacuum system motor
SW1 Function selector
SW2 Brush motor-solenoid valve enabling switch
SW3 Detergent rate switch
Color codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
P100406
