3/13 A - 21 56091081 - SC8000
ENGLISH - AINSTRUCTIONS FOR USE

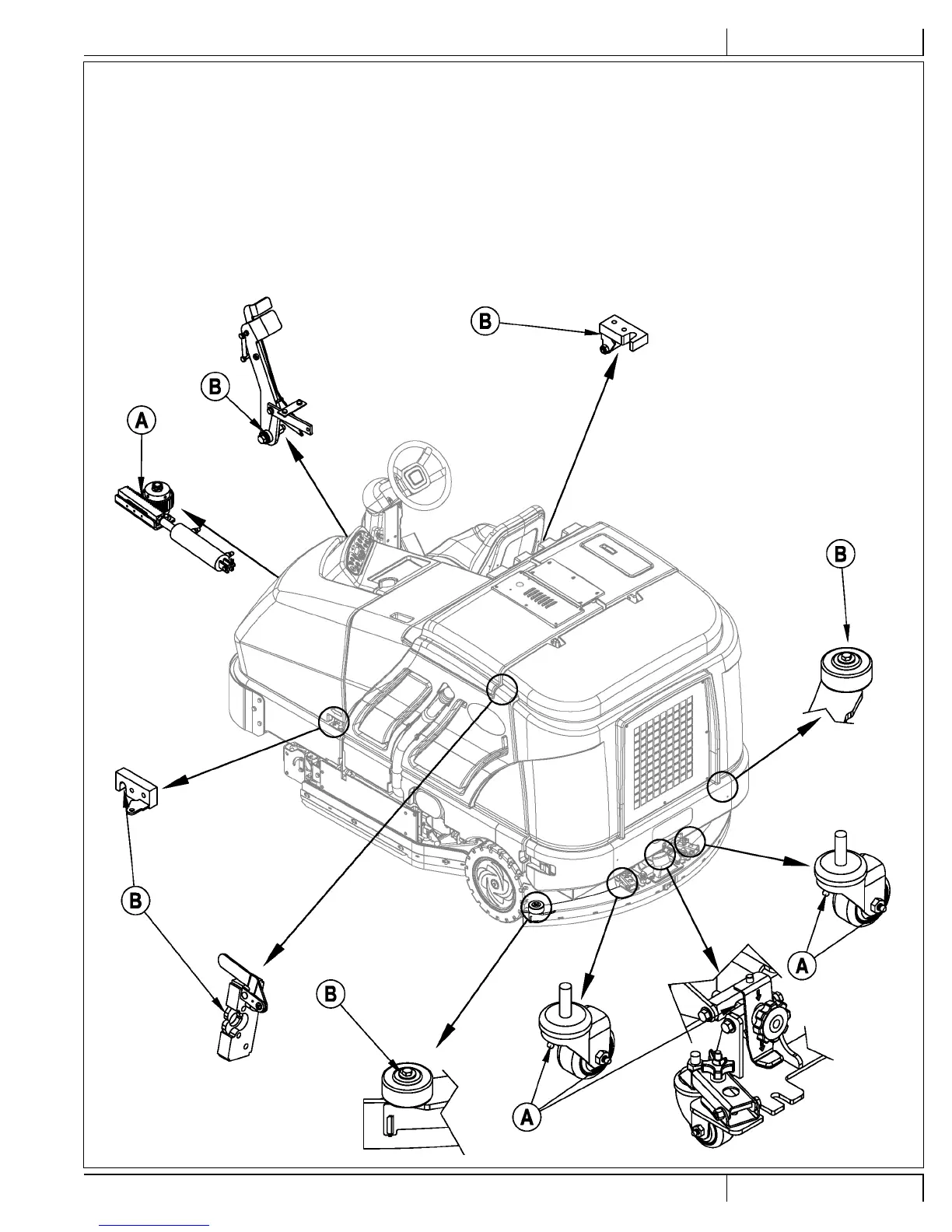

FIGURE 6
LUBRICATING THE MACHINE – FIGURE 6
Once a month, pump a small amount of grease into each grease fi tting on the machine until grease seeps out around the bearings.
Grease fi tting locations (or apply grease to) (A):
• Squeegee Caster Wheel Axle and Pivot
• Steering Rack
• Squeegee mount angle adjustment knob threads
Once a month, apply light machine oil to lubricate the (B):
• Squeegee tool end wheels
• Fuel Tank Cover Latch
• Recovery Tank Latch
• EcoFlex Cover Latch
• Brake Pedal (parking brake) linkage
