TROUBLESHOOTING
If the possible causes listed below are not the source of trouble, it is a symptom of something more serious. Contact your Nilfi sk Service Center immediately for
service.
TRIPPING THE CIRCUIT BREAKERS

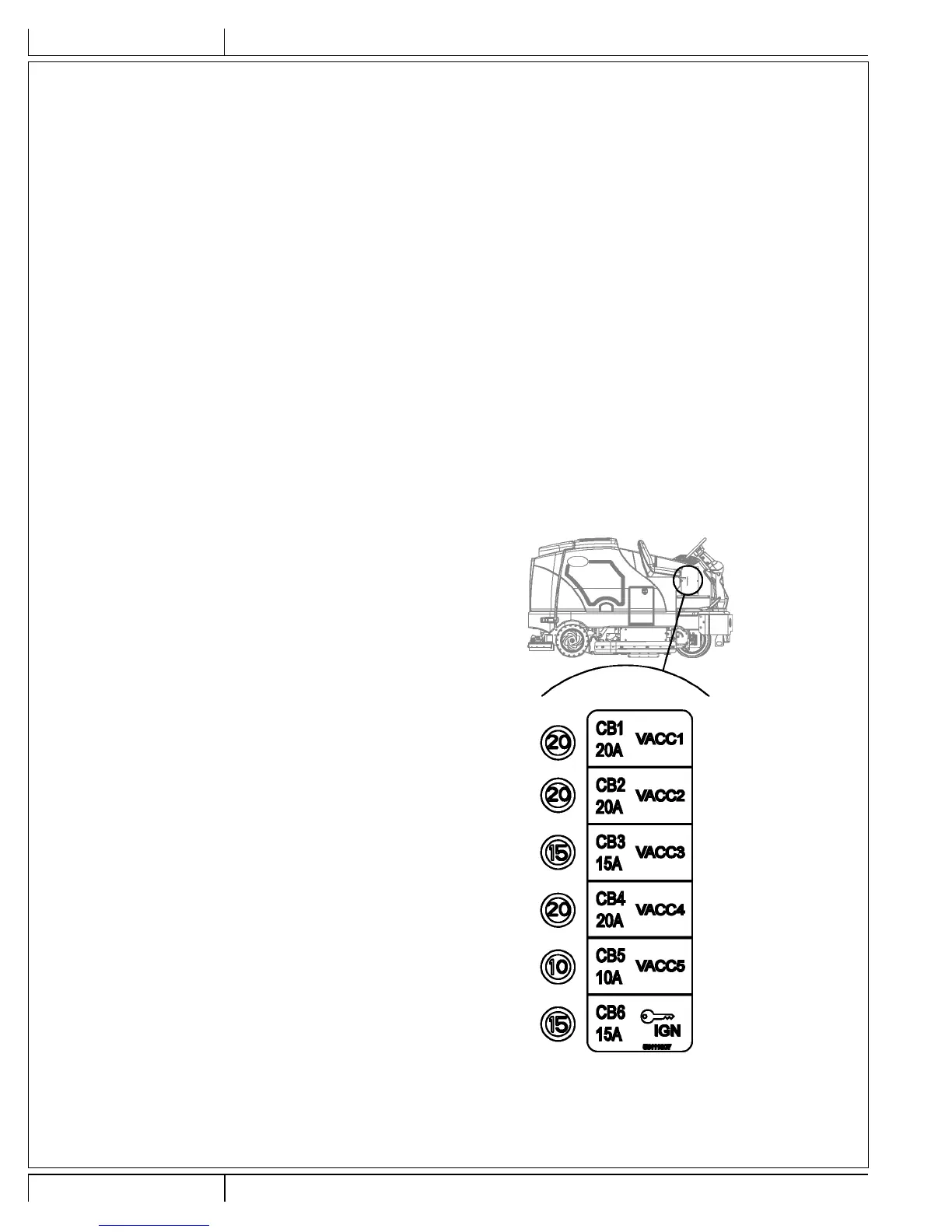

The circuit breakers are located on the Circuit Breaker Panel in the operator’s compartment; they protect electrical circuits and motors from damage due to
overload conditions. If a circuit breaker trips, try to determine the cause.
VACC1 Circuit Breaker (CB1 / 20 Amp) Possible cause may be:
1 Electrical short circuit (have your Nilfi sk Service Center or qualifi ed electrician check the machine)
VACC2 Circuit Breaker (CB2 / 20 Amp) Possible cause may be:
1 Electrical short circuit (have your Nilfi sk Service Center or qualifi ed electrician check the machine)
VACC3 Circuit Breaker (CB3 / 15 Amp) Possible cause may be:
1 Electrical short circuit (have your Nilfi sk Service Center or qualifi ed electrician check the machine)
VACC4 Circuit Breaker (CB4 / 20 Amp) Possible cause may be:
1 Electrical short circuit (have your Nilfi sk Service Center or qualifi ed electrician check the machine)
VACC5 Circuit Breaker (CB5 / 10 Amp) Possible cause may be:
1 Electrical short circuit (have your Nilfi sk Service Center or qualifi ed electrician check the machine)
Ignition Circuit Breaker (CB 6 / 15 Amp) Possible cause may be:
1 Electrical short circuit (have your Nilfi sk Service Center or qualifi ed electrician check the machine)
Once the problem has been corrected, push the button in to reset the circuit breaker. If the button does not stay in, wait 5 minutes and try again. If the circuit
breaker trips repeatedly, call your Nilfi sk Service Center for service.
VACC1 Circuit Breaker (CB1)
Right Rear Stop/Turn Lamp
Left Rear Stop/Turn Lamp
Right Front Turn Lamp
Left Front Turn Lamp
Rear Tail Lamps
Head Lamps
VACC2 Circuit Breaker (CB2)
Wash Hose Solution Pump (M8)
Side Sweep Mist Pump (M5)
VACC3 Circuit Breaker (CB3)
Side Sweep Lift Actuator Motor (M7)
VACC4 Circuit Breaker (CB4)
Scrub Brush Solenoid (L4)
Scrub Pressure Down (L5)
Scrub Cylinder Lock Solenoid (L6)
Scrub Pressure Up (L7)
Side Sweep / Scrub Solenoid (L8)
Side Scrub Lift Solenoid (L9)
Main Solution Solenoid Valve (L10)
Side Scrub Solution Solenoid Valve (L11)
Extended Scrub Water Solution Solenoid
Chemical Pump
VACC5 Circuit Breaker (CB5)
Vacuum Motor Solenoid (L1)
Squeegee Down Solenoid (L3)
Squeegee Up Solenoid (L3)
Main Solution Pump (M4)
Extended Scrub Pump (M6)
IGN Circuit Breaker (CB6)
Glow Plug Relay
Main Power Relay
Backup Audible Alarm
Horn
Engine System (fuel pump and ignition system)
Dash Board Panel
