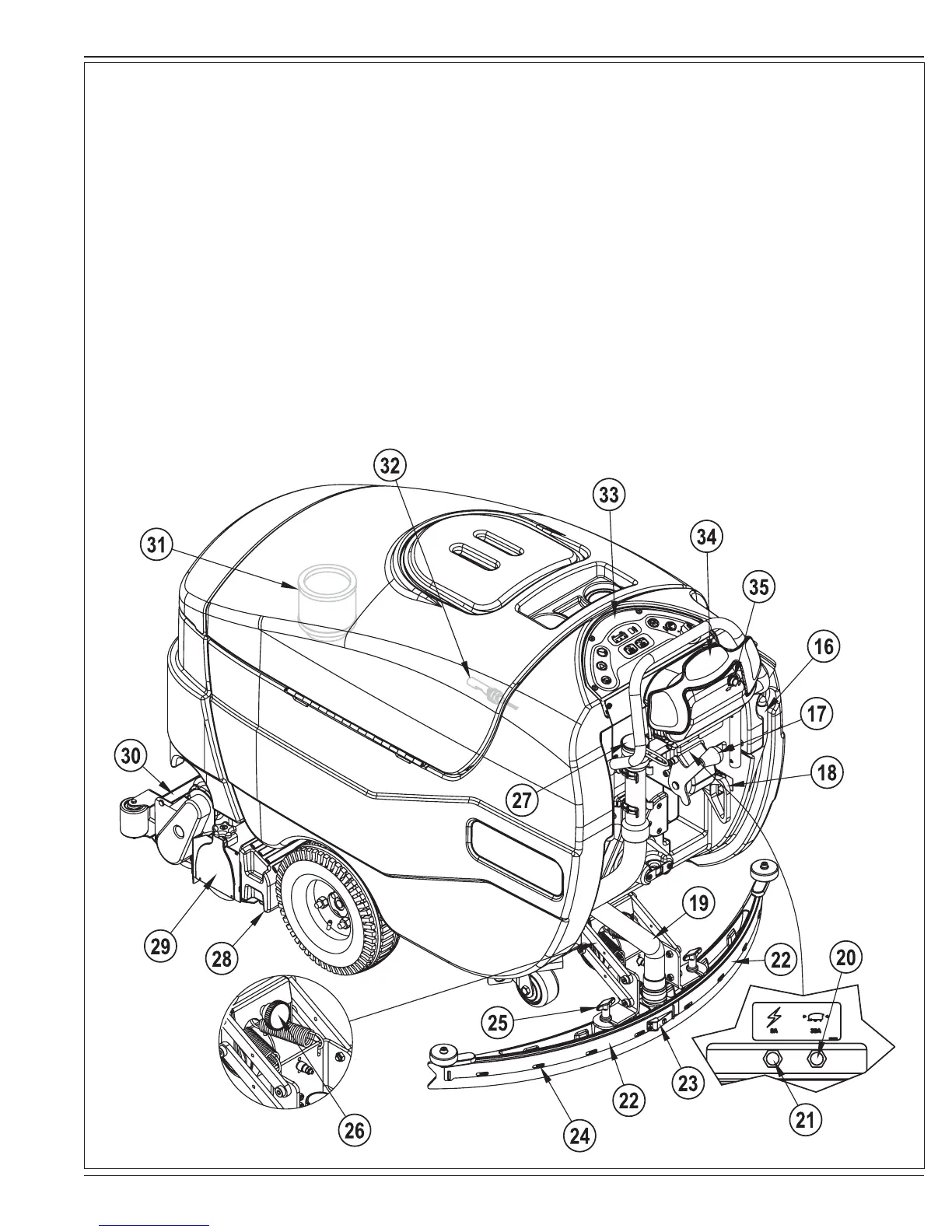

KNOW YOUR MACHINE
16 Solution Drain Hose / Level Indicator
17 Squeegee Raise / Lower Lever
18 Battery Pack Connector (non onboard charger models only)
19 Recovery Hose
20 Wheel Drive Circuit Breaker
21 Control Circuit Circuit Breaker
22 Squeegee Blade Tension Strap
23 Squeegee Blade Latch
24 Squeegee Blade Alignment Pins
25 Squeegee Mount Thumb Nut
26 Squeegee Adjustment Knob
27 Recovery Tank Drain Hose
28 Debris Hopper (Cylindrical Models Only)
29 Idler Assembly (Cylindrical Models Only)
30 Solution Manifold (Cylindrical Models Only)
31 Extended Scrub Filter (Optional)
32 Vacuum Shut Off Switch
33 Control Panel
34 Drive Paddle
35 Speed Limit Control Knob
