Nilfisk-Advance warrior st - AXP;EDS Control Panel Overview

A-8 / ENGLISH
A-8 - FORM NO. - 56041619 - Warrior
™
ST, Warrior
™
AXP / BA 755 series
Ø.4
!
!
A
B
C
E
F
G
H
I
D
D1
D2
D3
D4 D5
D6
D7
D8
D

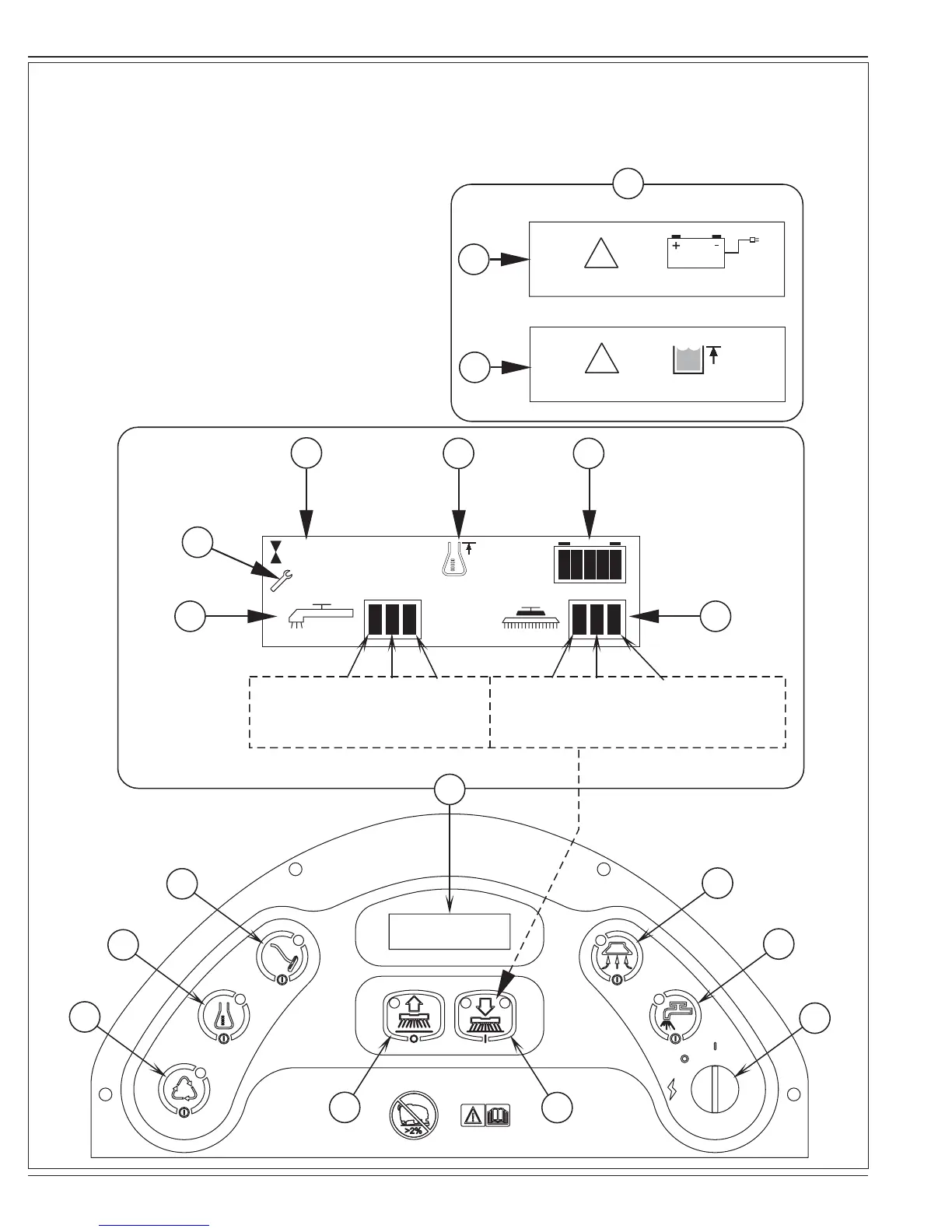

CONTROL PANEL – AXP/EDS
A Key Switch (Main Power)
B Solution Switch
C Vacuum Switch
D Display Panel
D1 Solution Flow Indicator
D2 Fault Indicator
D3 Hour Meter
D4 AXP/EDS Indicator
D5 Battery Indicator
D6 Scrub Pressure Indicator
D7 Recovery Tank FULL Indicator
D8 Battery Low Indicator
E Wand Switch (Dealer Installed Option)
F Detergent System (AXP/EDS models only)
G Extended Scrub System (Dealer Installed Option)
H Scrub OFF
I Scrub ON
Regular Heavy Extreme Regular Heavy Extreme
Scrub Scrub Scrub Scrub Scrub Scrub
(press once) (press twice) (hold 5 sec.)
revised 3/06
