A-14 / ENGLISH
A-14 - FORM NO. - 56041619 - Warrior
™
ST, Warrior
™
AXP / BA 755 series
DETERGENT (AXP/EDS) SYSTEM PREPARATION AND USE
revised 3/06

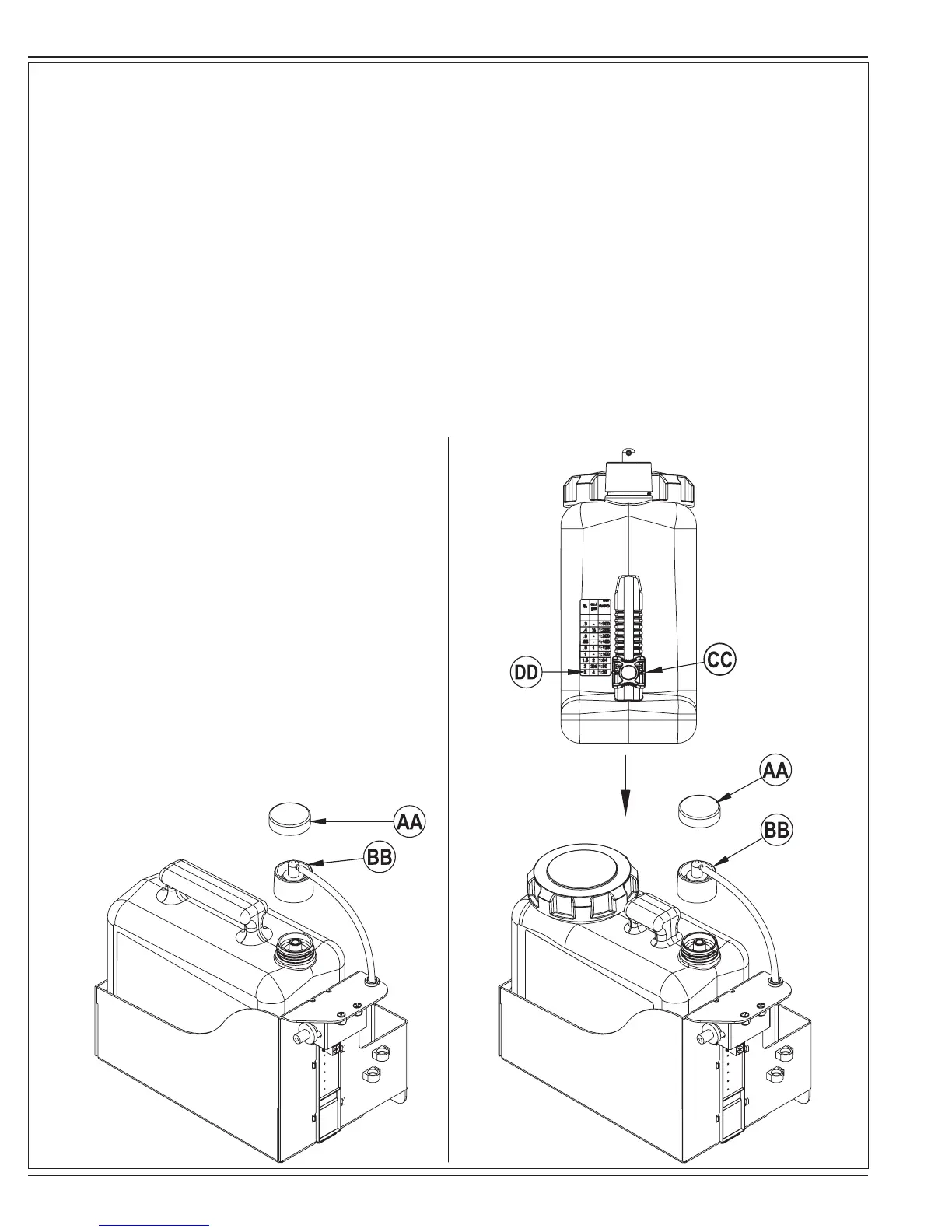

NON-DISPOSABLE CARTRIDGE SPECIFIC INSTRUCTIONS:
Fill the detergent cartridge with a maximum of 1.25 gallons (4.73
Liters) of detergent. SERVICE NOTE: Remove the detergent cartridge
from the detergent box prior to fi lling to avoid spilling detergent on the
machine.
It is recommended that a separate cartridge be used for each detergent
you plan to use. The detergent cartridges have a white decal on them
so you can write the detergent name on each cartridge to avoid mixing
them up. The detergent cartridge has a Magnetic Slider (CC) on one
end that needs to be set to the proper dilution ratio according to the
dilution instructions on the manufacturer’s bottle. Slide the Magnet
Slider (CC) to the appropriate location on Detergent Dilution Ratio Decal
(DD). When installing a new cartridge, remove the Cap (AA) and place
the cartridge in the detergent box. Install the Dry Break Cap (BB) as
shown.
COMMON INSTRUCTIONS:
The system should be purged of previous detergent when switching to
a different detergent. SERVICE NOTE: Move machine over fl oor drain
before purging because a small amount of detergent will be dispensed
in the process.
To Purge When Changing Chemicals:
1 Disconnect and remove the detergent cartridge.
2 Turn the Key Switch (A) ON and press the Detergent Switch (F)
and the Solution Switch (B) down for at least 2 seconds. NOTE:
Once activated the purge process takes 10 seconds. See
illustration on next page for Detergent System indicators. Normally
one purge cycle is adequate to purge the system.
To Purge Weekly:
1 Disconnect and remove the detergent cartridge. Install and
connect a Cartridge fi lled with clean water
2 Turn the Key Switch (A) ON and press the Detergent Switch (F)
and the Solution Switch (B) down for at least 2 seconds. NOTE:
Once activated the purge process takes 10 seconds. See
illustration on next page for Detergent System indicators. Normally
one purge cycle is adequate to purge the system.
When the Detergent Cartridge is almost empty a Display Panel (D)
indicator will come on. This “Low Detergent” indicator will remain on
until you reset the system. Once this indicator comes on you should
be able to simply pour an entire gallon bottle of detergent into the
Cartridge to refi ll without worrying about measuring. NOTE: Only reset
the system when the cartridge is full. When switching cartridges, the
“Low Detergent” indicator is only accurate if the replacement cartridge
is at the same level as the cartridge being replaced.
To Reset:
1 Turn the Key Switch (A) ON and hold the Detergent Switch (F)
down for 2 seconds. See illustration on next page for Detergent
System indicators.
DISPOSABLE CARTRIDGE SPECIFIC INSTRUCTIONS:
Remove the Cap (AA) and place the cartridge in the detergent box.
Install the Dry Break Cap (BB) as shown.

Nilfisk-Advance warrior st Specifications

General

Recovery tank capacity	14 gal (53 L)
Power source	Battery
Cleaning path	510 mm
Voltage	24 V
Working Width	510 mm
Solution tank capacity	12 gal (45 L)
Water Tank Capacity	12 gal (45 L)
Max Speed	2.8 mph (4.5 km/h)
