Motor/pump removal

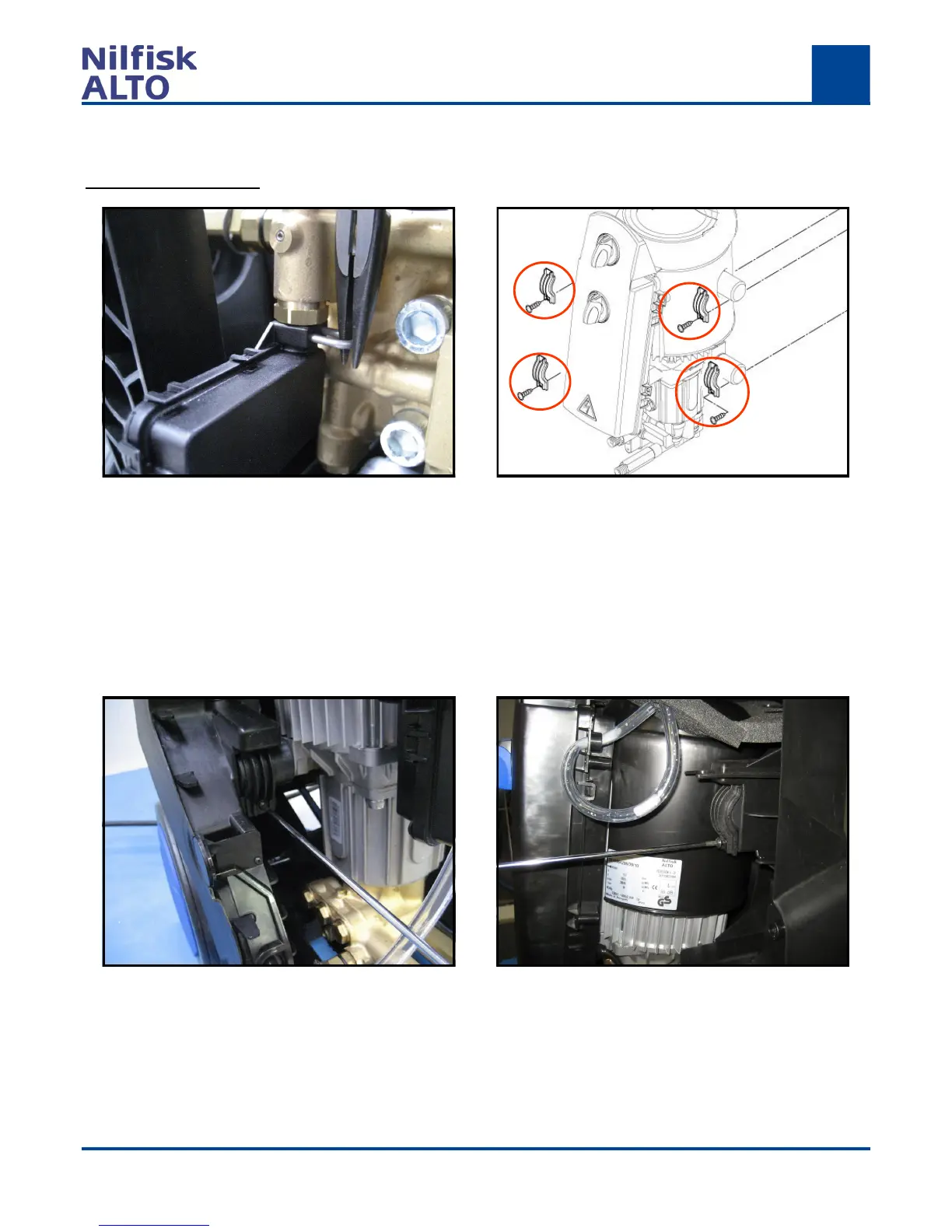

Fig.F.9: Clamp for micro switch housing
Fig.F.11: Motor bracket Fig.F.12: Motor/pump remove
•Remove the clamp using a pair of nose
pliers.
•Note the position of the clamp.
•Dismount the 4 motor brackets using a torx
20 screwdriver.
•The motor/pump unit is mounted in 4
brackets.
Fig.F.10: Motor suspension
•When the 4 screws are loosened, the
motor/pump unit can be removed from the
frame.
