Service / Repair
19
Before doing any repair work, remove the
cover by unscrewing the 6 torx screws on
the backside of the cleaner.

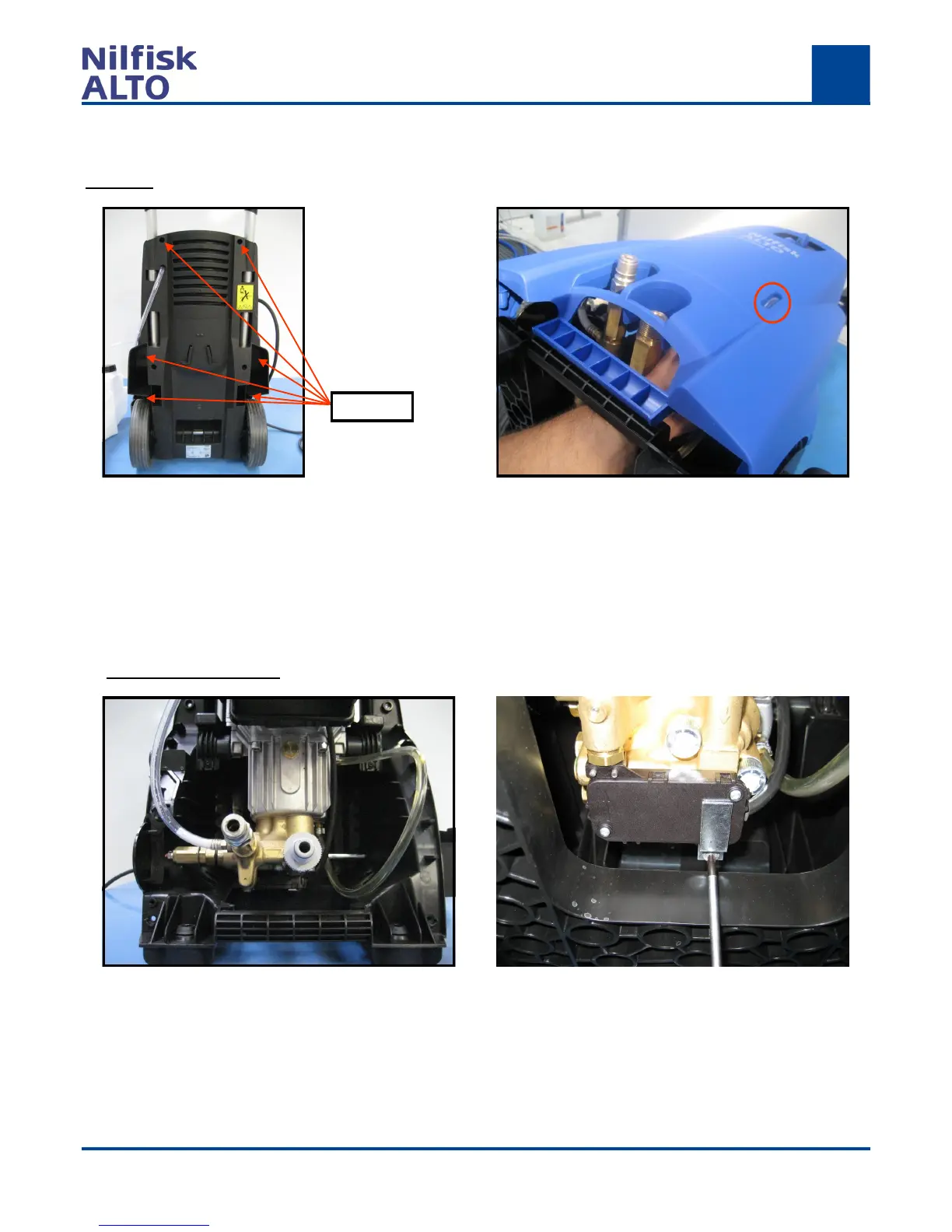

Fig.F.5: Cover Screws - Removal
Chassis
Fig.F.6: Oil hose
•Remove oil level hose from it`s bracket,
entering the cleaner form the bottom of the
machine.
Fig.F.7: pump head with connections Fig.F.8: Bracket for micro switch
6x Torx
Motor/pump removal
•To dismount the pump head.
•Remove all connections: micro switch and
detergent hose.
•Remove the HP hose (plus-version)
•Remove the bracket for micro switch using
a torx 20 screwdriver
