F
SM_POSEIDON 4_en_Ver.1.0_08.2012
Service / Repair
30
Torque Settings
* Refer to page for assembling instructions.
** Use Loctite 243 or equivalent product at assembly.
Name Size Torque Page*
Regulation Safety Block M18(1,0) 15 Nm 22
Plug (Valves) M18(1,0) 50 Nm 24
Union nut (Start/Stop control piston) M12(1,25) 15 Nm 23
Cartridge easy start valve M12(1,0) 10 Nm 23
Screw (Pump head) M12(1,0)x70 50 Nm -
Screw (Wobble housing) M8(1,25)x25 25 Nm 27
Injector (HP-outlet) M18(1,0) 32 Nm 21
Plug (Oil) 3/8”Rg 20 Nm -
Hose nipple (Oil) 1/8”Rg 4 Nm -
Water inlet (Filter housing) 1/2”Rg 25 Nm -
Motor studs for bearing covers M5(0,8)x210 5 Nm -

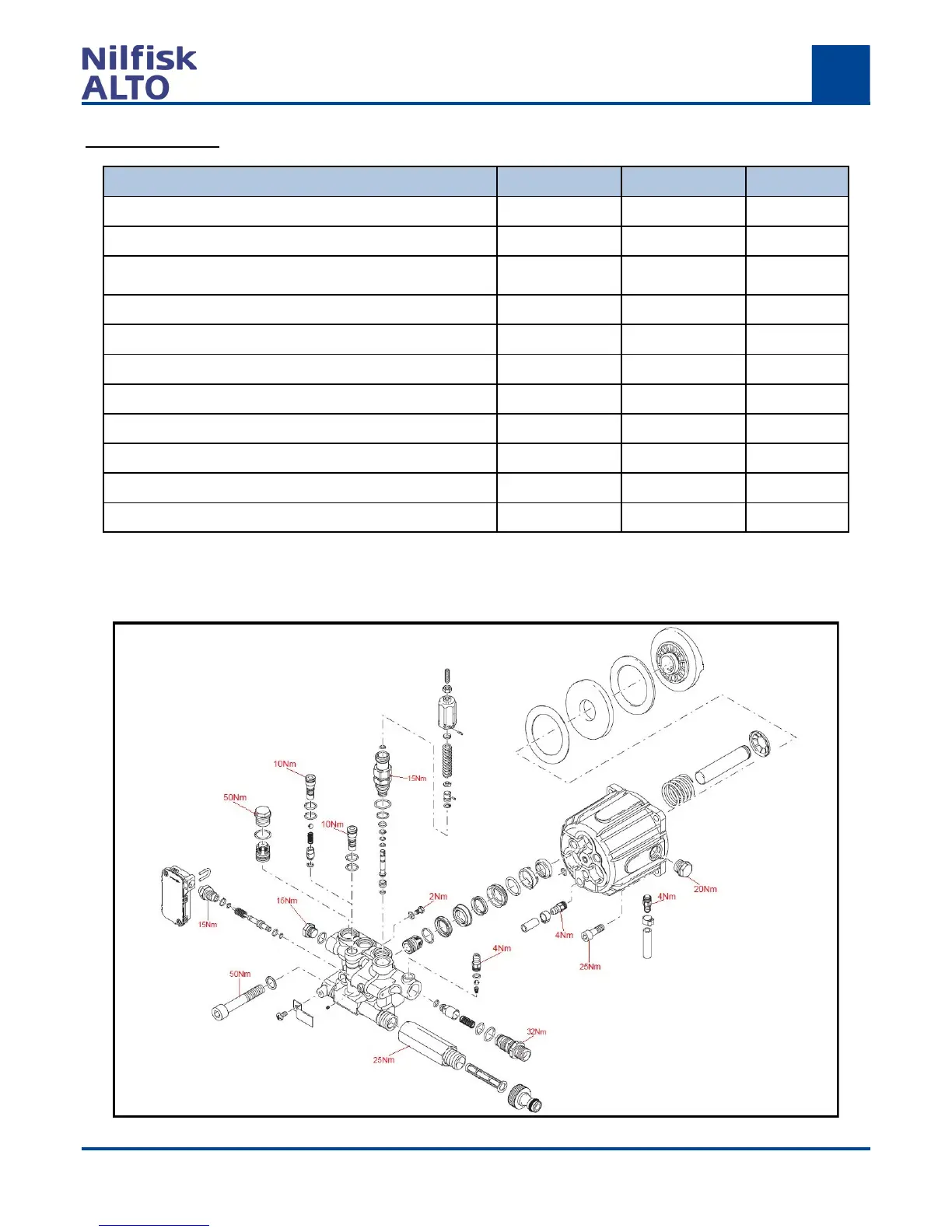

Fig.F.47: Torque settings
