Valves
•Use e.g. a screw with coarse threads to
pull out the valves.
•Beware not to damage the seals, if they
don`t need replacement.

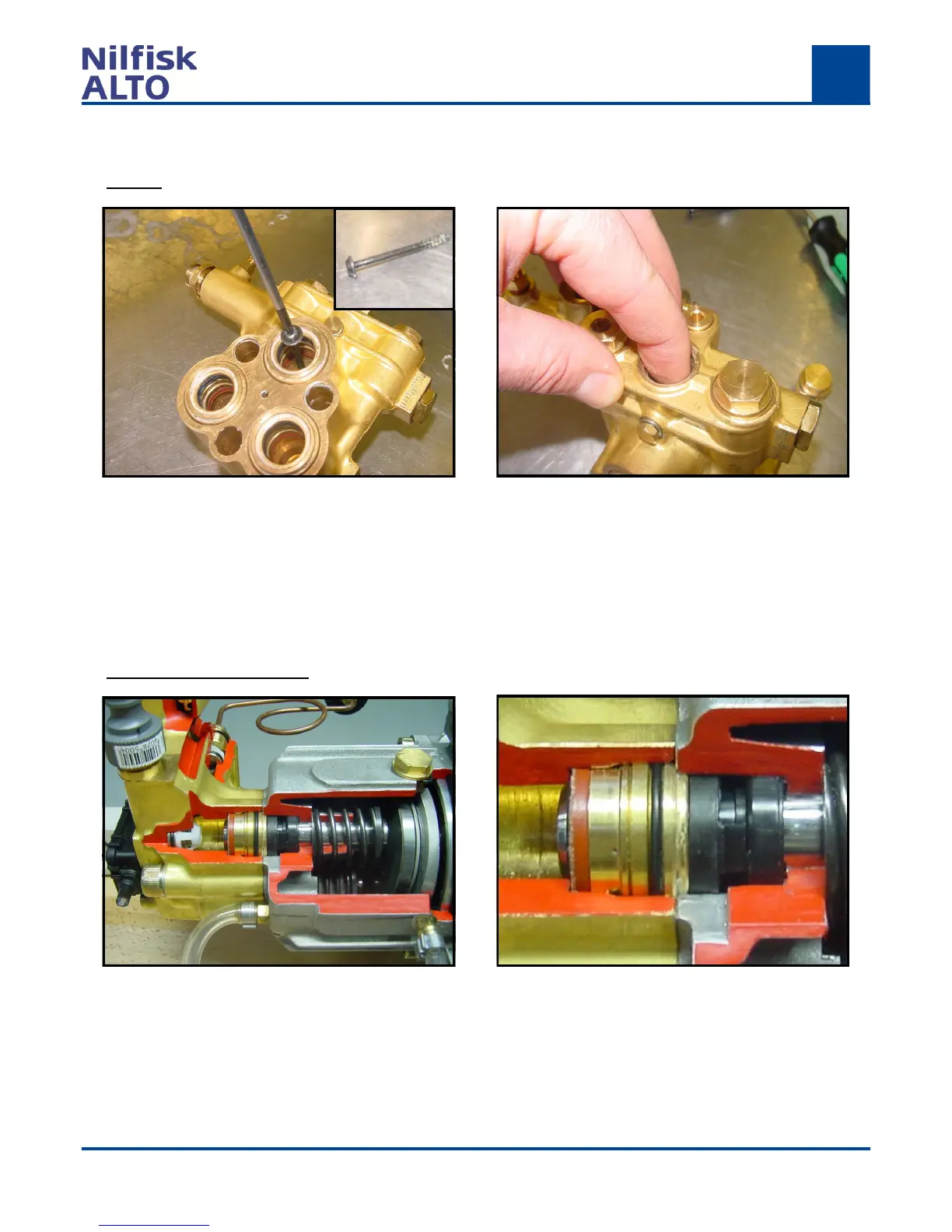

Fig.F.30: Valve replacement
•Grease o-rings lightly before reassembly.
•Press down firmly with your finger.
•Tighten plug (pressure valves) according to
torque settings.
Fig.F.29: Valve replacement
Piston guides and Seals
Fig.F.31: Pump Fig.F.32: Piston guides and seals
•Picture shows a cut view of the pump. •Picture shows a cut view of the piston
guides and the seals.
