STRUCTURE

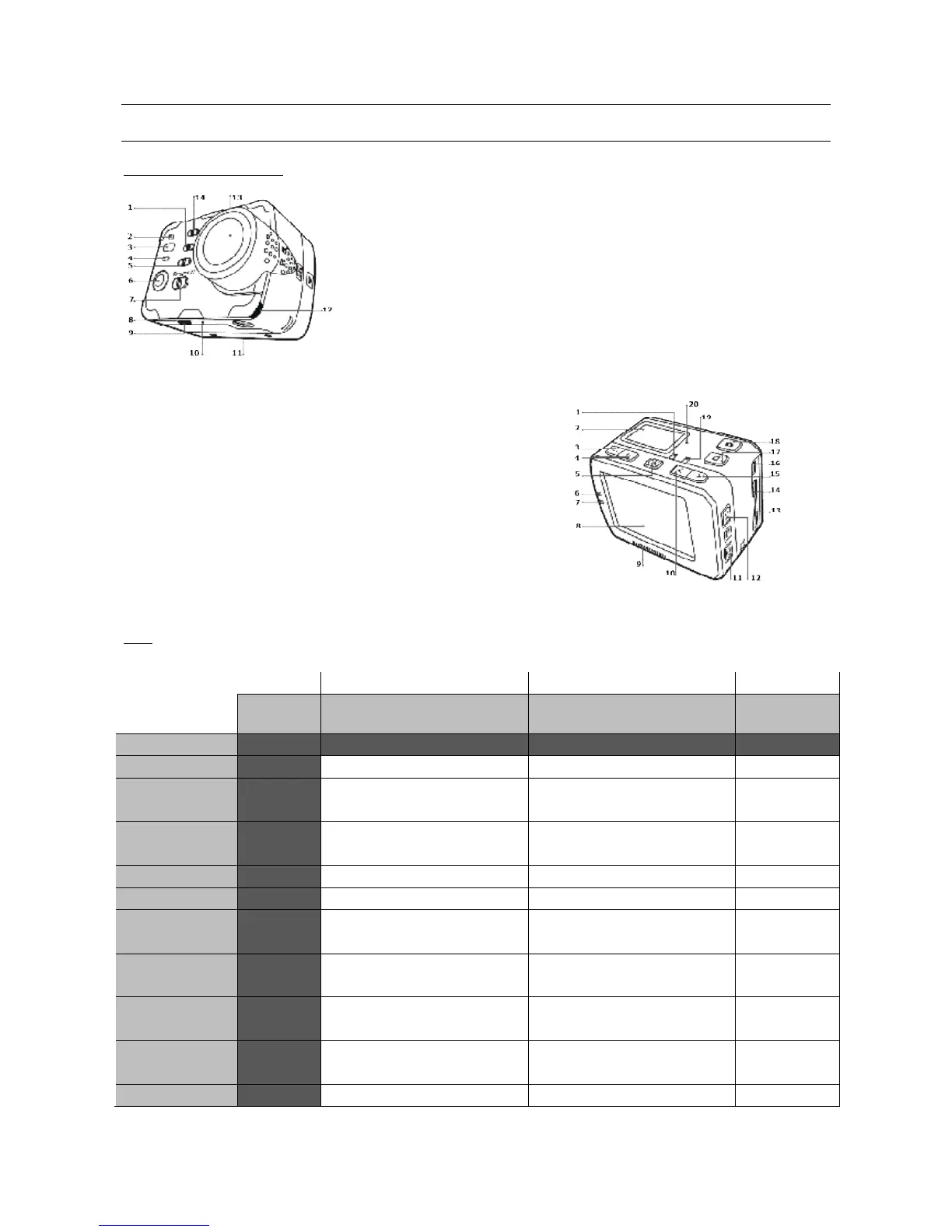

EVO MM93 STRUCTURE
1. Exposure meter
2. Blue Wi-Fi status led (a)
3. Green status led
4. Red status led (b)
5. G-sensor
6. "Record" Key
7. Power Switch
8. Status led
(available for future
use)
9. Battery lock release
10. Microphone
11. Threaded interface
12. Green status led (c)
13. Lens unit
1.Green status led (d)
2.LCD Display
3.Downward Key
4.Upward Key
5.OK Key
6.Status led
(available for future use)
7.Status led
(available for future use)
8.TFT display
9.Speaker
10.Left Key
11.Photo and video view key
12.Menu Key
13.MicroSD Slot
14.USB interface
15.Right Key
16.Mini HDMI Interface
17.Stop Key
18.Shutter key
19.Red status led (e)
20.Microphone
LED
Red Led
Green Led
Blue Led
Position
Front (b), Top (e)
Front (d) Top (e) Bottom
(c)
Front (a)
Status
Power
On
Video
recording
Slow flashing
Audio
recording
Slow flashing
Shoot photo
Single flash
Mem. full
On
Charging
(if off)
Slow flashing
Charge
(if off)
On
Low battery
level
5 sec. fast flashing, then off
Data
transmission
Slow flashing
WI
-
FI on
Slow flashing
