Vibratory Track Screw Feeder FF/FM503H ver2
22

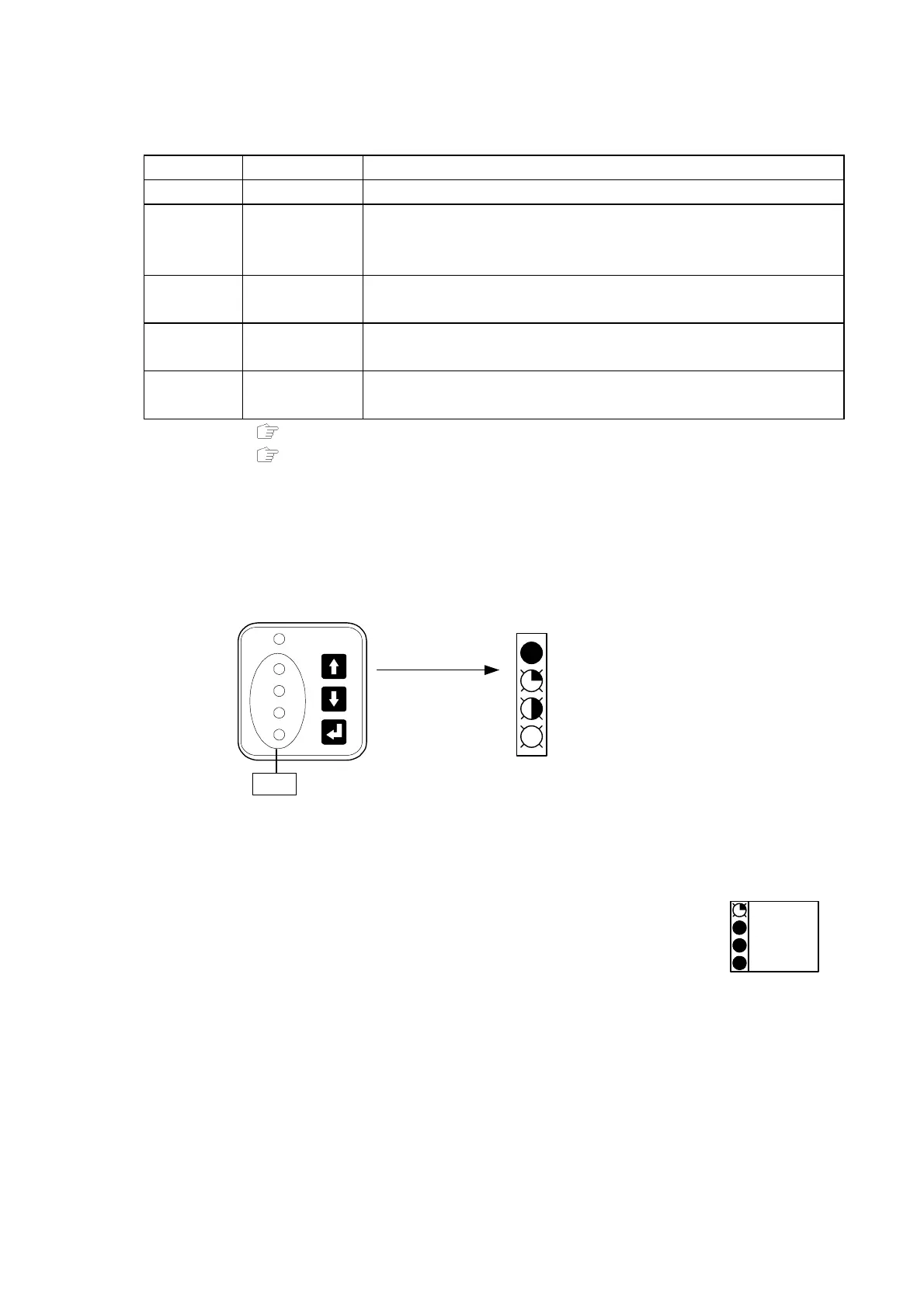

8.1.3. Indication by LEDs
Details of statuses indicated by LEDs on the setup panel are as shown in the table below.
Indications
Display color Functions
POWER Green • It is lit up when power is turned ON.
4RUN
(=LED4)
Orange • It is lit up during running of the machine.
• It is lit up when fault occurs. (Note 1)
• It is lit up while the machine is in the setup mode. (Note 2)
3FEED.
(=LED3)
Orange • It is lit up while the screw feeding time (hand driver type) is set up.
• It is lit up while the machine is in the setup mode. (Note 2)
2VIB.
(=LED2)
Orange • It is lit up when the vibrator vibration strength is set up.
• It is lit up while the machine is in the setup mode. (Note 2)
1FREQ.
(=LED1)
Orange • It is lit up when the vibrator vibration frequency is set up.
• It is lit up while the machine is in the setup mode. (Note 2)
Note 1: Refer to “10.1 Malfunction”.
Note 2: Refer to “8.2 Setup and adjustment procedures”.
In the setup and adjustment mode, as shown in the figure below, the combination of 4 statuses (lit up, flashing
at longer intervals, flashing at shorter intervals, unlit) of the 4 LEDs of LED1 (=1
FREQ.) to LED4
(=4
RUN) on the setup panel is changed with the key for setup and adjustment. (Hereinafter the statuses of
the LEDs are described with simplified symbols.)
LED
1
機能一覧表（後述）では
ＬＥＤ１から４を右のように
簡略化して表記しています
ＬＥＤ１点灯：ＬＥＤ１点灯
2
3
4
ＬＥＤ２点滅（遅）
ＬＥＤ３点滅（速）
ＬＥＤ４消灯
：ＬＥＤ３点滅(on/off=0.1sec/0.1sec)
：ＬＥＤ２点滅(on/off=0.5sec/0.5sec)
（記号内の数字はＬＥＤ番号を示す）
(Example)
The figure shown to the right indicates that the statuses of the LEDs in the “Normal running” mode are as
follows.
LED4: LED4 flashing (at shorter intervals) (on/off=0.1 sec/0.1 sec)
3: LED3 unlit
2: LED2 unlit
LED1: LED1 unlit
Normal
running
1
2
3
4
In the function list (described
later), the statuses of the
LEDs are described with
simplified symbols as shown
to the right.
LED3 flashing (at shorter intervals)
: LED3 flashing (on/off=0.1 sec/0.1 sec)
LED2 flashing (at longer intervals)
: LED2 flashing (on/off=0.5 sec/0.5 sec)
LED1 lit up: LED1 lit up
(The number in the symbol indicates the LED No.)
To Next Page
