Vibratory Track Screw Feeder FF/FM503H ver2
39

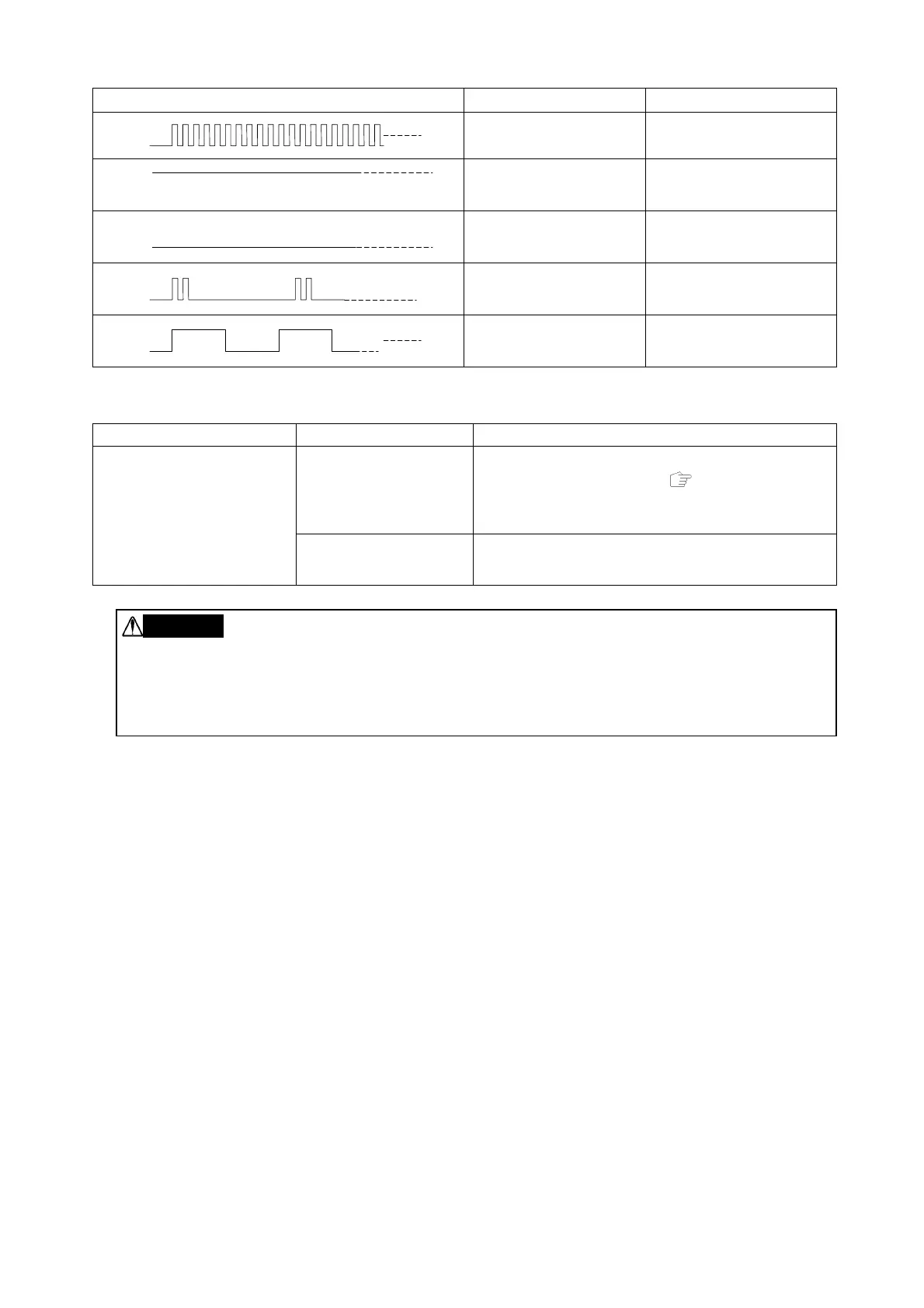

LED4 display pattern Cause Corrective measure
Continues
ON
OFF
0.1s
0.1s
Normal operation No problem
ON
OFF
CPU stops operation
Repair or replace main unit
unless it recovers after
powered on again.
ON
OFF
CPU stops operation
Repair or replace main unit
unless it recovers after
powered on again.
ON
OFF
2.0s
0.1s
2.0s
Repeats
0.1s0.1s
0.1s
0.1s
0.1s
Control section power failure
(5V)
Repair or replace main unit
unless it recovers after
powered on again.
Continues
ON
OFF
1.0s
1.0s
1.0s
Hopper track stops for a long
time due to absence of
screws.
Turn on power again or input
screw feeding signal.
10.2. Other malfunctions
Symptom Cause Corrective measure
Power LED (Green) on
setup panel does not light
up even when the power is
turned on.
Fuse is blown
Replace the fuse on the rear panel with a specified
one shown below. (Refer to [9] in “2.3.2 Back
face” and “12.1 Specifications”.)
If the fuse blows again, repair or replace main unit.
Failures of PCB, power
supply, etc.
Repair or replace main unit.
WARNING
If you replace the fuse in fuse holder (FU2 or FU3), be sure to use a specified one. If
replaced fuse blows again, ask our sales agent or your nearest sales office of Nitto
Seiko Co., Ltd. for repair.
Model: 0215004. MXP made by Littelfuse
(5 × 20 mm 250 VAC 4 A time lag type complying with RoHS)
To Next Page
