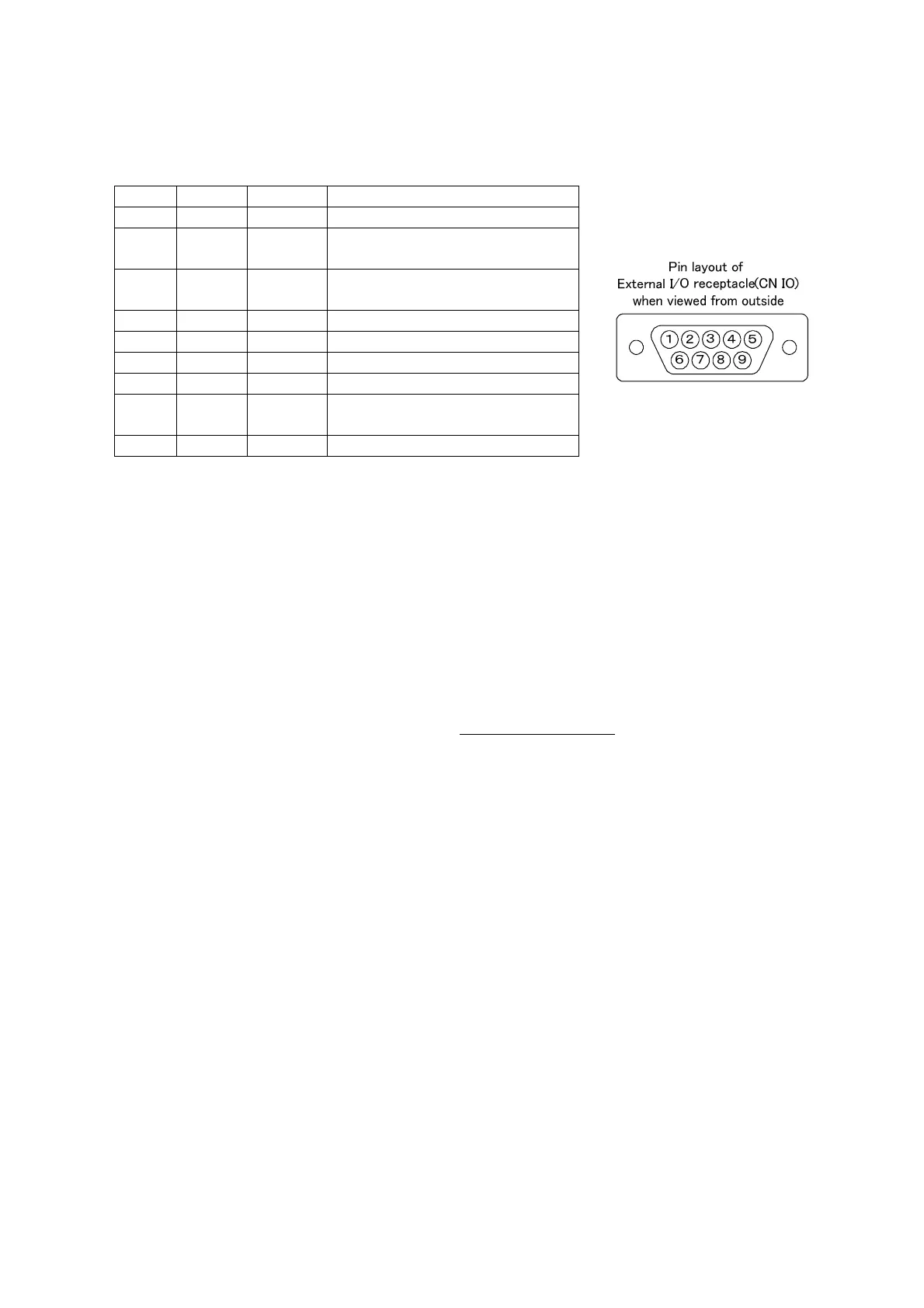

12.2. External I/O receptacle (CN IO) pin layout
12.2.1. External I/O receptacle (CN IO) pin layout (SINK (NPN) type)
Pin No.
Signal Type Signal description
1 EX0V Common
0 VDC (External supply)
2 EXOT3*
Output Taking-out enable
(Screw taking-out type) [optional]
3 EXOT2*
Output Lack of screw on track
(Standard:Automatic type)
4 EXOT1*
Output Spare
5 EXOT0*
Output Lack of screw in basket [Optional]
6
7 EXIN0*
Input Screw feeding (Automatic type)
8 EXIN1*
Input Operation enable
(Screw taking-out type) [optional]
9 EX24V Common
24 VDC (External supply)
Main-body-side receptacle [DE-9PF-N (JAE) Dsub 9P pin / D20418-J3F (JAE) M2.6 screw mating fixed base]
Applicable plug [XM2D-0901 (Omron) Dsub 9P socket / XM2S-0911 (Omron) M2.6 screw hood]
Electrical specifications
(1) Input signal: Photocoupler insulation
Input current: 10 mA/24 VDC
To be input with non-voltage contact or open collector.
(2) Output signal: Photocoupler insulation
Maximum output current: 40 mA/24 VDC (Resistance load)
For inductive load, be sure to use an external diode or others for protection.
Overcurrent protection is not incorporated. Be careful that short-circuit may result in a fault.
(3) Power supply (To be prepared by customers)
Prepare an external stabilized power supply of 24 VDC 200 mA (Max).
