Nitto Seiko FF503H - External I;O Receptacle (CN IO) Pin Layout (SOURCE (PNP) Type)

Vibratory Track Screw Feeder FF/FM503H ver2
45

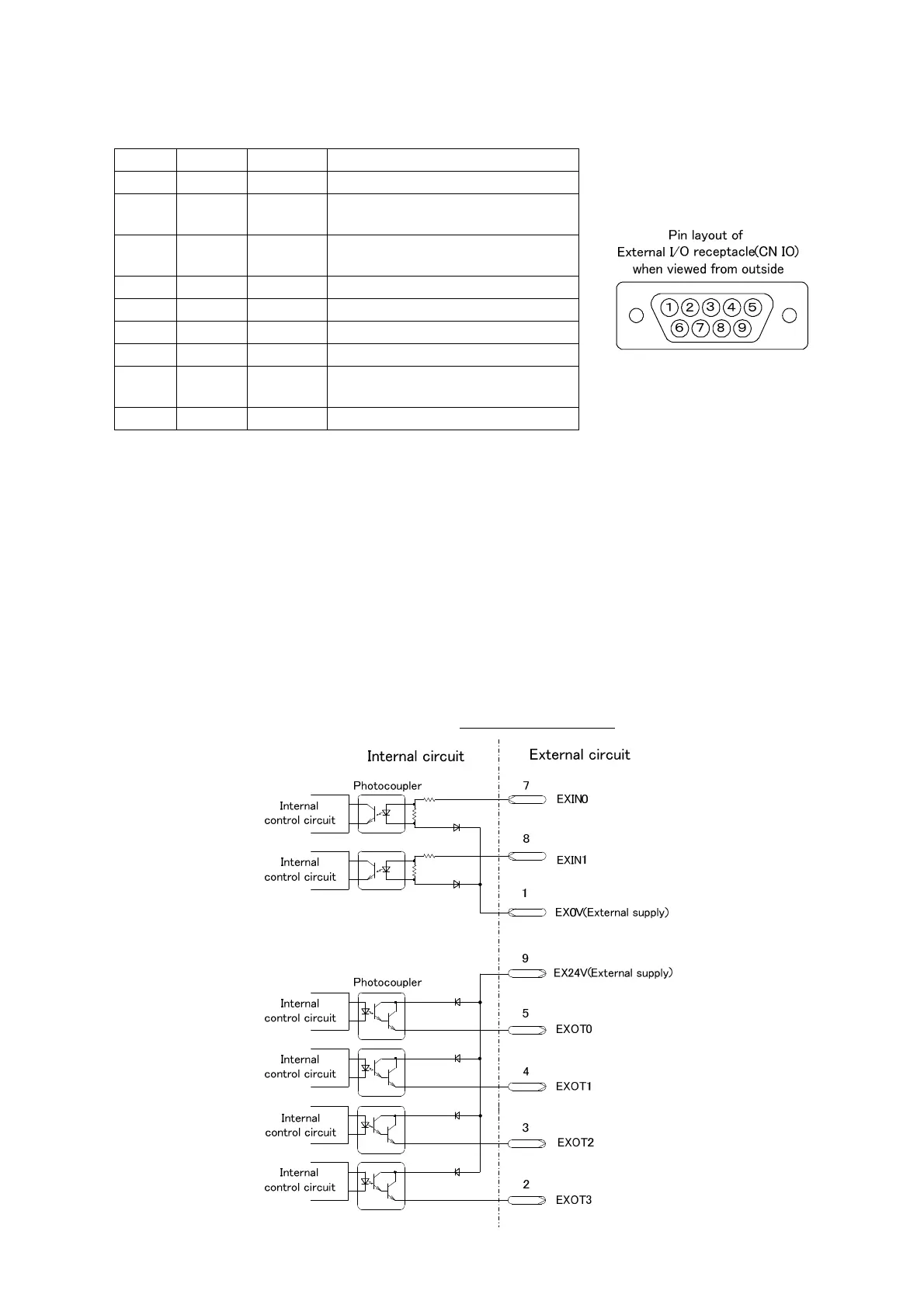

12.2.2. External I/O receptacle (CN IO) pin layout (SOURCE (PNP) type)
Pin No. Signal Type Signal description
1 EX0V Common 0 VDC (External supply)
2 EXOT3 Output
Taking-out enable
(Screw taking-out type) [optional]
3 EXOT2 Output
Lack of screw on track
(Standard:Automatic type)
4 EXOT1 Output
Spare
5 EXOT0 Output
Lack of screw in basket [Optional]
6
7 EXIN0 Input
Screw feeding (Automatic type)
8 EXIN1 Input
Operation enable
(Screw taking-out type) [optional]
9 EX24V Common
24 VDC (External supply)
Main-body-side receptacle [DE-9PF-N (JAE) Dsub 9P pin / D20418-J3F (JAE) M2.6 screw mating fixed base]
Applicable plug [XM2D-0901 (Omron) Dsub 9P socket / XM2S-0911 (Omron) M2.6 screw hood]
When taking an order by the SOURCE (PNP) type , a “yellow circle”seal is stuck and shipped in the upper part
of the “CN IO” receptacle of the back panel at the time of shipment.
Electrical specifications
(1) Input signal: Photocoupler insulation
Input current: 10 mA/24 VDC
To be input with non-voltage contact or open collector.
(2) Output signal: Photocoupler insulation
Maximum output current: 40 mA/24 VDC (Resistance load)
For inductive load, be sure to use an external diode or others for protection.
Overcurrent protection is not incorporated. Be careful that short-circuit may result in a fault.
(3) Power supply (To be prepared by customers)
Prepare an external stabilized power supply of 24 VDC 200 mA (Max).
