7) Setup of basket inside lack of screw signal output waiting time (Pa.84) (optional)
Time required until the “basket inside lack of screw” signal will be output can be set up if no screw has
been detected at the proximity switch for detection of basket inside lack of screw.
(Valid when detection of basket inside residual is to be carried out.)
Variable range
From 6 to 65 sec.
Setup step 1 sec.
Default 30 sec.
8) Hopper track running start waiting time setup (Pa.85)
Time required until running of the track driving vibrator and hopper track driving motor will be started
can be set up if no screw has been detected at the photoelectric sensor position on the track.
Variable range
From 0.5 to 10.0 sec.
Setup step 0.1 sec.
Default 4.0 sec.
9) Hopper track running stop waiting time setup (Pa.86)
Time required until running of the vibrator and hopper track will be stopped can be set up if any screw
has been detected at the photoelectric sensor position on the track.
Variable range
From 0.5 to 10.0 sec.
Setup step 0.1 sec.
Default 4.0 sec.
10) Setup of vibrating time after screw feed (Pa.87)
Track driving vibrator running time required for feeding of a next screw to the escapement unit after a
screw is fed can be set up.
(Time from de-energizing of the screw feeding solenoid valve to the stop of track driving vibrator can be
set up.)
Variable range
From 0.5 to 10.0 sec.
Setup step 0.1 sec.
Default 3.0 sec.
11) Hopper track intermittent running ON time setup (Pa.88)
The hopper track starts intermittent running if the machine is run continuously for the fixed time. The
intermittent running time (ON time) can be set up.
Variable range
From 10 to 30 sec.
Setup step 1 sec.
Default 10 sec.
12) Hopper track intermittent running OFF time setup (Pa.89)
The hopper track starts intermittent running if the machine is run continuously
for the fixed time. The intermittent running time (OFF time) can be set up.
Variable range
From 10 to 30 sec.
Setup step 1 sec.
Default 10 sec.
2
4
1
3
1
2
4
3
1
2
4
3

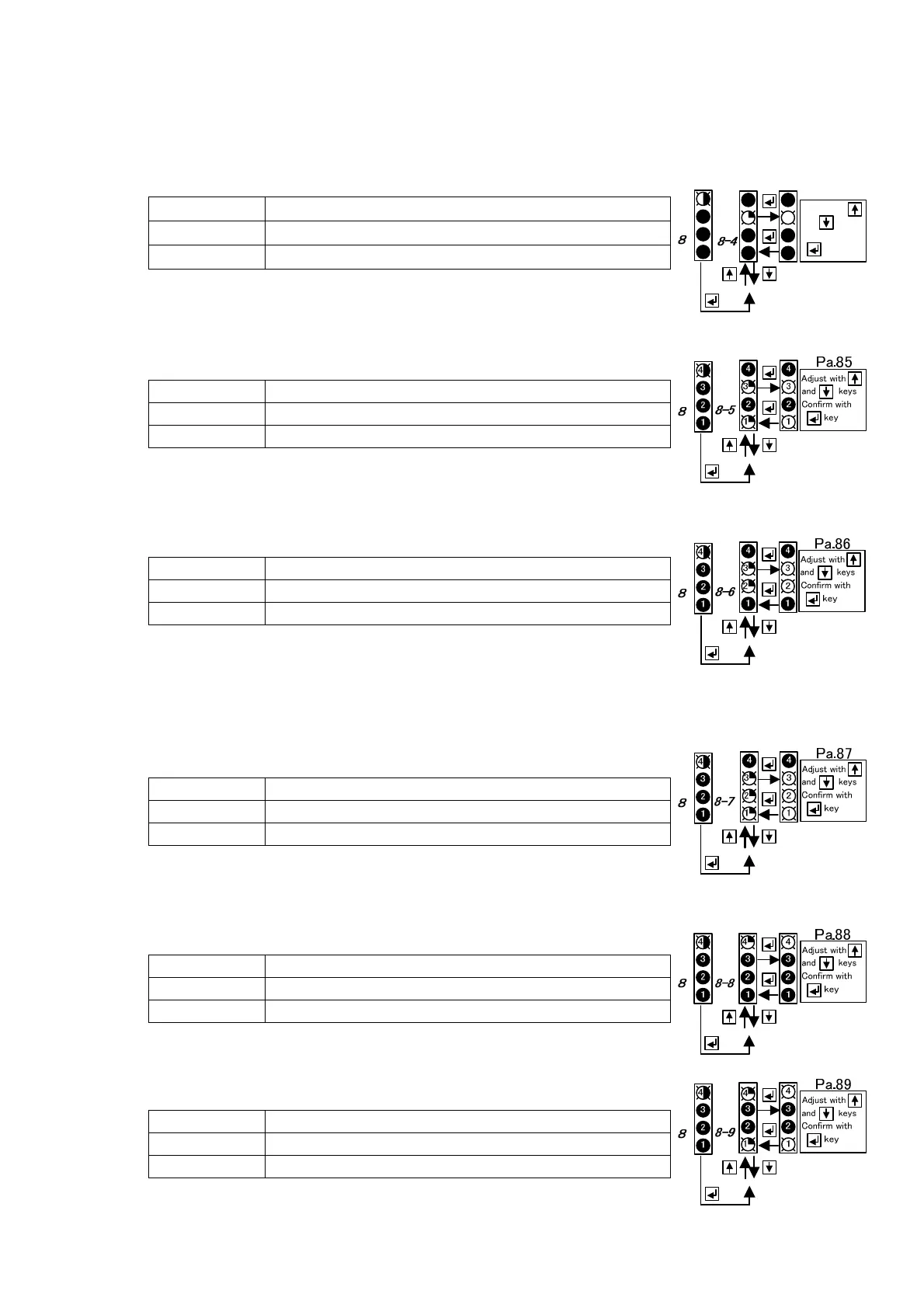

Pa.84
Adjust with
and keys
Confirm with
key
