Nobles SS2001E - Page 27

STANDARD PARTS
Speed Scrub 1701/2001/2400 (1 1--97)
27
LEVER ASSEMBLY
REF PART # DESCRIPTION QTY.
1 230661 PLATE, LOCK 2
2 140027 WASHER, FLAT 4
3 140015 WASHER, LOCK 4
4 140226 SCREW, 5/16--18X5/8 2
5 230728.BK HANDLE, SQUEEGEE LIFT 1
6 200816 GRIP, HANDLE 1
7 140510 NUT, JAM 1
8 230735 BUSHING, SPACER 2
9 140221 SCREW, 5/16--18X1--1/4 2
10 140259 SCREW, 1/4--20X5/8 1
11 140016 WASHER, LOCK 1
12 140931 CABLE, SQUEEGEE LIFT 1
REF PART # DESCRIPTION QTY.
13 140951 SCREW, 10--24X7/16 2
14 140031 WASHER, LOCK 2
15 230712 PLATE, SQUEEGEE LOCK 1
16 140208 SCREW, 1/4--20X1 1
17 140000 WASHER, FLAT 2
18 230718 LEVER, SOLUTION CONTROL 1
19 140134 BUSHING 1
20 230719.BK HANDLE, SOL.UTION CONTROL. 1
21 200816 GRIP, HANDLE 1
22 140060 WASHER, WAVE 1
23 602641 BRACKET, DRAIN HOSE 1
24 140510 NUT, JAM 1

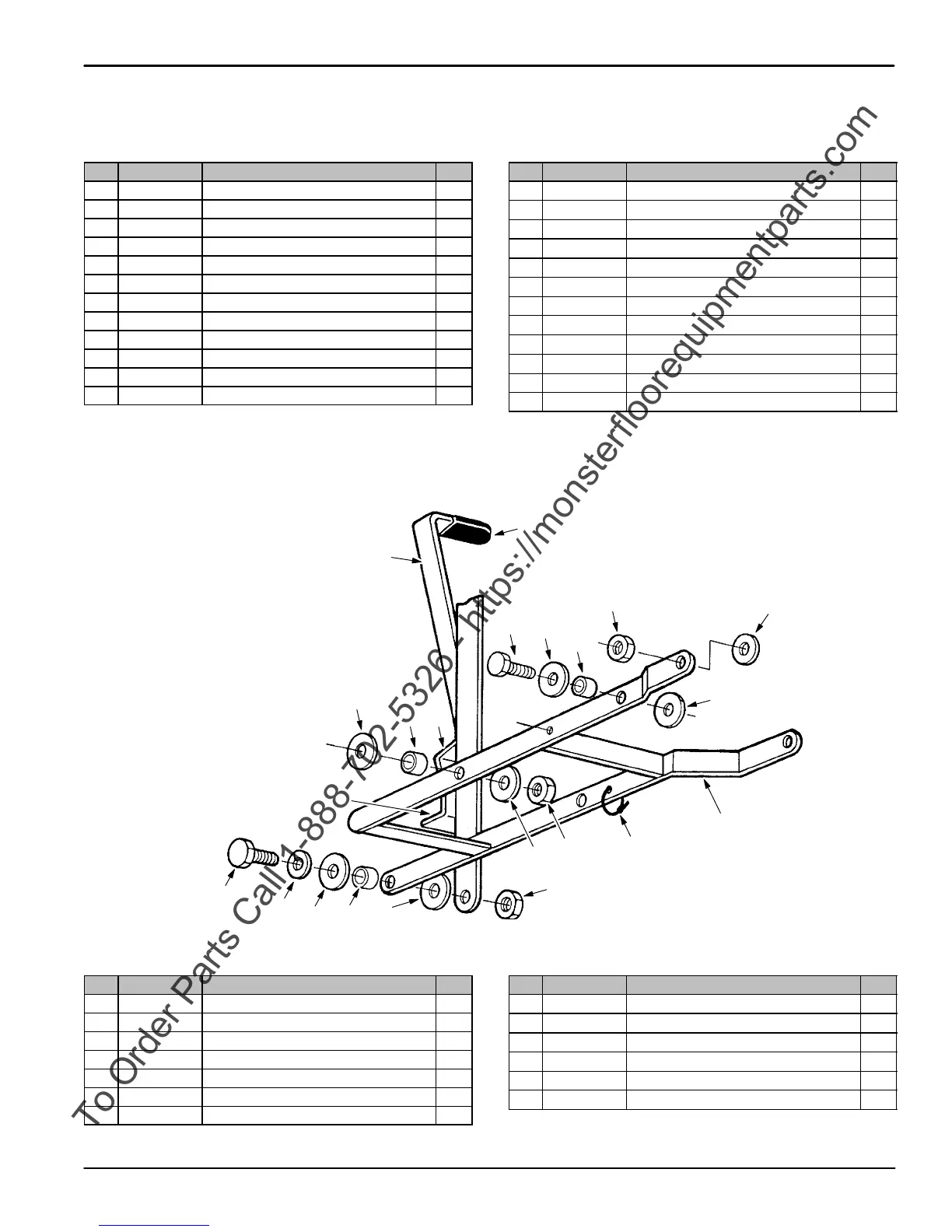

BRUSH LIFT ASSEMBLY
6
10
2
3
12
3
13
3
4
1
3
4
3
5
3
4
7
11
5
9
8
7
REF PART # DESCRIPTION QTY.
1 140236 SCREW, 31/2--13X1--1/4 1
2 140024 WASHER, LOCK 1
3 140045 WASHER, FLAT 10
4 140139 BUSHING 5
5 140516 NUT, LOCK 3
6 230874 LEVER, BRUSH LIFT FOOT 1
7 102560 SURFACING, NON--SLIP 2
REF PART # DESCRIPTION QTY.
8 130040 WIRE TIE 1
9 230870 WELDMENT, LIFT 2001 1
10 140237 SCREW, 1/2--13X1 1
11 140509 NUT, JAM 1/2--13 2001 1
12 140127 BEARING, THURST 1
13 200816 GRIP, HANDLE 1
