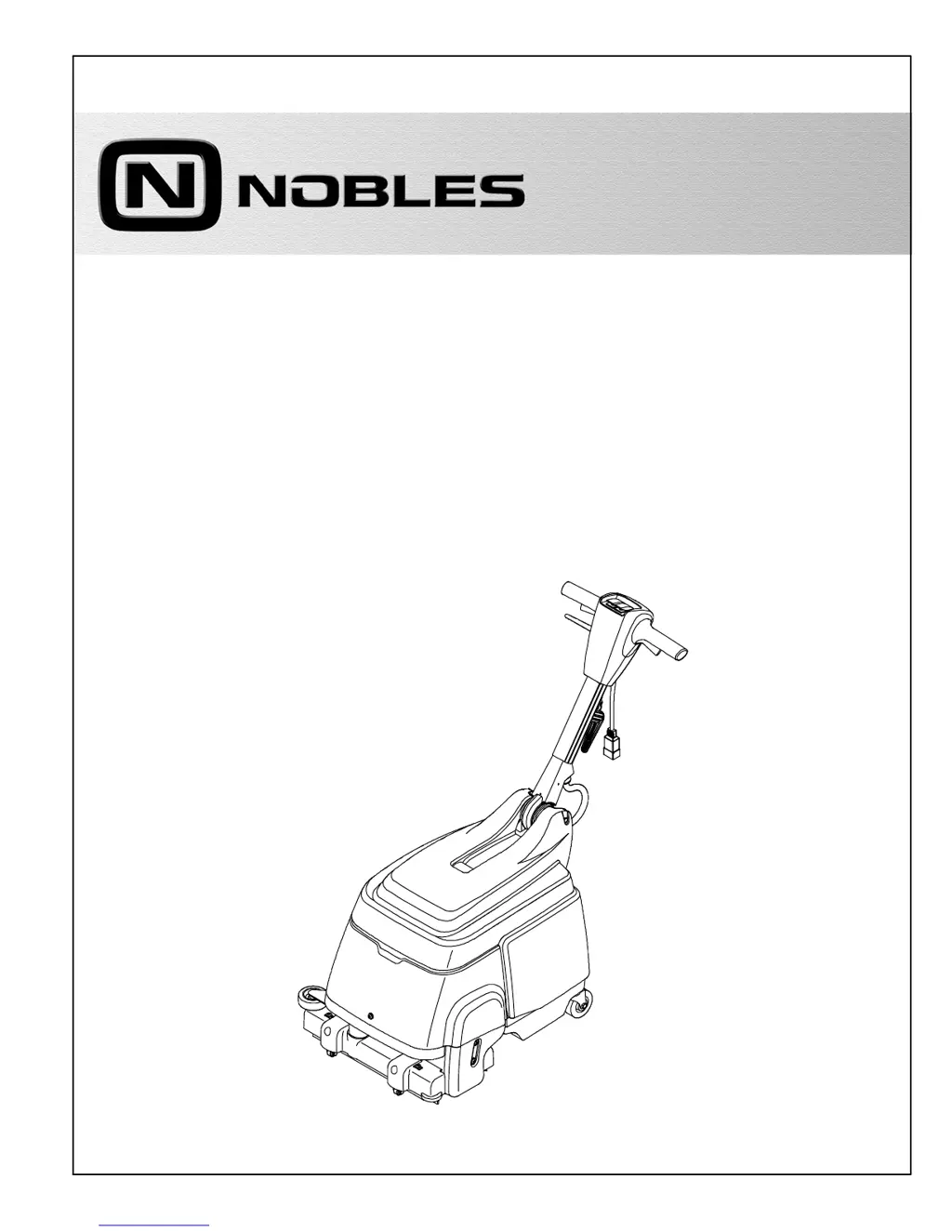

Nobles SPEED SCRUB - User Manual

Other manuals for Nobles SPEED SCRUB

Service Information Manual51 pages

Specifications1 page

Brochure2 pages

Questions and Answers

J
John MayerNov 21, 2025
Why is my Nobles Floor Machine not picking up water?
- G
  garciayvetteNov 21, 2025
  If your Nobles Floor Machine isn't picking up water effectively, there are several potential causes. First, check if the recovery tank is full and drain it if necessary. Ensure the drain hose cap is tight and the float shut-off screen within the recovery tank is free from clogs—clean it if needed. Inspect the squeegee assembly for any blockages and clean them out. Examine the squeegee blades for wear; replace or rotate them as necessary, and adjust the squeegee blade height if the deflection is incorrect. Verify that all vacuum hose connections are secure and that the vacuum hose itself isn't clogged or damaged; remove any debris or replace the hose if damaged. Make sure the recovery tank cover is correctly positioned and that its seal isn't damaged—replace the seal if it is. Finally, ensu...
W
William RamosAug 25, 2025
What to do if Nobles SPEED SCRUB Floor Machine has poor water pickup?
- R
  Roger DominguezAug 26, 2025
  If you're experiencing poor water pickup with your Nobles Floor Machine, several factors could be at play. First, ensure that the scrubbing mode is correctly set. If the squeegee blades are clogged, clean any debris from them. Worn or damaged squeegee blades should be replaced. Also, check for a clogged shut-off float and clean any debris. Similarly, inspect the vacuum intake screen for clogs and clean it as needed. Finally, worn tank cover gaskets should be replaced to ensure a proper seal.
M
michaelduranAug 26, 2025
How to fix little or no spray from Nobles SPEED SCRUB?
- M
  Megan WelchAug 26, 2025
  If your Nobles Floor Machine is showing little or no spray, start by checking the solution tank and refilling it if it's empty. A clogged spray tip can also cause this issue, so try cleaning or replacing the tip. Ensure the spray tip angle is properly adjusted. Clean any debris from the solution hose screen.
E
erodriguezAug 27, 2025
Why is my Nobles Scrubber not turning on?
- F
  floydrachelAug 27, 2025
  Your Nobles Scrubber might not be turning on due to several reasons. The batteries may be discharged, so try charging them. The emergency-stop button might be activated; turn it clockwise to reset. Also, check for a tripped main circuit breaker and reset the 10A breaker if necessary. A blown 100A main fuse could also be the cause, so replace it if needed. Finally, check if the battery cable is loose and tighten it.
S
Sabrina HernandezAug 29, 2025
What to do if the brush motor won't start on my Nobles Scrubber?
- J
  John WolfeAug 29, 2025
  If the brush motor on your Nobles Scrubber isn't working, first ensure the scrub head is lowered to the floor. Check if the batteries are discharged and charge them if needed. Also, verify that the battery meter lockout isn't activated, and recharge the batteries if it is. Another potential cause is a tripped brush motor circuit breaker; reset the 25A circuit breaker button.
J
Jonathan GilesSep 22, 2025
Why is my Nobles SPEED SCRUB having poor scrubbing performance?
- J
  Jeremiah DavisSep 22, 2025
  If your Nobles Floor Machine isn't scrubbing well, the brush might be worn and need replacement. It's also possible that you're using the wrong type of brush.
J
Juan WyattSep 16, 2025
How to fix on-board battery charger that will not operate in Nobles Floor Machine?
- J
  Jessica Sanchez DDSSep 17, 2025
  If the on-board battery charger of your Nobles Floor Machine isn't working, first check the plug connection to the power supply. If that's not the issue, the charger fuse might be faulty and need replacement. Another possibility is a faulty power supply cord, which would also need replacement. Also, an error may have been detected; in this case, refer to the On-board Battery Charger Error Codes.
C
Charles BakerSep 18, 2025
What to do if the brush does not spin on my Nobles SPEED SCRUB Floor Machine?
- E
  Emily ParksSep 18, 2025
  If your Nobles Floor Machine brush isn't spinning, it could be due to a tripped circuit breaker. Unplug the power cord and inspect the brush for any obstructions. Then, reset the 5 amp circuit breaker button.
J
Jill ClementsSep 8, 2025
Why is the brush motor not working on my Nobles SPEED SCRUB?
- E
  Edgar SheaSep 8, 2025
  If the brush motor on your Nobles Floor Machine isn't working, make sure the scrub head is lowered to the floor. If the battery meter lockout is activated, recharge the batteries. Check if the brush motor circuit breaker has tripped and reset it if necessary.
M
Matthew ArcherSep 5, 2025
How to troubleshoot a Nobles SPEED SCRUB that will not operate?
- D
  Donald WeberSep 5, 2025
  If your Nobles Floor Machine won't start, consider these potential causes: * Ensure that the triggers are fully pulled. * Check if the emergency-stop button is activated; if so, turn it clockwise to reset. * Verify that the batteries are adequately charged; if not, charge them. * Inspect the batteries for any faults and replace them if necessary. * Confirm that the battery cables are securely tightened. * Check the main fuse and replace it if it's blown.
