Nobles SS2001E - Page 29

STANDARD PARTS
Speed Scrub 1701/2001/2400 (1 1--97)
29

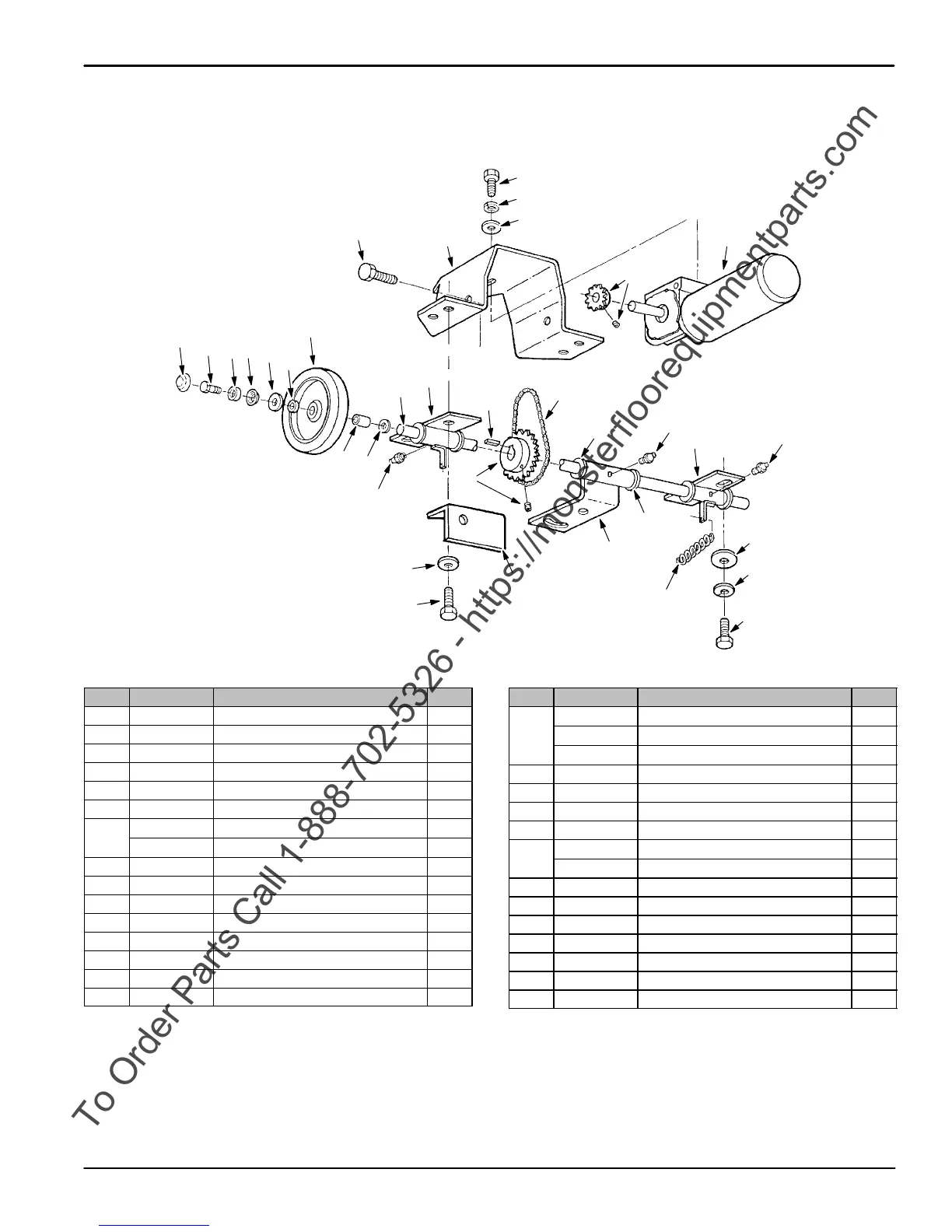

WHEEL AXLE ASSEMBLY (AUTOMATIC DRIVE) -- 2400
5
1
28
7
6
27
26
25
24
22
21
23
24
15
20
12
18
16
17
14
13
15
15
14
12
11
10
9
8
19
9
8
2
3
4
REF PART # DESCRIPTION QTY.
1 140236 SCREW, 1/2--13X1--1/4 2
2 140553 SCREW, 1/4--20X1/2 4
3 140016 WASHER, LOCK 4
4 140000 WASHER, FLAT 4
5 230879 PLATE, MOTOR MOUNT 1
6 230352 SPROCKET, W/SET SCRW 1
7
130474 MOTOR, DRIVE 24V 1
190750 --BRUSH CARD 1
8 140237 SCREW, 1/2--13X1 4
9 140024 WASHER, LOCK 4
10 140045 WASHER, FLAT 2
11 140433 SPRING 1
12 230878 BRACKET, AXLE W/BEARINGS 2
13 230880 MOUNT, SQUEEGEE 1
14 14011 1 BEARING, AXLE 2
15 150015 FITTING, GREASE 3
REF PART # DESCRIPTION QTY.
16
602527 CHAIN, #35 ROLLER 1.34ft
240089 LINK, CONNECTING 1
240090 LINK, OFF SET 1
17 240069 SPROCKET, DRIVE WHEEL 1
18 140628 KEY, WHEEL SPROCKET 1
19 230928 SHIELD, CHAIN 1
20 230877 AXLE, DRIVE SHAFT 1
∇21
700821 ASM., WHEEL, R.H. 1
700820 ASM., WHEEL, L.H. 1
Y22 140115 SEAL, BEARING 4
Y23 140110 BEARING 2
24 140047 WASHER, FLAT 2
25 140048 WASHER, FOR 150210 2
26 140015 WASHER, LOCK 2
27 140559 SCREW, 5/16--18X1/2 2
28 150210 CAP, WHEEL 2
∇=Assembly
Y=Included in assembly
