OPTIONS - OPCIONES - ÉQUIPEMENT AU CHOIX
Typhoon EV 1592/1512 (08--07)
41

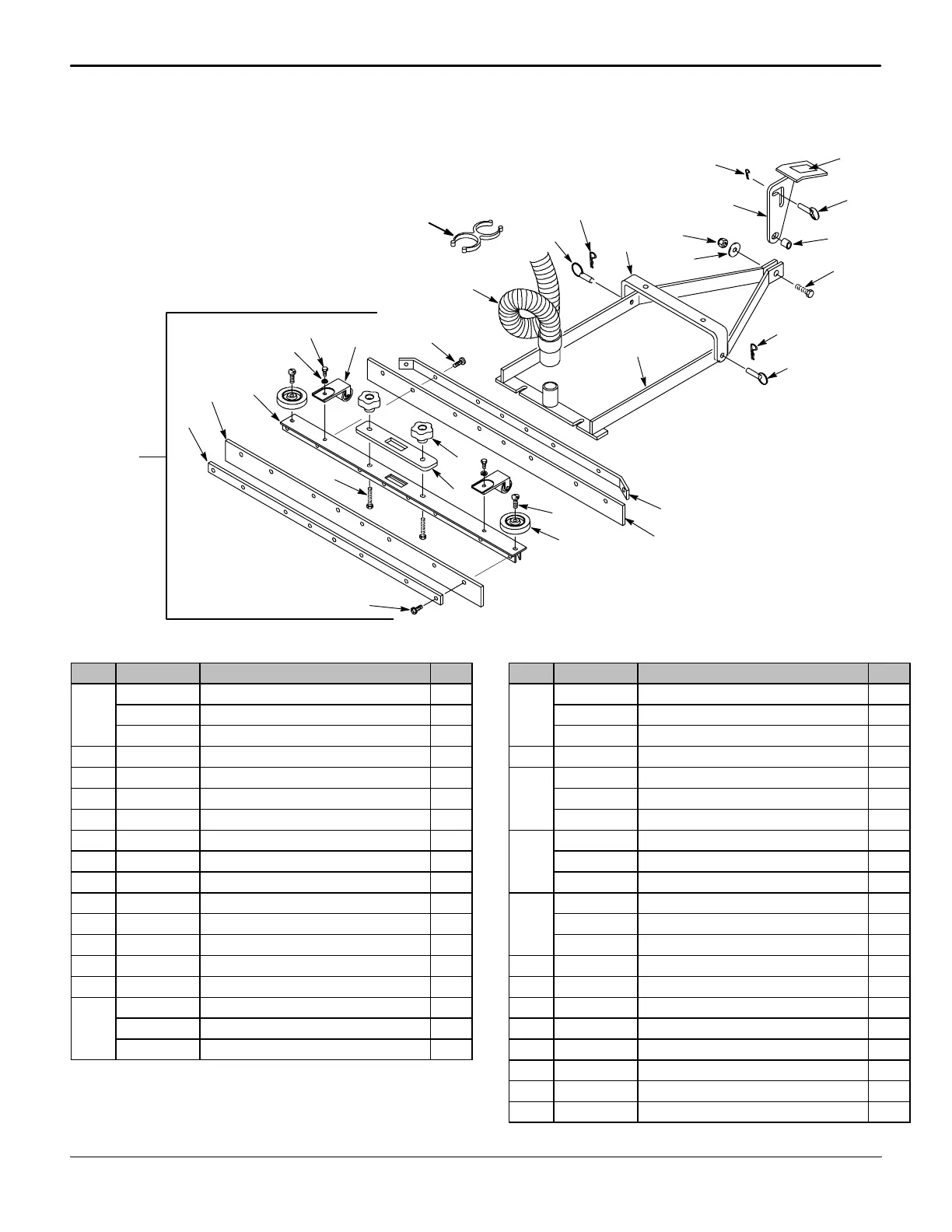

SQUEEGEE ASSEMBLY GROUP / CONJUNTO PALETA / GROUPE DE LA RACLETTE
10
14
23
17
16
15
21
24
26
25
18
20
22
19
11
1
3
8
9
8
9
4
5
6
7
2
13
18
19
8
9
12
REF PART # DESCRIPTION QTY.
∇ 190108 DSQUEEGEE KIT 27 in / 685 mm 1
190972 DSQUEEGEE KIT 34 in / 863 mm 1
190958 DSQUEEGEE KIT 40 in / 1016 mm 1
Y 1 230453.BK WELDMENT, SQUEEGEE LIFT 1
Y 2 230456 PEDAL, LIFT 1
Y 3 230454 BRACKET, SQUEEGEE MOUNT 1
Y 4 611048 SCREW, HEX .38--16X1.25 1
Y 5 140925 SPACER, 3/16 1
Y 6 140028 WASHER, FLAT 3/8 1
Y 7 59156 NUT, HEX LOCK .38--16 NL 1
Y 8 630258 PIN, CLEVIS 3
Y 9 612254000 PIN, HAIR 3
Y 10 102560 DPAD, NON--SLIP 1.62 SQ. 1
Y 11 603547 DHOSE, VACUUM, 1.50IDX46.0L BLK 1
Y 12 1014079 DCLIP, GRIP, HOSE, 1.50ID DBL, BLK 1
Y∇13 602831 DASM., SQUEEGEE 27 in / 685 mm 1
603494 DASM., SQUEEGEE 34 in / 863 mm 1
603496 DASM., SQUEEGEE 40 in / 1016 mm 1
∇ ASSEMBLY / CONJUNTO / ENSEMBLE
Y INCLUDED IN ASSEMBLY / INCLUIDO A CONJUNTA / Y COMPRIS EN
ENSEMBLE
D RECOMMENDED STOCK ITEM / PIEZAS RECOMENDADAS EN ALMACÉN /
ELÉMENTS DE STOCK RECOMMANDÉS
REF PART # DESCRIPTION QTY.
YY 14 230727.BK CHANNEL, SQUEEGEE 27 in/ 685 mm 1
230682.BK CHANNEL, SQUEEGEE 34 in/ 863 mm 1
230692.BK CHANNEL, SQUEEGEE 40 in/ 1016 mm 1
YY 15 100150 DGASKET, SQUEEGEE 1
YY 16 230725.BK PLATE, REAR 27 in / 685 mm 1
230669.BK PLATE, REAR 34 in / 863 mm 1
230685.BK PLA TE, REAR 40 in / 1016 mm 1
YY 17 230723.BK PLATE, FRONT 27 in / 685 mm 1
230670.BK PLATE, FRONT 34 in / 863 mm 1
230686.BK PLA TE, FRONT 40 in / 1016 mm 1
YY 18 603659 DBLADE, SQU EEGEE 27 in / 685 mm 2
603661 DBLADE, SQUEEGEE 34 in / 863 mm 2
603662 DBLADE, SQUEEGEE 40 in / 1016 mm 2
YY 19 605975 SCREW , 10-24X1/2 TRSPHL SEM 18-28
YY 20 101 1094 DKNOB, STAR, 1.50D 5 EAR 2
YY 21 140221 SCREW , HEX .31--18X1.25 2
YY 22 1014918AM DWHEEL, RUBBER 3” DIA 2
YY 23 140799 SCREW , .31--18X1.50 TRSPHL 2
YY 24 700844 DASM., SQUEEGEE ROLLER 2
YY 25 140226 SCREW, .31--18X0.62 HEX 2
YY 26 140015 WASHER, LOCK, SPLIT 0.31 2
